1. Slide 1

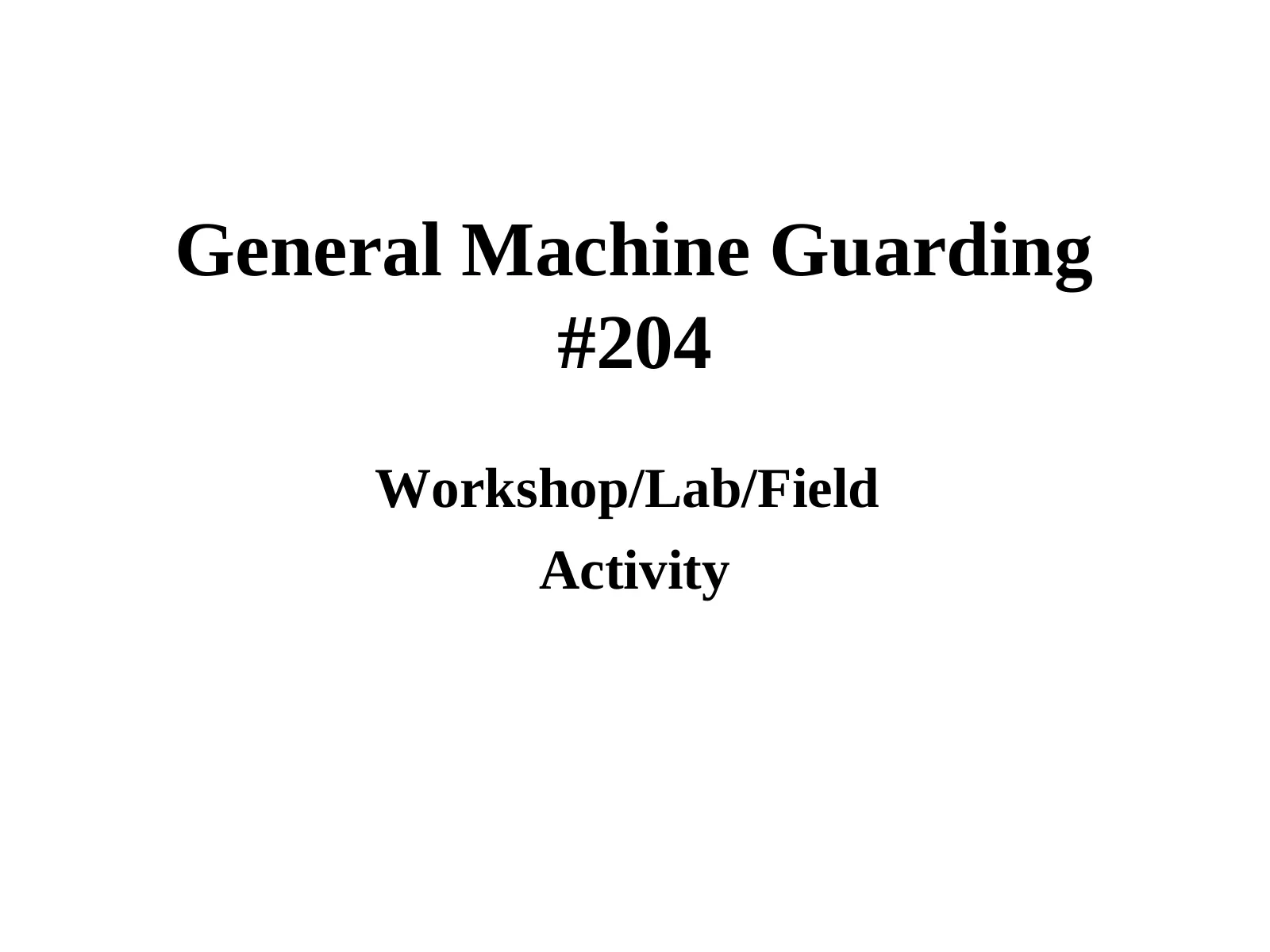

   General Machine Guarding

   • #204
   • Workshop/Lab/Field
   • Activity
2. Slide 2

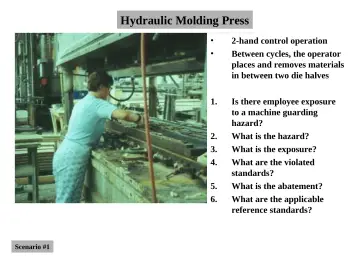

   Hydraulic Molding Press

   • 2-hand control operation Between cycles, the operator places and removes materials in between two die halves
   • Is there employee exposure to a machine guarding hazard?
   • What is the hazard?
   • What is the exposure?
   • What are the violated standards?
   • What is the abatement?
   • What are the applicable reference standards?
3. Slide 3

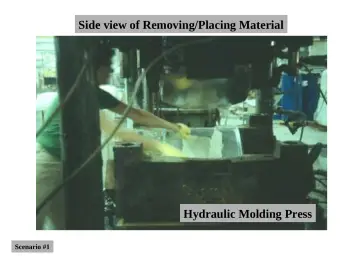

   Side view of Removing/Placing Material

   • Hydraulic Molding Press
4. Slide 4

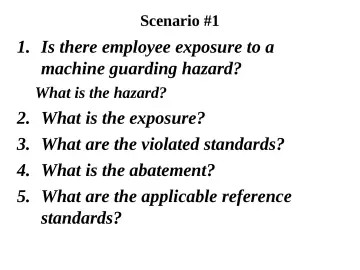

   Scenario #1

   • 1. Is there employee exposure to a machine guarding hazard?
   • What is the hazard?
   • 2. What is the exposure?
   • 3. What are the violated standards?
   • 4. What is the abatement?
   • 5. What are the applicable reference standards?
5. Slide 5

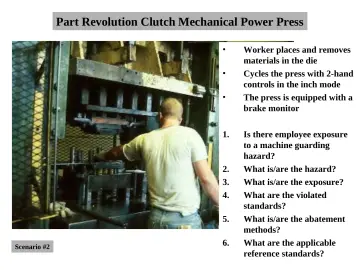

   Part Revolution Clutch Mechanical Power Press

   • Worker places and removes materials in the die
   • Cycles the press with 2-hand controls in the inch mode The press is equipped with a brake monitor
   • Is there employee exposure to a machine guarding hazard?
   • What is/are the hazard? What is/are the exposure? What are the violated standards?
   • What is/are the abatement methods?
6. Slide 6

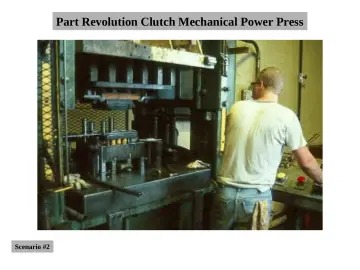

   Part Revolution Clutch Mechanical Power Press

7. Slide 7

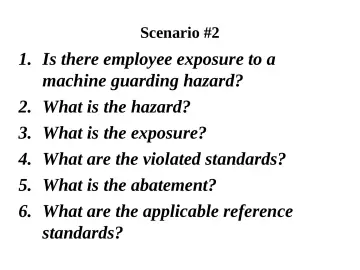

   Scenario #2

   • 1. Is there employee exposure to a machine guarding hazard?
   • 2. What is the hazard?
   • 3. What is the exposure?
   • 4. What are the violated standards?
   • 5. What is the abatement?
   • 6. What are the applicable reference standards?
8. Slide 8

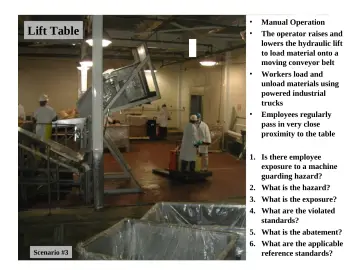

   Lift Table

   • Manual Operation
   • The operator raises and lowers the hydraulic lift to load material onto a moving conveyor belt Workers load and unload materials using powered industrial trucks
   • Employees regularly pass in very close proximity to the table
   • 1. Is there employee exposure to a machine guarding hazard?
   • 2. What is the hazard?
   • 3. What is the exposure?
   • 4. What are the violated standards?
   • 5. What is the abatement?
   • 6. What are the applicable reference standards?
9. Slide 9

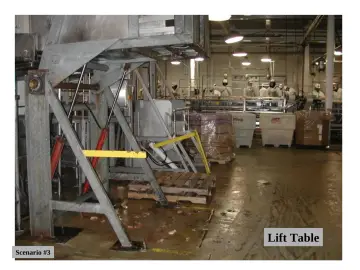

   • Lift Table
10. Slide 10

    Scenario #3

    • Is there employee exposure to a machine guarding hazard?
    • What is the hazard?
    • What is the exposure?
    • What are the violated standards?
    • What is the abatement?
11. Slide 11

    Is there employee exposure to a machine guarding hazard? What is the hazard?

    • What is the exposure?
    • What are the violated standards?
    • What is the abatement?
    • What are the applicable reference standards?

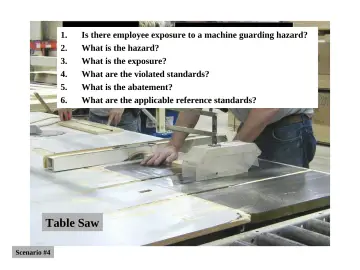

    • Table Saw
12. Slide 12

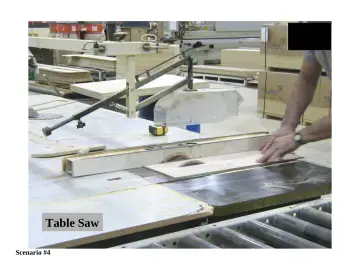

    • Table Saw
13. Slide 13

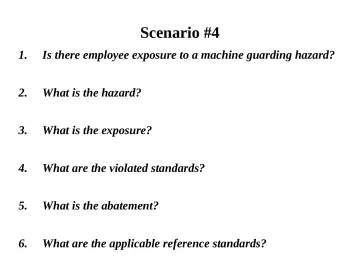

    Scenario #4

    • Is there employee exposure to a machine guarding hazard?
    • What is the hazard?
    • What is the exposure?
    • What are the violated standards?
    • What is the abatement?
14. Slide 14

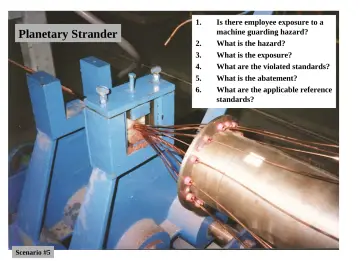

    Planetary Strander

    • Is there employee exposure to a machine guarding hazard?
    • What is the hazard?
    • What is the exposure?
    • What are the violated standards? What is the abatement?
    • What are the applicable reference standards?
15. Slide 15

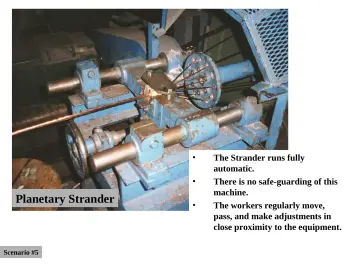

    Planetary Strander

    • The Strander runs fully automatic.
    • There is no safe-guarding of this machine.
    • The workers regularly move, pass, and make adjustments in close proximity to the equipment.
16. Slide 16

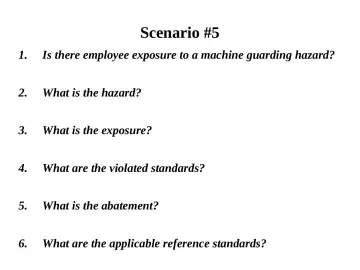

    Scenario #5

    • Is there employee exposure to a machine guarding hazard?
    • What is the hazard?
    • What is the exposure?
    • What are the violated standards?
    • What is the abatement?
