Health Hazards in Construction (Part 2)

The words on each slide as the author wrote them, read from the file by software so they can be searched. Layout, pictures and tables are not shown here: the slides above and the download are the original.

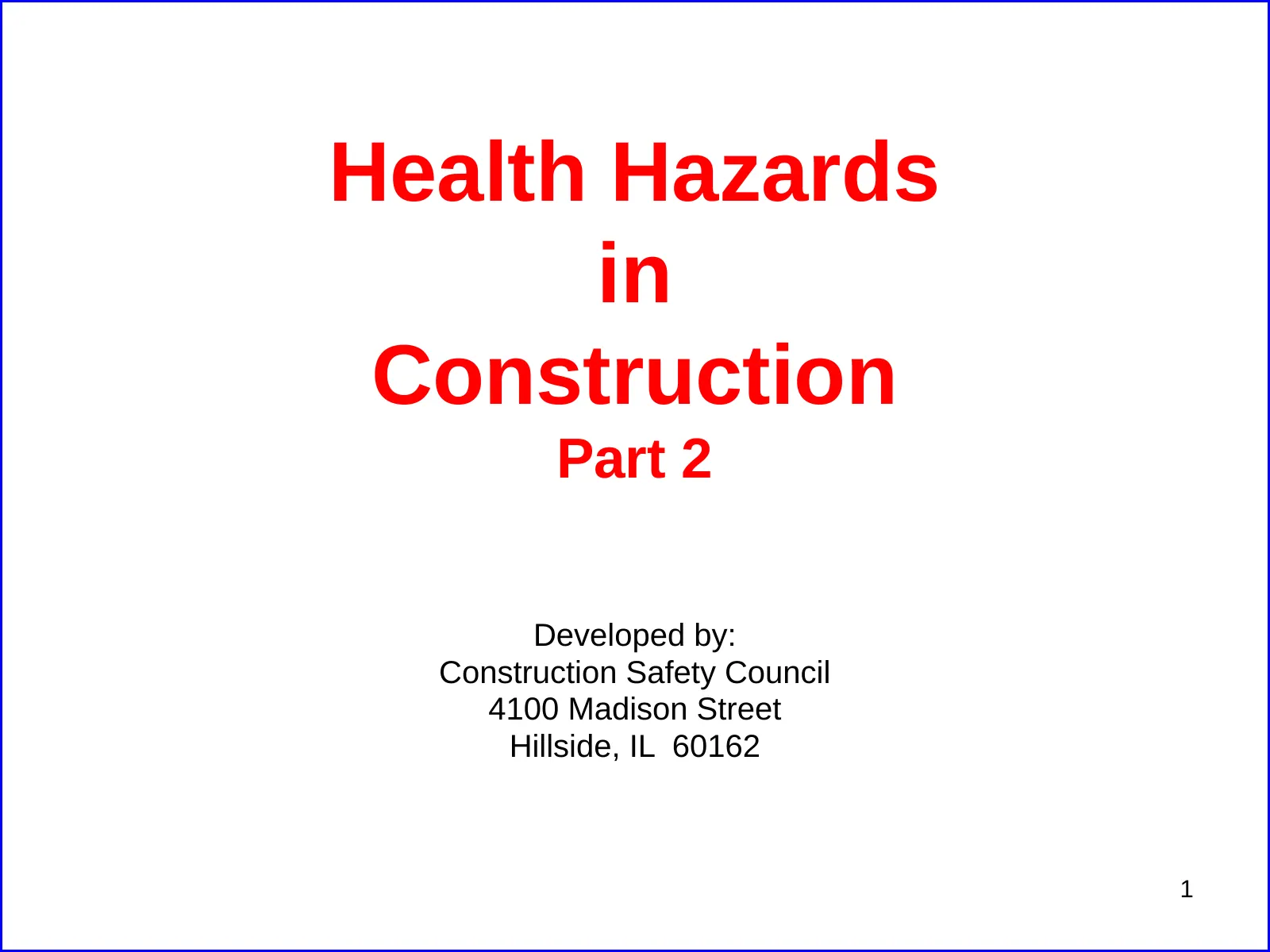

1. Slide 1

   Health Hazards in Construction

   • Part 2
   • Developed by:
   • Construction Safety Council
   • 4100 Madison Street
   • Hillside, IL 60162
2. Slide 2

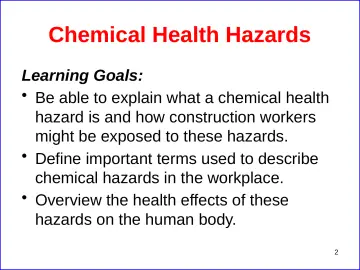

   Chemical Health Hazards

   • Learning Goals:
   • Be able to explain what a chemical health hazard is and how construction workers might be exposed to these hazards.
   • Define important terms used to describe chemical hazards in the workplace.
   • Overview the health effects of these hazards on the human body.

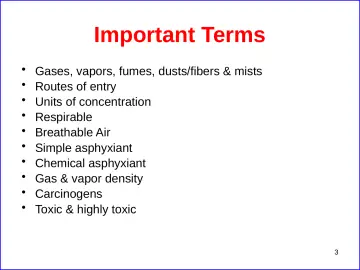

3. Slide 3

   Important Terms

   • Gases, vapors, fumes, dusts/fibers & mists Routes of entry
   • Units of concentration
   • Respirable
   • Breathable Air
   • Simple asphyxiant
   • Chemical asphyxiant
   • Gas & vapor density
   • Carcinogens
   • Toxic & highly toxic
4. Slide 4

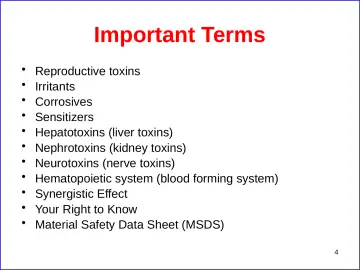

   Important Terms

   • Reproductive toxins
   • Irritants
   • Corrosives
   • Sensitizers
   • Hepatotoxins (liver toxins)
   • Nephrotoxins (kidney toxins)
   • Neurotoxins (nerve toxins)
   • Hematopoietic system (blood forming system) Synergistic Effect
   • Your Right to Know
   • Material Safety Data Sheet (MSDS)

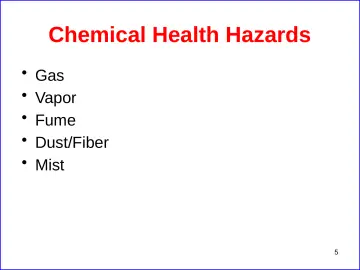

5. Slide 5

   Chemical Health Hazards

   • Gas
   • Vapor
   • Fume
   • Dust/Fiber
   • Mist
6. Slide 6

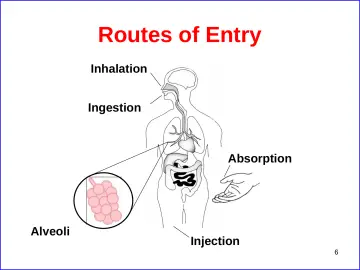

   Routes of Entry

   • Inhalation
   • Ingestion
   • Absorption
   • Alveoli
   • Injection
7. Slide 7

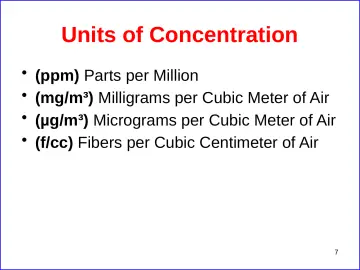

   Units of Concentration

   • (ppm) Parts per Million
   • (mg/m³) Milligrams per Cubic Meter of Air
   • (µg/m³) Micrograms per Cubic Meter of Air
   • (f/cc) Fibers per Cubic Centimeter of Air

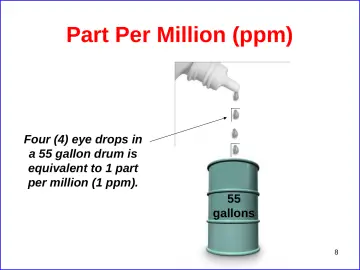

8. Slide 8

   Part Per Million (ppm)

   • Four (4) eye drops in a 55 gallon drum is equivalent to 1 part per million (1 ppm).
   • 55 gallons

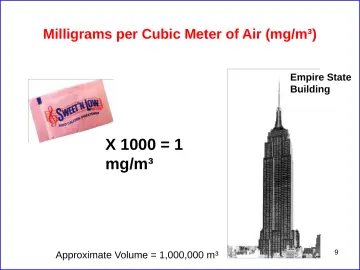

9. Slide 9

   Milligrams per Cubic Meter of Air (mg/m³)

   • Empire State Building
   • X 1000 = 1 mg/m³
   • Approximate Volume = 1,000,000 m³

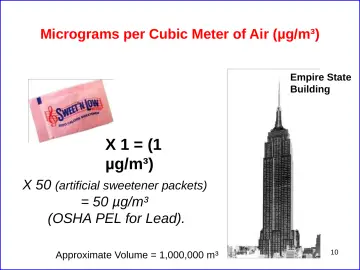

10. Slide 10

    Micrograms per Cubic Meter of Air (µg/m³)

    • Empire State Building
    • X 1 = (1 µg/m³)
    • X 50 (artificial sweetener packets)
    • = 50 µg/m³
    • (OSHA PEL for Lead).
    • Approximate Volume = 1,000,000 m³
11. Slide 11

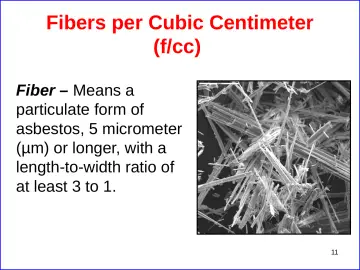

    Fibers per Cubic Centimeter (f/cc)

    • Fiber – Means a particulate form of asbestos, 5 micrometer (µm) or longer, with a length-to-width ratio of at least 3 to 1.

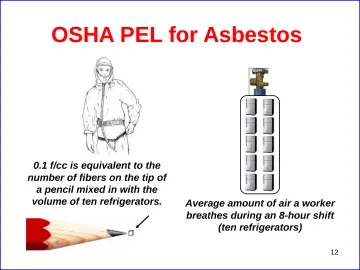

12. Slide 12

    OSHA PEL for Asbestos

    • 0.1 f/cc is equivalent to the number of fibers on the tip of a pencil mixed in with the volume of ten refrigerators.
    • Average amount of air a worker breathes during an 8-hour shift
    • (ten refrigerators)
13. Slide 13

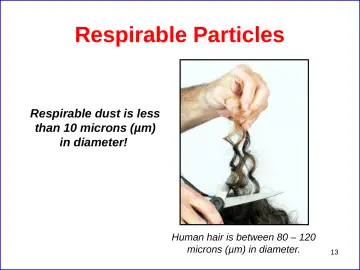

    Respirable Particles

    • Respirable dust is less than 10 microns (µm) in diameter!
    • Human hair is between 80 – 120 microns (µm) in diameter.

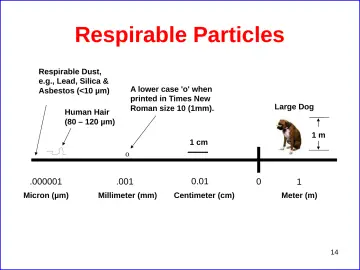

14. Slide 14

    Respirable Particles

    • Respirable Dust, e.g., Lead, Silica & Asbestos (<10 µm)
    • A lower case 'o' when printed in Times New Roman size 10 (1mm).
    • Human Hair
    • (80 – 120 µm)
    • Large Dog
    • 1 m
    • 1 cm
    • .000001
    • 0.01
    • Micron (µm)
    • Millimeter (mm)
    • Centimeter (cm)
    • Meter (m)

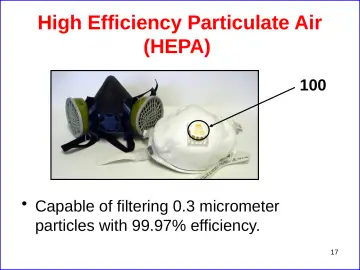

15. Slide 17

    High Efficiency Particulate Air

    • (HEPA)
    • Capable of filtering 0.3 micrometer particles with 99.97% efficiency.

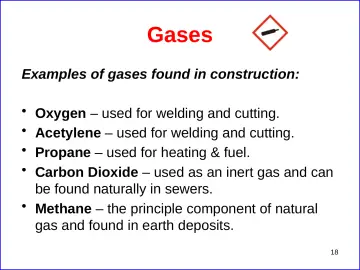

16. Slide 18

    Gases

    • Examples of gases found in construction:
    • Oxygen – used for welding and cutting.
    • Acetylene – used for welding and cutting.
    • Propane – used for heating & fuel.
    • Carbon Dioxide – used as an inert gas and can be found naturally in sewers.
    • Methane – the principle component of natural gas and found in earth deposits.

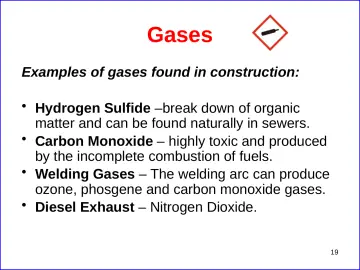

17. Slide 19

    Gases

    • Examples of gases found in construction:
    • Hydrogen Sulfide –break down of organic matter and can be found naturally in sewers.
    • Carbon Monoxide – highly toxic and produced by the incomplete combustion of fuels.
    • Welding Gases – The welding arc can produce ozone, phosgene and carbon monoxide gases.
    • Diesel Exhaust – Nitrogen Dioxide.

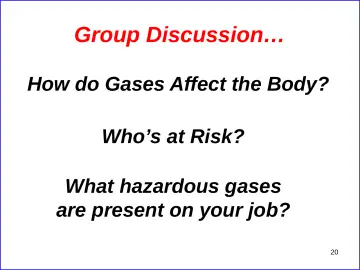

18. Slide 20

    Group Discussion…

    • How do Gases Affect the Body?
    • Who’s at Risk?
    • What hazardous gases are present on your job?

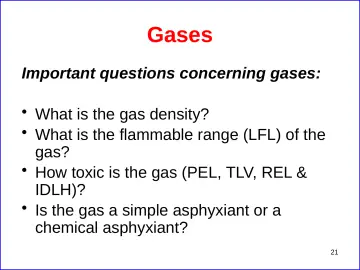

19. Slide 21

    Gases

    • Important questions concerning gases:
    • What is the gas density?
    • What is the flammable range (LFL) of the gas?
    • How toxic is the gas (PEL, TLV, REL & IDLH)?
    • Is the gas a simple asphyxiant or a chemical asphyxiant?

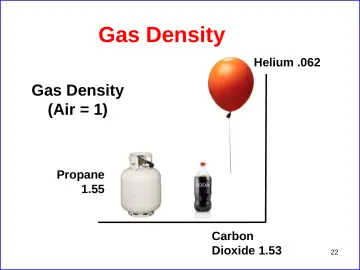

20. Slide 22

    Gas Density

    • Helium .062
    • Gas Density
    • (Air = 1)
    • Propane
    • 1.55
    • Carbon
    • Dioxide 1.53
21. Slide 23

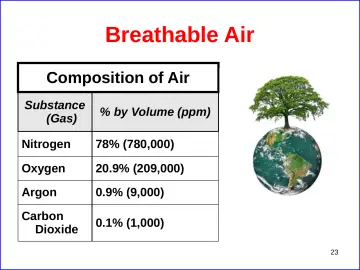

    Breathable Air

    • Composition of Air
    • Substance
    • (Gas)
    • % by Volume (ppm)
    • Nitrogen
    • 78% (780,000)
    • Oxygen
    • 20.9% (209,000)
    • Argon
    • 0.9% (9,000)
    • Carbon
    • Dioxide
    • 0.1% (1,000)

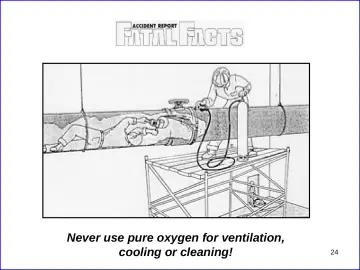

22. Slide 24
    • Never use pure oxygen for ventilation, cooling or cleaning!
23. Slide 25

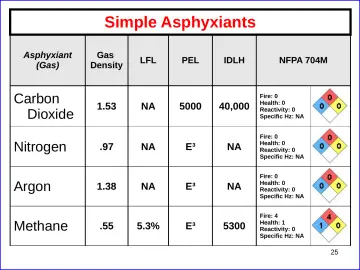

    Simple Asphyxiants

    • Asphyxiant
    • (Gas)
    • Carbon
    • Dioxide
    • Nitrogen
    • Argon
    • Methane
    • Gas
    • Density
    • 1.53
    • 1.38
    • LFL
    • NA
    • NA
    • NA
    • 5.3%
    • PEL
    • 5000
    • E³
    • E³
    • E³
    • IDLH
    • NFPA 704M
    • 40,000
    • Fire: 0
    • Health: 0
    • Reactivity: 0
    • Specific Hz: NA
    • NA
    • Fire: 0
    • Health: 0
    • NA
    • Fire: 0
    • Health: 0
    • 5300
    • Fire: 4
    • Health: 1
24. Slide 26

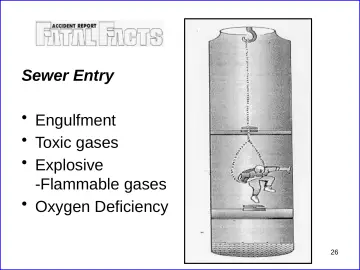

    Sewer Entry

    • Engulfment
    • Toxic gases
    • Explosive -Flammable gases
    • Oxygen Deficiency

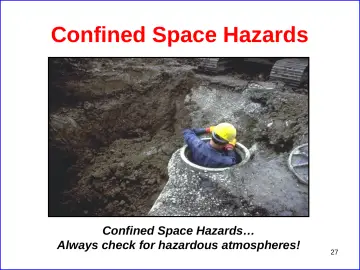

25. Slide 27

    Confined Space Hazards

    • Confined Space Hazards…
    • Always check for hazardous atmospheres!
26. Slide 29

    Exposure to simple asphyxiants is like suffocating in a plastic bag.

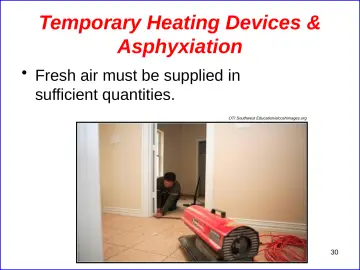

27. Slide 30

    Temporary Heating Devices &

    • Asphyxiation
    • Fresh air must be supplied in sufficient quantities.
    • OTI Southwest Education/elcoshimages.org
28. Slide 31

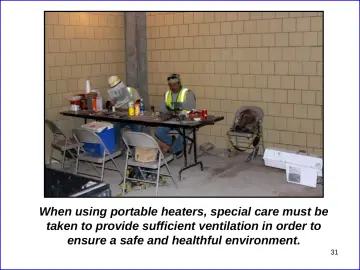

    • When using portable heaters, special care must be taken to provide sufficient ventilation in order to ensure a safe and healthful environment.
29. Slide 32

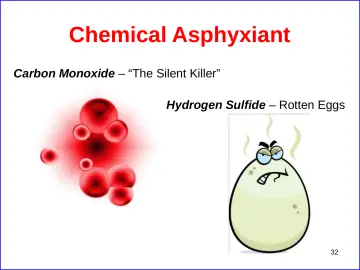

    Chemical Asphyxiant

    • Carbon Monoxide – “The Silent Killer”
    • Hydrogen Sulfide – Rotten Eggs
30. Slide 33

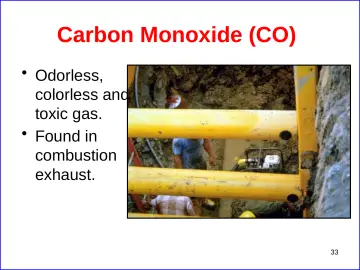

    Carbon Monoxide (CO)

    • Odorless, colorless and toxic gas.
    • Found in combustion exhaust.
31. Slide 34

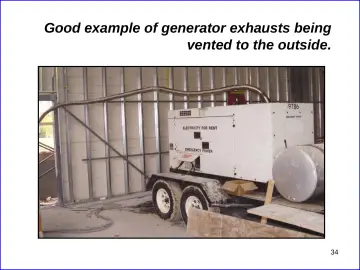

    Good example of generator exhausts being vented to the outside.

32. Slide 35

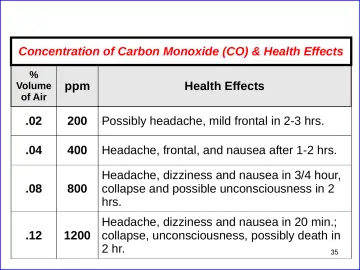

    Concentration of Carbon Monoxide (CO) & Health Effects

    • Volume of Air
    • ppm
    • Possibly headache, mild frontal in 2-3 hrs.
    • Headache, frontal, and nausea after 1-2 hrs.
    • Headache, dizziness and nausea in 3/4 hour, collapse and possible unconsciousness in 2 hrs.
    • Headache, dizziness and nausea in 20 min.;
    • 1200 collapse, unconsciousness, possibly death in 2 hr.
    • Health Effects
33. Slide 36

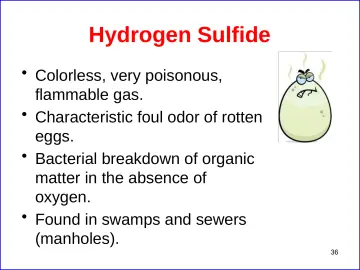

    Hydrogen Sulfide

    • Colorless, very poisonous, flammable gas.
    • Characteristic foul odor of rotten eggs.
    • Bacterial breakdown of organic matter in the absence of oxygen.
    • Found in swamps and sewers (manholes).

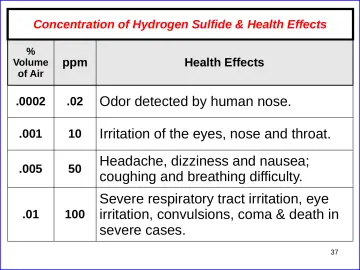

34. Slide 37

    Odor detected by human nose.

    • Concentration of Hydrogen Sulfide & Health Effects
    • Volume of Air
    • ppm
    • .0002
    • Irritation of the eyes, nose and throat.
    • Headache, dizziness and nausea; coughing and breathing difficulty.
    • Severe respiratory tract irritation, eye irritation, convulsions, coma & death in severe cases.
    • Health Effects

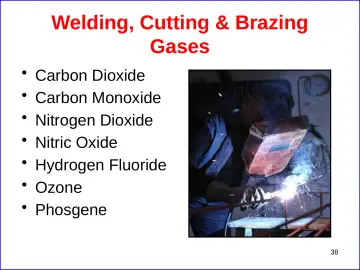

35. Slide 38

    Welding, Cutting & Brazing

    • Gases
    • Carbon Dioxide
    • Carbon Monoxide
    • Nitrogen Dioxide
    • Nitric Oxide
    • Hydrogen Fluoride
    • Ozone
    • Phosgene

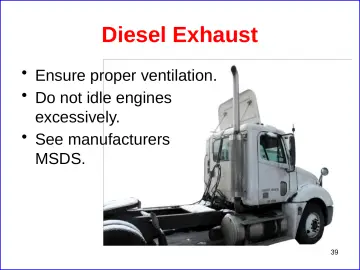

36. Slide 39

    Diesel Exhaust

    • Ensure proper ventilation.
    • Do not idle engines excessively.
    • See manufacturers MSDS.
37. Slide 40

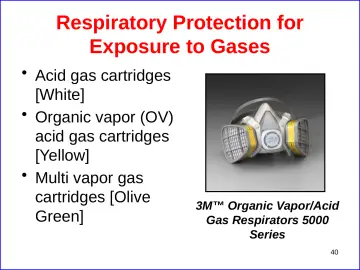

    Respiratory Protection for Exposure to Gases

    • Acid gas cartridges [White]
    • Organic vapor (OV) acid gas cartridges [Yellow]
    • Multi vapor gas cartridges [Olive Green]
    • 3M™ Organic Vapor/Acid
    • Gas Respirators 5000
    • Series

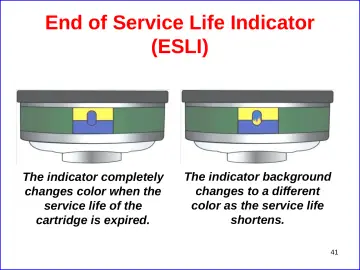

38. Slide 41

    End of Service Life Indicator

    • (ESLI)
    • The indicator completely changes color when the service life of the cartridge is expired.
    • The indicator background changes to a different color as the service life shortens.
39. Slide 42

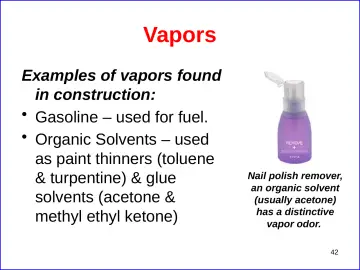

    Vapors

    • Examples of vapors found in construction:
    • Gasoline – used for fuel.
    • Organic Solvents – used as paint thinners (toluene & turpentine) & glue solvents (acetone & methyl ethyl ketone)
    • Nail polish remover, an organic solvent
    • (usually acetone) has a distinctive vapor odor.

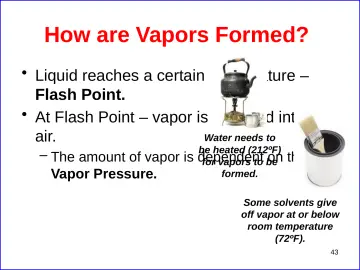

40. Slide 43

    How are Vapors Formed?

    • Liquid reaches a certain temperature –
    • Flash Point.
    • At Flash Point – vapor is released into the
    • Water needs to
    • air.
    • be heated (212ºF)
    • The amount of vapor is dependent
    • on the
    • for vapors to be formed.
    • Vapor Pressure.
    • Some solvents give off vapor at or below room temperature
    • (72ºF).
41. Slide 44

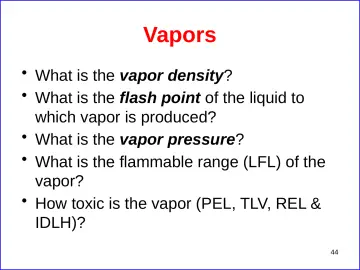

    Vapors

    • What is the vapor density?
    • What is the flash point of the liquid to which vapor is produced?
    • What is the vapor pressure?
    • What is the flammable range (LFL) of the vapor?
    • How toxic is the vapor (PEL, TLV, REL & IDLH)?
42. Slide 45

    Vapor Density

    • Vapor Density (Air = 1)
    • Gasoline 3 – 4
    • Turpentine 4.69

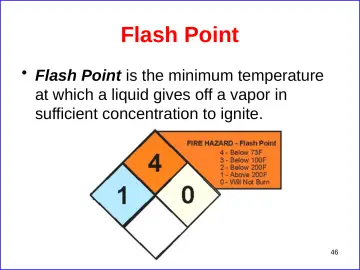

43. Slide 46

    Flash Point

    • Flash Point is the minimum temperature at which a liquid gives off a vapor in sufficient concentration to ignite.
44. Slide 47

    How do Solvents Affect the Body?

    • Dissolve
    • Vapors can
    • skin
    • be fats
    • inhaled.
    • and oils.
    • Skin
    • Central
    • dryness, nervous
    • cracking, system redness, damage. and blisters
    • Local
    • Systemic
    • health
    • health
    • effect
    • effect
45. Slide 48

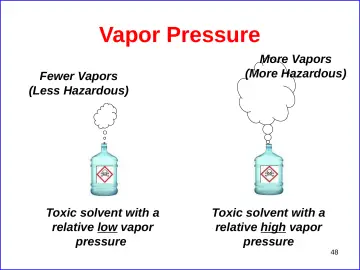

    Vapor Pressure

    • Fewer Vapors
    • (Less Hazardous)
    • Toxic solvent with a relative low vapor pressure
    • More Vapors
    • (More Hazardous)
    • Toxic solvent with a relative high vapor pressure

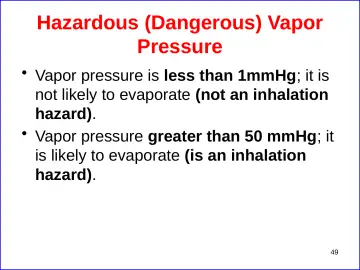

46. Slide 49

    Hazardous (Dangerous) Vapor

    • Pressure
    • Vapor pressure is less than 1mmHg; it is not likely to evaporate (not an inhalation hazard).
    • Vapor pressure greater than 50 mmHg; it is likely to evaporate (is an inhalation hazard).
47. Slide 50

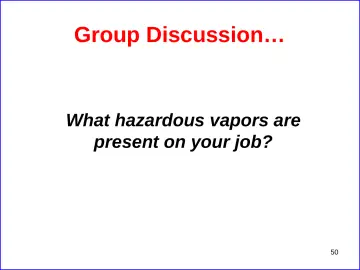

    Group Discussion…

    • What hazardous vapors are present on your job?
48. Slide 51

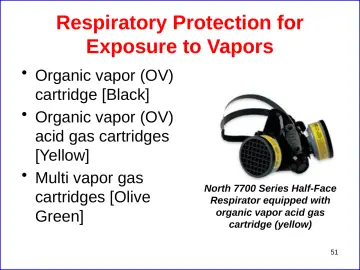

    Respiratory Protection for Exposure to Vapors

    • Organic vapor (OV) cartridge [Black]
    • Organic vapor (OV) acid gas cartridges [Yellow]
    • Multi vapor gas cartridges [Olive Green]
    • North 7700 Series Half-Face
    • Respirator equipped with organic vapor acid gas cartridge (yellow)
49. Slide 52

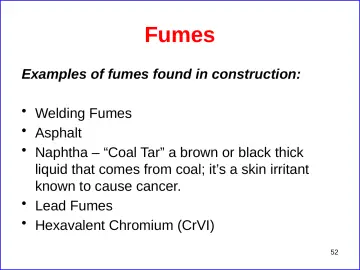

    Fumes

    • Examples of fumes found in construction:
    • Welding Fumes
    • Asphalt
    • Naphtha – “Coal Tar” a brown or black thick liquid that comes from coal; it’s a skin irritant known to cause cancer.
    • Lead Fumes
    • Hexavalent Chromium (CrVI)

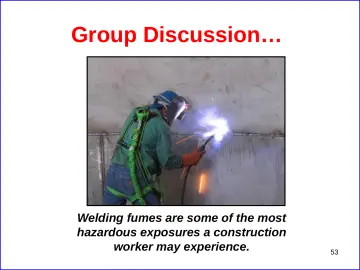

50. Slide 53

    Group Discussion…

    • Welding fumes are some of the most hazardous exposures a construction worker may experience.

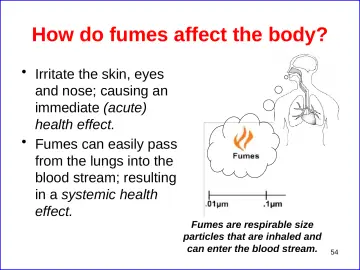

51. Slide 54

    How do fumes affect the body?

    • Irritate the skin, eyes and nose; causing an immediate (acute) health effect.
    • Fumes can easily pass from the lungs into the blood stream; resulting in a systemic health effect.
    • Fumes are respirable size particles that are inhaled and can enter the blood stream.
52. Slide 55

    Welding Fumes

    • Metal Fume Fever [Zinc (Galvanized Metal)]
    • Siderosis [Iron, Iron Oxide (Rust)]
    • Manganism (Manganese)
53. Slide 56

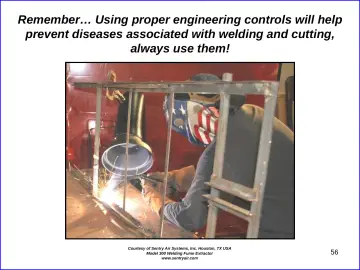

    • Remember… Using proper engineering controls will help prevent diseases associated with welding and cutting, always use them!
    • Courtesy of Sentry Air Systems, Inc. Houston, TX USA
    • Model 300 Welding Fume Extractor www.sentryair.com
54. Slide 57

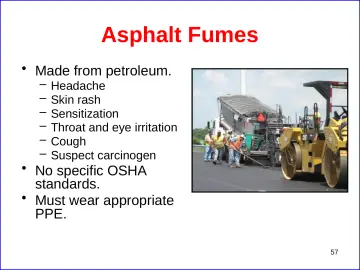

    Asphalt Fumes

    • Made from petroleum.
    • Headache
    • Skin rash
    • Sensitization
    • Throat and eye irritation
    • Cough
    • Suspect carcinogen
    • No specific OSHA standards.
    • Must wear appropriate
    • PPE.
55. Slide 58

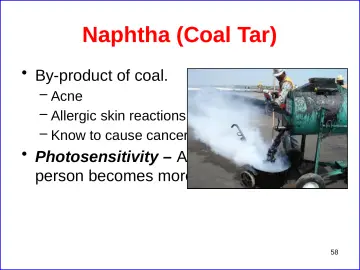

    Naphtha (Coal Tar)

    • By-product of coal.
    • Acne
    • Allergic skin reactions
    • Know to cause cancer
    • Photosensitivity – A condition in which a person becomes more sensitive to light.

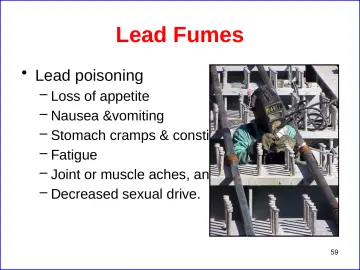

56. Slide 59

    Lead Fumes

    • Lead poisoning
    • Loss of appetite
    • Nausea &vomiting
    • Stomach cramps & constipation
    • Fatigue
    • Joint or muscle aches, anemia
    • Decreased sexual drive.
57. Slide 60

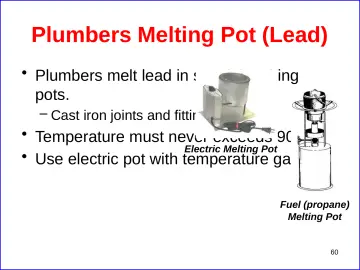

    Plumbers Melting Pot (Lead)

    • Plumbers melt lead in special melting pots.
    • Cast iron joints and fittings.
    • Temperature must never exceeds 900°F.
    • Electric Melting Pot
    • Use electric pot with temperature gage.
    • Fuel (propane)
    • Melting Pot
58. Slide 61

    Hexavalent Chromium

    • (CrVI) compounds
    • Dyes, paints, inks, and plastics.
    • Stainless steel & chromium metal.
    • Health effects:
    • Lung cancer
    • Irritation or damage to the nose, throat, and lungs.
    • Irritation or damage to

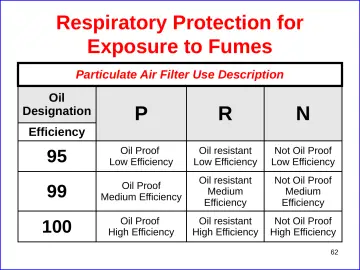

59. Slide 62

    Respiratory Protection for Exposure to Fumes

    • Particulate Air Filter Use Description
    • Oil
    • Designation
    • 95
    • Oil Proof
    • Low Efficiency
    • Oil resistant Low Efficiency
    • Not Oil Proof Low Efficiency
    • 99
    • Oil Proof
    • Medium Efficiency
    • Oil resistant
    • Medium
    • Efficiency
    • Not Oil Proof
    • Medium
    • Efficiency
    • 100
    • Oil Proof
    • High Efficiency
    • Oil resistant High Efficiency
    • Not Oil Proof High Efficiency
    • Efficiency
60. Slide 63

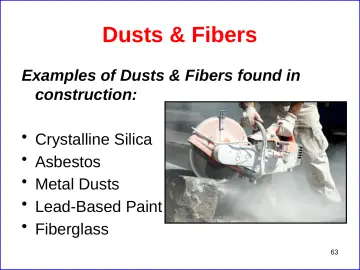

    Dusts & Fibers

    • Examples of Dusts & Fibers found in construction:
    • Crystalline Silica
    • Asbestos
    • Metal Dusts
    • Lead-Based Paint
    • Fiberglass
61. Slide 64

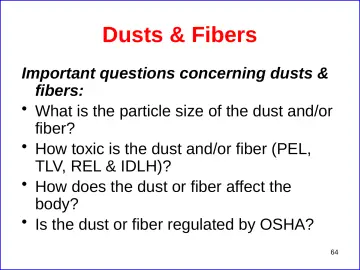

    Dusts & Fibers

    • Important questions concerning dusts & fibers:
    • What is the particle size of the dust and/or fiber?
    • How toxic is the dust and/or fiber (PEL, TLV, REL & IDLH)?
    • How does the dust or fiber affect the body?
    • Is the dust or fiber regulated by OSHA?
62. Slide 65

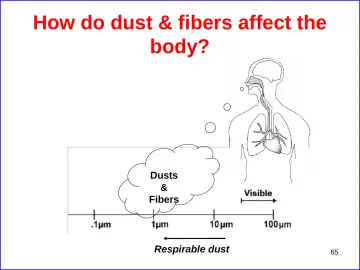

    How do dust & fibers affect the body?

    • Dusts Fibers
    • Respirable dust
63. Slide 66

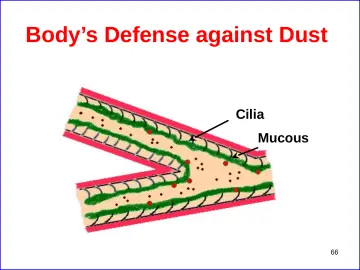

    Body’s Defense against Dust

    • Cilia
    • Mucous

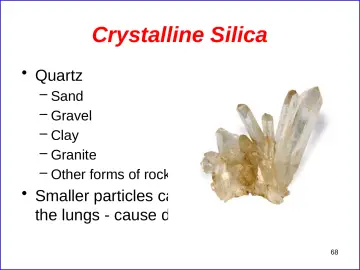

64. Slide 68

    Crystalline Silica

    • Quartz
    • Sand
    • Gravel
    • Clay
    • Granite
    • Other forms of rock
    • Smaller particles can be inhaled deep into the lungs - cause damage.
65. Slide 69

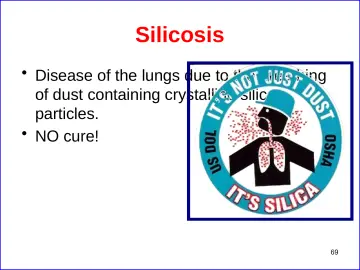

    Silicosis

    • Disease of the lungs due to the breathing of dust containing crystalline silica particles.
    • NO cure!
66. Slide 70

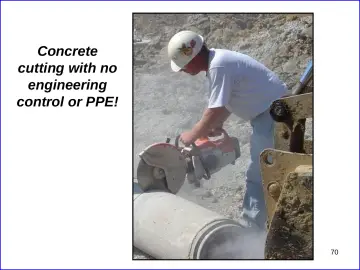

    Concrete cutting with no engineering control or PPE!

67. Slide 71

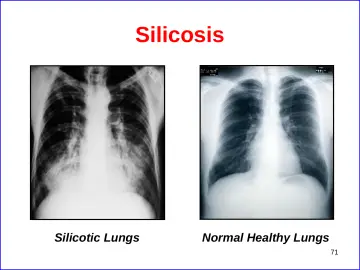

    Silicosis

    • Silicotic Lungs
    • Normal Healthy Lungs
68. Slide 72

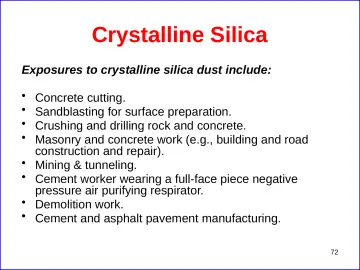

    Crystalline Silica

    • Exposures to crystalline silica dust include:
    • Concrete cutting.
    • Sandblasting for surface preparation.
    • Crushing and drilling rock and concrete.
    • Masonry and concrete work (e.g., building and road construction and repair).
    • Mining & tunneling.
    • Cement worker wearing a full-face piece negative pressure air purifying respirator.
    • Demolition work.
    • Cement and asphalt pavement manufacturing.
69. Slide 74

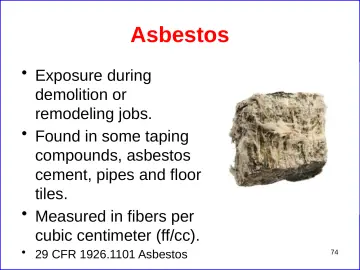

    Asbestos

    • Exposure during demolition or remodeling jobs.
    • Found in some taping compounds, asbestos cement, pipes and floor tiles.
    • Measured in fibers per cubic centimeter (ff/cc).
    • 29 CFR 1926.1101 Asbestos
70. Slide 75

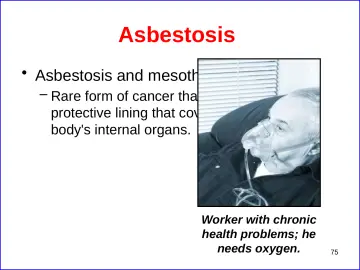

    Asbestosis

    • Asbestosis and mesothelioma
    • Rare form of cancer that develops from the protective lining that covers many of the body's internal organs.
    • Worker with chronic health problems; he needs oxygen.
71. Slide 76

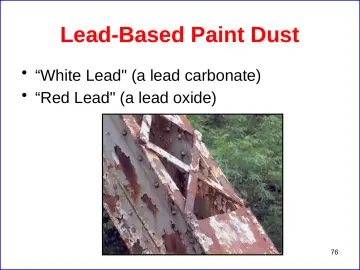

    Lead-Based Paint Dust

    • “White Lead" (a lead carbonate)
    • “Red Lead" (a lead oxide)
72. Slide 77

    EPA Certified Lead Renovator

    • All work performed under the supervision of certified lead renovators.
    • Post signs and warn occupants of buildings.
    • Barricade off work area and contain lead dust.
    • Clean all objects and surfaces.
73. Slide 78

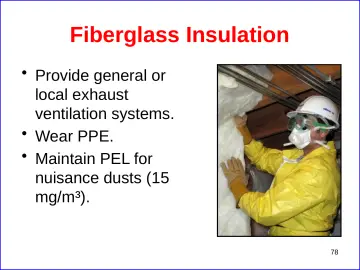

    Fiberglass Insulation

    • Provide general or local exhaust ventilation systems.
    • Wear PPE.
    • Maintain PEL for nuisance dusts (15 mg/m³).
74. Slide 79

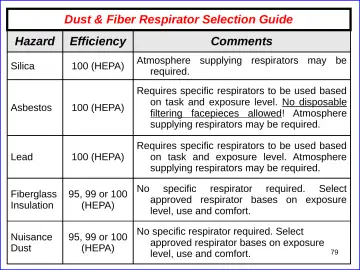

    Dust & Fiber Respirator Selection Guide Hazard Efficiency Comments

    • Silica
    • 100 (HEPA)
    • Atmosphere supplying respirators may be required.
    • 100 (HEPA)
    • Requires specific respirators to be used based on task and exposure level. No disposable filtering facepieces allowed! Atmosphere supplying respirators may be required.
    • Lead
    • 100 (HEPA)
    • Requires specific respirators to be used based on task and exposure level. Atmosphere supplying respirators may be required.
    • Fiberglass Insulation
    • 95, 99 or 100
    • (HEPA)
    • Nuisance
    • Dust
    • (HEPA)
    • Asbestos
    • No
    • specific respirator required. Select approved respirator bases on exposure level, use and comfort.
    • No specific respirator required. Select approved respirator bases on exposure
    • level, use and comfort.
75. Slide 80

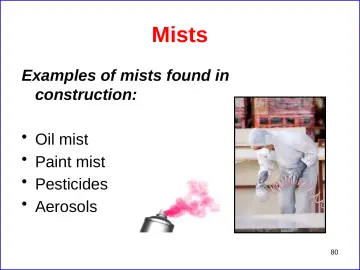

    Mists

    • Examples of mists found in construction:
    • Oil mist
    • Paint mist
    • Pesticides
    • Aerosols
76. Slide 81

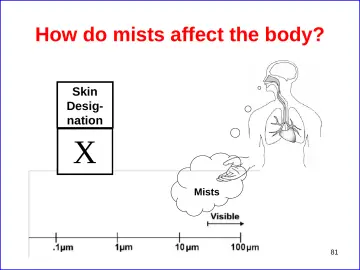

    How do mists affect the body?

    • Skin Desig-nation
    • Mists
77. Slide 82

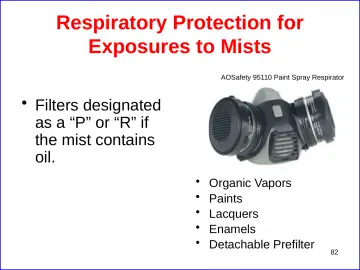

    Respiratory Protection for Exposures to Mists

    • AOSafety 95110 Paint Spray Respirator
    • Filters designated as a “P” or “R” if the mist contains oil.
    • Organic Vapors
    • Paints
    • Lacquers
    • Enamels
    • Detachable Prefilter

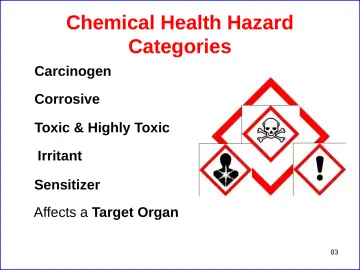

78. Slide 83

    Chemical Health Hazard Categories

    • Carcinogen
    • Corrosive
    • Toxic & Highly Toxic
    • Irritant
    • Sensitizer
    • Affects a Target Organ
79. Slide 84

    Reproductive Toxins

    • • Benzene
    • (mutagen)
    • Mutation
    • Cadmium and compounds (fertility & teratogen)
    • Permanent change of the genetic material in a
    • Chloroform (mutagen)
    • cell.
    • Lead and compounds (fertility, teratogen & mutagen)
    • • Teratogen
    • Mercury and compounds (fertility & teratogen)
    • Malformations of an embryo or fetus.
80. Slide 85

    Synergistic Effect

    • Two or more hazardous materials are present at the same time.
    • Smoking paralyses the body’s natural defense – cilia.
81. Slide 86

    Your Right to Know!

    • OSHA – Hazard Communication Standard (HCS)
    • Chemical manufacturer responsibilities
    • Labels
    • MSDS
82. Slide 87

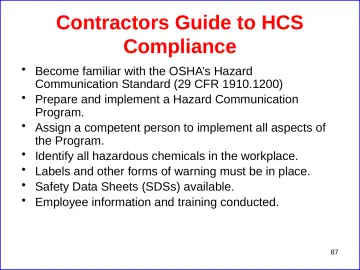

    Contractors Guide to HCS Compliance

    • Become familiar with the OSHA’s Hazard Communication Standard (29 CFR 1910.1200)
    • Prepare and implement a Hazard Communication Program.
    • Assign a competent person to implement all aspects of the Program.
    • Identify all hazardous chemicals in the workplace.
    • Labels and other forms of warning must be in place.
    • Safety Data Sheets (SDSs) available.
    • Employee information and training conducted.

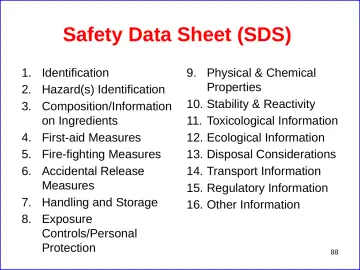

83. Slide 88

    Safety Data Sheet (SDS)

    • 1. Identification
    • 2. Hazard(s) Identification
    • 3. Composition/Information on Ingredients
    • 4. First-aid Measures
    • 5. Fire-fighting Measures
    • 6. Accidental Release Measures
    • 7. Handling and Storage
    • 8. Exposure Controls/Personal Protection
    • 9. Physical & Chemical Properties
    • 10. Stability & Reactivity
    • 11. Toxicological Information
    • 12. Ecological Information
    • 13. Disposal Considerations
    • 14. Transport Information
    • 15. Regulatory Information
    • 16. Other Information

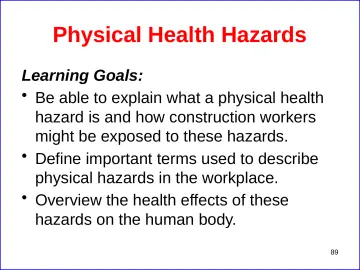

84. Slide 89

    Physical Health Hazards

    • Learning Goals:
    • Be able to explain what a physical health hazard is and how construction workers might be exposed to these hazards.
    • Define important terms used to describe physical hazards in the workplace.
    • Overview the health effects of these hazards on the human body.
85. Slide 90

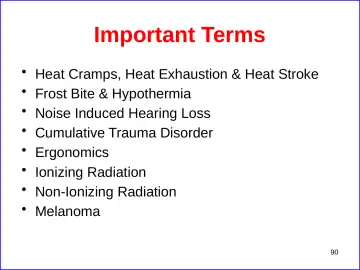

    Important Terms

    • Heat Cramps, Heat Exhaustion & Heat Stroke
    • Frost Bite & Hypothermia
    • Noise Induced Hearing Loss
    • Cumulative Trauma Disorder
    • Ergonomics
    • Ionizing Radiation
    • Non-Ionizing Radiation
    • Melanoma

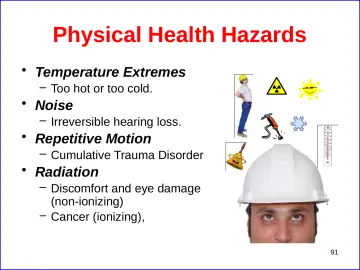

86. Slide 91

    Physical Health Hazards

    • Temperature Extremes
    • Too hot or too cold.
    • Noise
    • Irreversible hearing loss.
    • Repetitive Motion
    • Cumulative Trauma Disorder
    • Radiation
    • Discomfort and eye damage
    • (non-ionizing)
    • Cancer (ionizing),
87. Slide 92

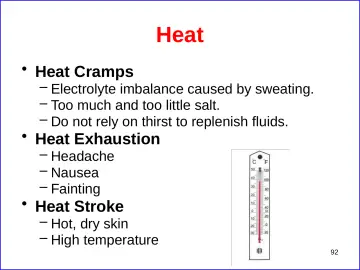

    Heat

    • Heat Cramps
    • Electrolyte imbalance caused by sweating.
    • Too much and too little salt.
    • Do not rely on thirst to replenish fluids.
    • Heat Exhaustion
    • Headache
    • Nausea
    • Fainting
    • Heat Stroke
    • Hot, dry skin
    • High temperature
88. Slide 94

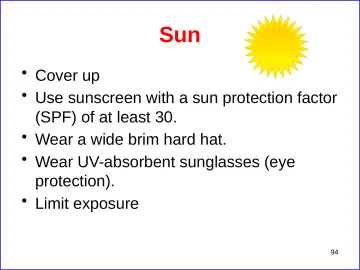

    Sun

    • Cover up
    • Use sunscreen with a sun protection factor (SPF) of at least 30.
    • Wear a wide brim hard hat.
    • Wear UV-absorbent sunglasses (eye protection).
    • Limit exposure
89. Slide 95

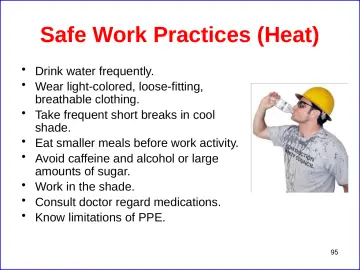

    Safe Work Practices (Heat)

    • Drink water frequently.
    • Wear light-colored, loose-fitting, breathable clothing.
    • Take frequent short breaks in cool shade.
    • Eat smaller meals before work activity.
    • Avoid caffeine and alcohol or large amounts of sugar.
    • Work in the shade.
    • Consult doctor regard medications.
    • Know limitations of PPE.
90. Slide 96

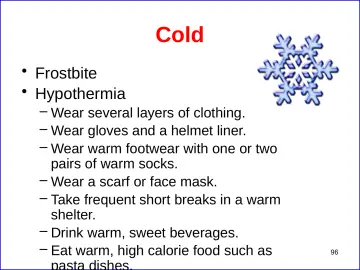

    Cold

    • Frostbite
    • Hypothermia
    • Wear several layers of clothing.
    • Wear gloves and a helmet liner.
    • Wear warm footwear with one or two pairs of warm socks.
    • Wear a scarf or face mask.
    • Take frequent short breaks in a warm shelter.
    • Drink warm, sweet beverages.
    • Eat warm, high calorie food such as
91. Slide 97

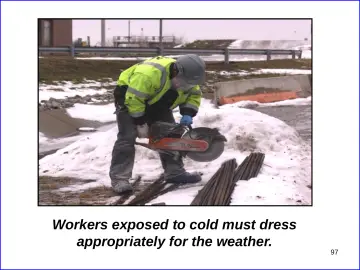

    • Workers exposed to cold must dress appropriately for the weather.

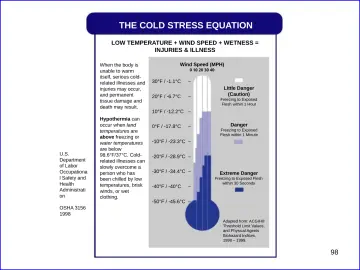

92. Slide 98

    THE COLD STRESS EQUATION

    • LOW TEMPERATURE + WIND SPEED + WETNESS =
    • INJURIES & ILLNESS
    • When the body is unable to warm itself, serious cold-related illnesses and injuries may occur, and permanent tissue damage and death may result.
    • U.S. Department of Labor Occupationa l Safety and Health Administrati on
    • Hypothermia can occur when land temperatures are above freezing or water temperatures are below 98.6°F/37°C. Cold-related illnesses can slowly overcome a person who has been chilled by low temperatures, brisk winds, or wet clothing.
    • Wind Speed (MPH)
    • 0 10 20 30 40
    • 30°F / -1.1°C
    • 20°F / -6.7°C
    • Little Danger
    • (Caution)
    • Freezing to Exposed Flesh within 1 Hour
    • 10°F / -12.2°C –
    • 0°F / -17.8°C
    • Danger
    • Freezing to Exposed Flesh within 1 Minute
    • -10°F / -23.3°C –
    • -20°F / -28.9°C –
    • -30°F / -34.4°C –
    • -40°F / -40°C
    • Extreme Danger
    • Freezing to Exposed Flesh within 30 Seconds
    • -50°F / -45.6°C –
    • OSHA 3156
    • 1998
    • Adapted from: ACGIH® Threshold Limit Values, and Physical Agents Biohazard Indices, 1998 – 1999.
93. Slide 99

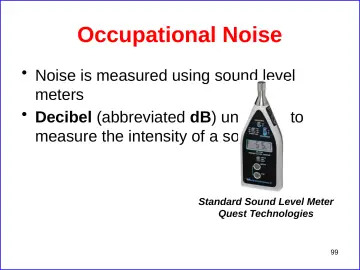

    Occupational Noise

    • Noise is measured using sound level meters
    • Decibel (abbreviated dB) unit used to measure the intensity of a sound.
    • Standard Sound Level Meter
    • Quest Technologies
94. Slide 100

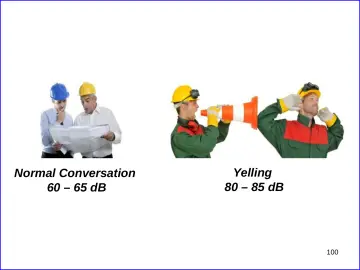

    Normal Conversation

    • 60 – 65 dB
    • Yelling
    • 80 – 85 dB
95. Slide 101

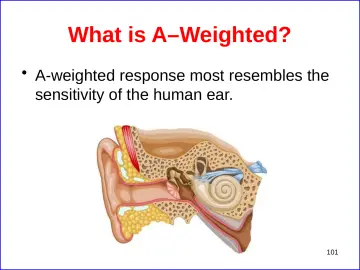

    What is A–Weighted?

    • A-weighted response most resembles the sensitivity of the human ear.
96. Slide 102

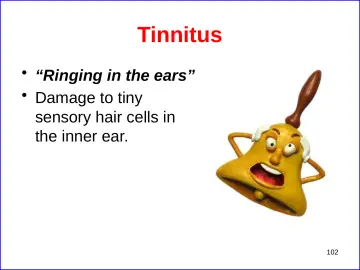

    Tinnitus

    • “Ringing in the ears”
    • Damage to tiny sensory hair cells in the inner ear.

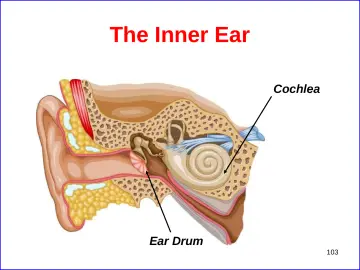

97. Slide 103

    The Inner Ear

    • Cochlea
    • Ear Drum

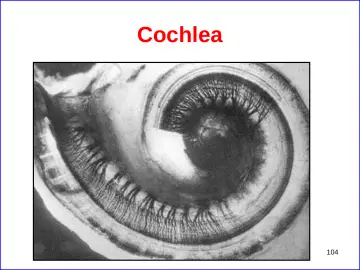

98. Slide 104

    Cochlea

99. Slide 105

    How Noise Damages the Ear

    • Like walking on grass.
100. Slide 107

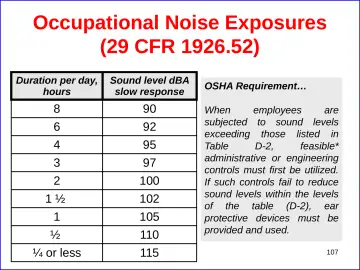

     Occupational Noise Exposures (29 CFR 1926.52)

     • Duration per day, hours
     • Sound level dBA slow response
     • 1 ½
     • ½
     • ¼ or less
     • 90 92 95 97 100 102 105 110 115
     • OSHA Requirement…
     • When
     • employees
     • are subjected to sound levels exceeding those listed in Table
     • D-2, feasible*
     • administrative or engineering controls must first be utilized.
     • If such controls fail to reduce sound levels within the levels of the table (D-2), ear protective devices must be provided and used.
101. Slide 108

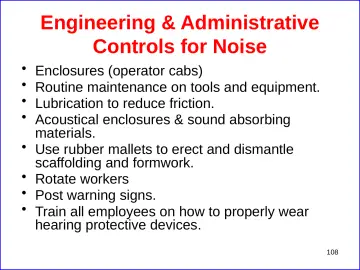

     Engineering & Administrative Controls for Noise

     • Enclosures (operator cabs)
     • Routine maintenance on tools and equipment.
     • Lubrication to reduce friction.
     • Acoustical enclosures & sound absorbing materials.
     • Use rubber mallets to erect and dismantle scaffolding and formwork.
     • Rotate workers
     • Post warning signs.
     • Train all employees on how to properly wear hearing protective devices.

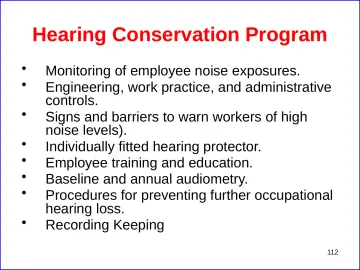

102. Slide 112

     Hearing Conservation Program

     • Monitoring of employee noise exposures. Engineering, work practice, and administrative controls.
     • Signs and barriers to warn workers of high noise levels).
     • Individually fitted hearing protector.
     • Employee training and education.
     • Baseline and annual audiometry.
     • Procedures for preventing further occupational hearing loss.
     • Recording Keeping

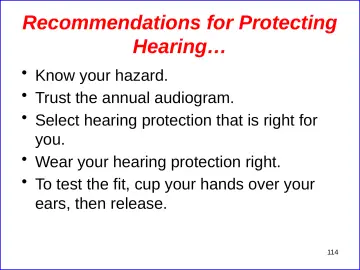

103. Slide 114

     Recommendations for Protecting

     • Hearing…
     • Know your hazard.
     • Trust the annual audiogram.
     • Select hearing protection that is right for you.
     • Wear your hearing protection right.
     • To test the fit, cup your hands over your ears, then release.
104. Slide 115

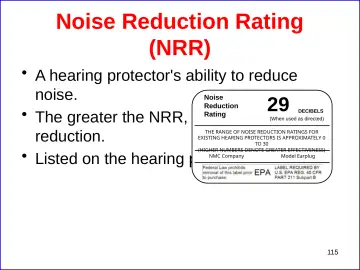

     Noise Reduction Rating (NRR)

     • A hearing protector's ability to reduce
     • Noise
     • noise.
     • Reduction
     • 29
     • Rating
     • The greater the NRR, the better the noise reduction.
     • Listed on the hearing protector box.
     • DECIBELS
     • (When used as directed)
     • THE RANGE OF NOISE REDUCTION RATINGS FOR EXISTING HEARING PROTECTORS IS APPROXIMATELY 0
     • TO 30
     • (HIGHER NUMBERS DENOTE GREATER EFFECTIVENESS)
     • NMC Company
     • Model Earplug
105. Slide 116

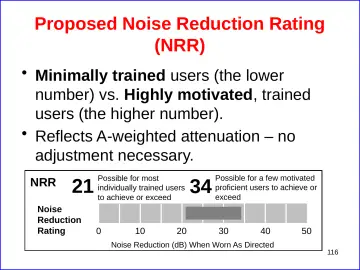

     Proposed Noise Reduction Rating (NRR)

     • Minimally trained users (the lower number) vs. Highly motivated, trained users (the higher number).
     • Reflects A-weighted attenuation – no adjustment necessary.
     • NRR
     • 21
     • Noise
     • Reduction
     • Rating
     • Possible for most individually trained users to achieve or exceed
     • 34
     • Possible for a few motivated proficient users to achieve or exceed
     • Noise Reduction (dB) When Worn As Directed
106. Slide 117

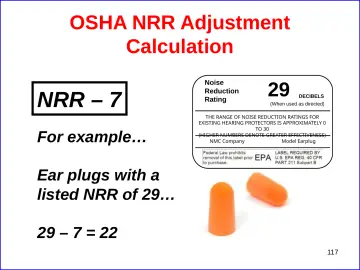

     NRR – 7

     • OSHA NRR Adjustment
     • Calculation
     • For example…
     • Noise
     • Reduction
     • Rating
     • 29
     • DECIBELS
     • (When used as directed)
     • THE RANGE OF NOISE REDUCTION RATINGS FOR EXISTING HEARING PROTECTORS IS APPROXIMATELY 0
     • TO 30
     • (HIGHER NUMBERS DENOTE GREATER EFFECTIVENESS)
     • NMC Company
     • Model Earplug
     • Ear plugs with a listed NRR of 29…
     • 29 – 7 = 22
107. Slide 118

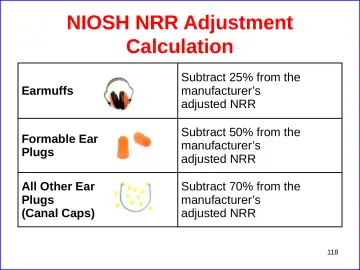

     NIOSH NRR Adjustment Calculation

     • Earmuffs
     • Subtract 25% from the manufacturer’s adjusted NRR
     • Formable Ear
     • Plugs
     • Subtract 50% from the manufacturer’s adjusted NRR
     • All Other Ear Plugs
     • (Canal Caps)
     • Subtract 70% from the manufacturer’s adjusted NRR
108. Slide 119

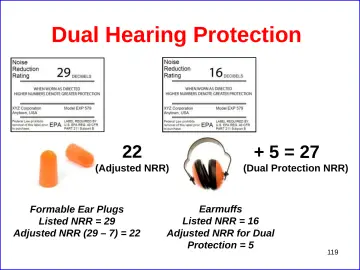

     Dual Hearing Protection

     • 22
     • + 5 = 27
     • (Adjusted NRR)
     • Formable Ear Plugs
     • Listed NRR = 29
     • Adjusted NRR (29 – 7) = 22
     • (Dual Protection NRR)
     • Earmuffs
     • Listed NRR = 16
     • Adjusted NRR for Dual
     • Protection = 5
109. Slide 120

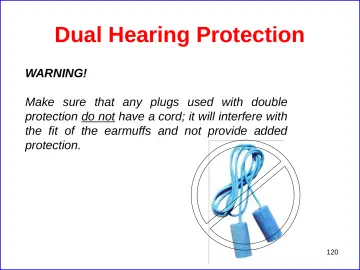

     Dual Hearing Protection

     • WARNING!
     • Make sure that any plugs used with double protection do not have a cord; it will interfere with the fit of the earmuffs and not provide added protection.

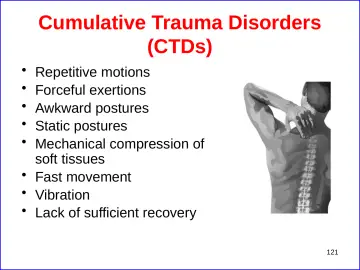

110. Slide 121

     Cumulative Trauma Disorders (CTDs)

     • Repetitive motions
     • Forceful exertions
     • Awkward postures
     • Static postures
     • Mechanical compression of soft tissues
     • Fast movement
     • Vibration
     • Lack of sufficient recovery
111. Slide 122

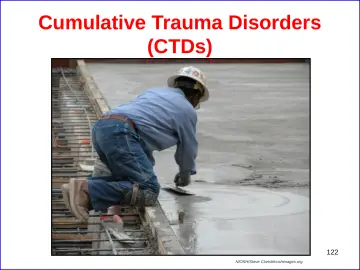

     Cumulative Trauma Disorders

     • (CTDs)
     • NIOSH/Steve Clark/elcoshimages.org

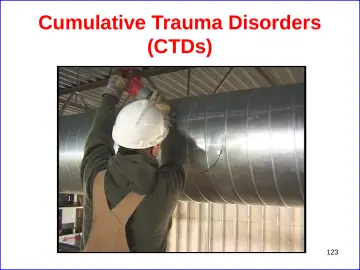

112. Slide 123

     Cumulative Trauma Disorders

     • (CTDs)
113. Slide 124

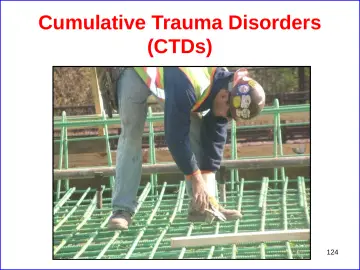

     Cumulative Trauma Disorders

     • (CTDs)

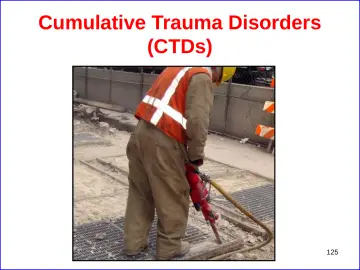

114. Slide 125

     Cumulative Trauma Disorders

     • (CTDs)
115. Slide 126

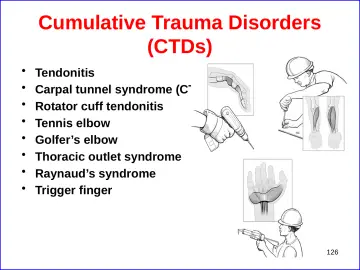

     Cumulative Trauma Disorders (CTDs)

     • Tendonitis
     • Carpal tunnel syndrome (CTS) Rotator cuff tendonitis
     • Tennis elbow
     • Golfer’s elbow
     • Thoracic outlet syndrome Raynaud’s syndrome
     • Trigger finger

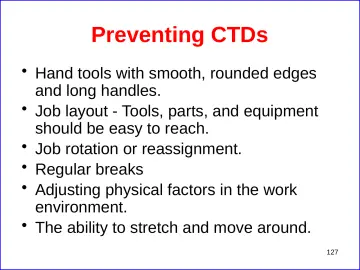

116. Slide 127

     Preventing CTDs

     • Hand tools with smooth, rounded edges and long handles.
     • Job layout - Tools, parts, and equipment should be easy to reach.
     • Job rotation or reassignment.
     • Regular breaks
     • Adjusting physical factors in the work environment.
     • The ability to stretch and move around.
117. Slide 128

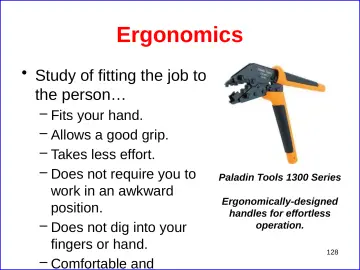

     Ergonomics

     • Study of fitting the job to the person…
     • Fits your hand.
     • Allows a good grip.
     • Takes less effort.
     • Does not require you to work in an awkward position.
     • Does not dig into your fingers or hand.
     • Comfortable and
     • Paladin Tools 1300 Series
     • Ergonomically-designed handles for effortless operation.
118. Slide 129

     Pre-Work Stretch & Flex

     • Trunk & Low Back
119. Slide 130

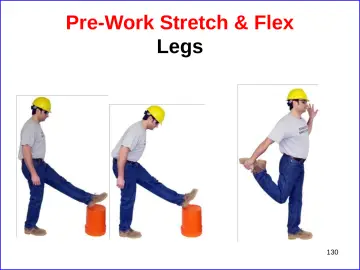

     Pre-Work Stretch & Flex

     • Legs
120. Slide 131

     Pre-Work Stretch & Flex

     • Upper Body

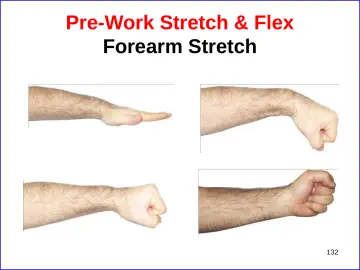

121. Slide 132

     Pre-Work Stretch & Flex

     • Forearm Stretch

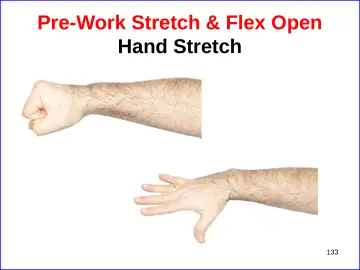

122. Slide 133

     Pre-Work Stretch & Flex Open

     • Hand Stretch
123. Slide 134

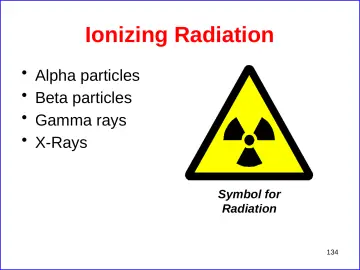

     Ionizing Radiation

     • Alpha particles
     • Beta particles
     • Gamma rays
     • X-Rays
     • Symbol for Radiation
124. Slide 135

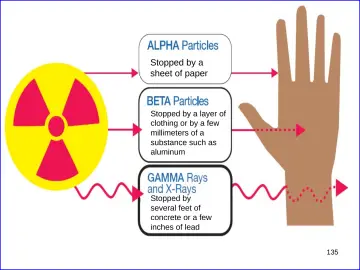

     Stopped by a sheet of paper

     • Stopped by a layer of clothing or by a few millimeters of a substance such as aluminum
     • Stopped by several feet of concrete or a few inches of lead
125. Slide 136

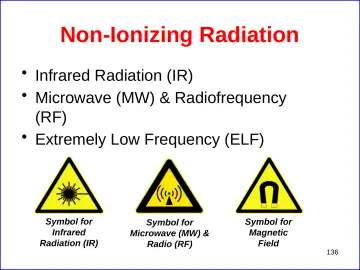

     Non-Ionizing Radiation

     • Infrared Radiation (IR)
     • Microwave (MW) & Radiofrequency (RF)
     • Extremely Low Frequency (ELF)
     • Symbol for Infrared
     • Radiation (IR)
     • Symbol for Microwave (MW) &
     • Radio (RF)
     • Symbol for Magnetic
     • Field
126. Slide 137

     Ultraviolet Radiation (UV)

     • Welding & cutting creates radiant energy that must be protected against (see requirements for filter lens shade number).
127. Slide 138

     Ultraviolet Radiation (UV)

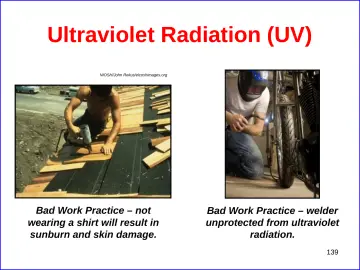

128. Slide 139

     Ultraviolet Radiation (UV)

     • NIOSH/John Rekus/elcoshimages.org
     • Bad Work Practice – not wearing a shirt will result in sunburn and skin damage.
     • Bad Work Practice – welder unprotected from ultraviolet radiation.
129. Slide 140

     Melanoma

     • Type of skin cancer.
     • Leading cause of death from skin disease.
     • Excessive exposure to sun light.

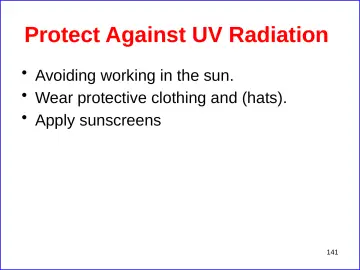

130. Slide 141

     Protect Against UV Radiation

     • Avoiding working in the sun.
     • Wear protective clothing and (hats).
     • Apply sunscreens
131. Slide 142

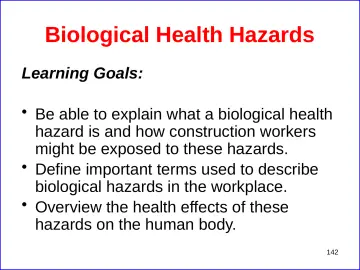

     Biological Health Hazards

     • Learning Goals:
     • Be able to explain what a biological health hazard is and how construction workers might be exposed to these hazards.
     • Define important terms used to describe biological hazards in the workplace.
     • Overview the health effects of these hazards on the human body.

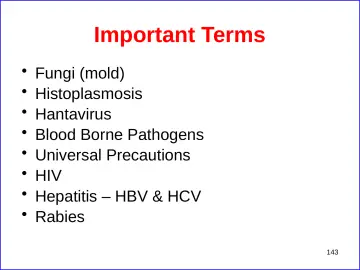

132. Slide 143

     Important Terms

     • Fungi (mold)
     • Histoplasmosis
     • Hantavirus
     • Blood Borne Pathogens
     • Universal Precautions
     • HIV
     • Hepatitis – HBV & HCV
     • Rabies
133. Slide 144

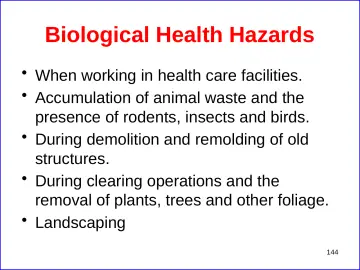

     Biological Health Hazards

     • When working in health care facilities.
     • Accumulation of animal waste and the presence of rodents, insects and birds.
     • During demolition and remolding of old structures.
     • During clearing operations and the removal of plants, trees and other foliage.
     • Landscaping
134. Slide 145

     Fungi (Mold)

     • Molds are organized into three groups:
     • 1. Allergenic
     • 2. Pathogenic
     • 3. Toxigenic
135. Slide 146

     How do Molds Affect the Body?

     • Spores small enough to be airborne.
     • Considered respirable.
     • Produce toxic agents known as mycotoxins.
     • Mold
136. Slide 147

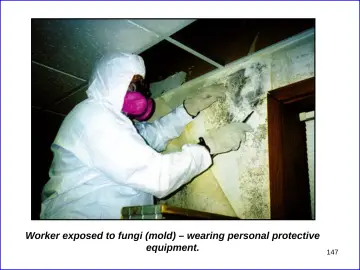

     • Worker exposed to fungi (mold) – wearing personal protective equipment.
137. Slide 148

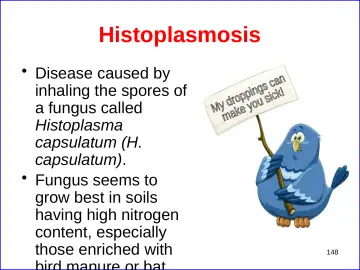

     Histoplasmosis

     • Disease caused by inhaling the spores of a fungus called Histoplasma capsulatum (H. capsulatum).
     • Fungus seems to grow best in soils having high nitrogen content, especially those enriched with

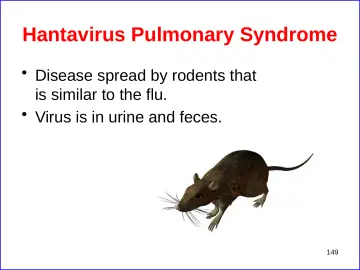

138. Slide 149

     Hantavirus Pulmonary Syndrome

     • Disease spread by rodents that is similar to the flu.
     • Virus is in urine and feces.

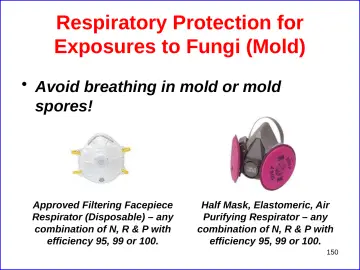

139. Slide 150

     Respiratory Protection for Exposures to Fungi (Mold)

     • Avoid breathing in mold or mold spores!
     • Approved Filtering Facepiece
     • Respirator (Disposable) – any combination of N, R & P with efficiency 95, 99 or 100.
     • Half Mask, Elastomeric, Air
     • Purifying Respirator – any combination of N, R & P with efficiency 95, 99 or 100.
