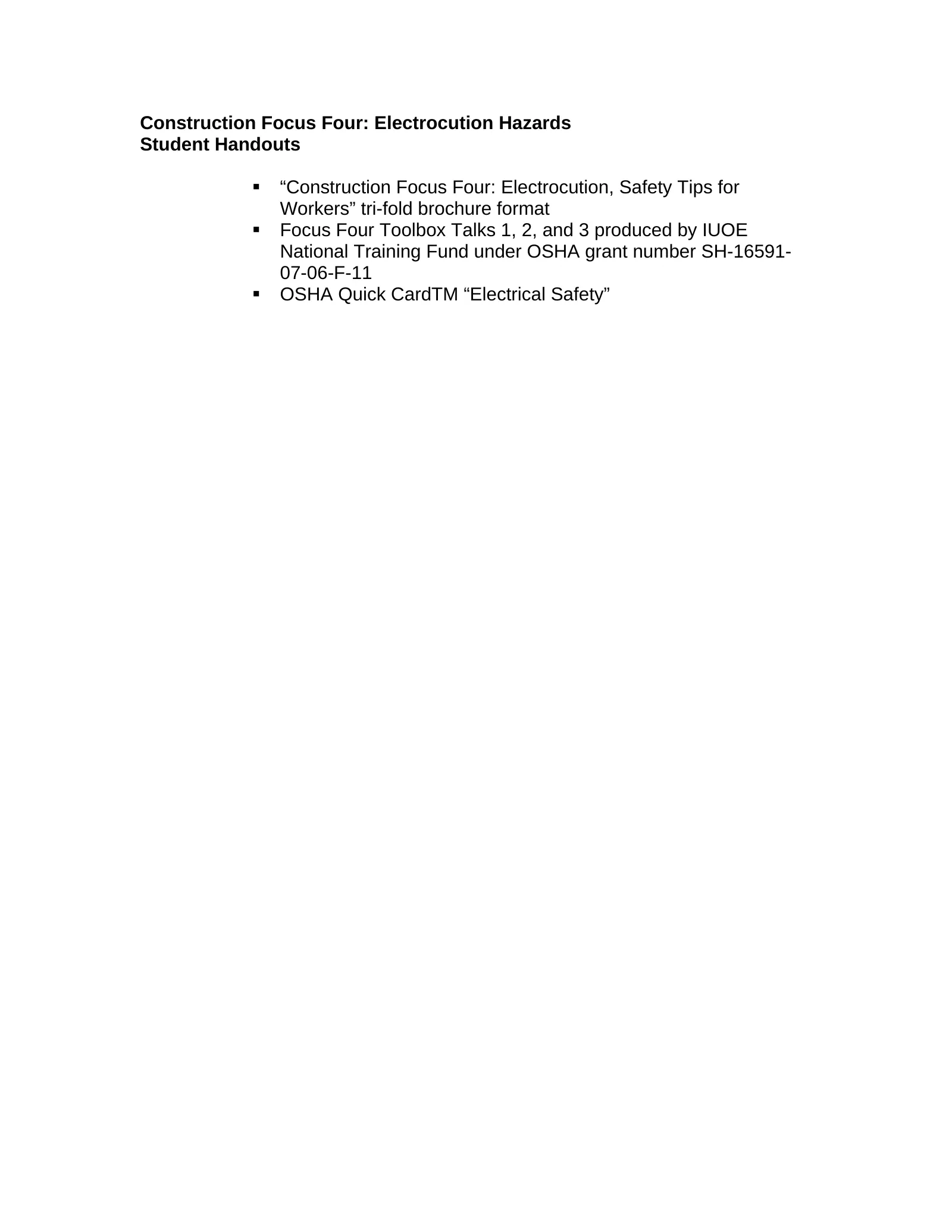

   Construction Focus Four: Electrocution Hazards Student Handouts

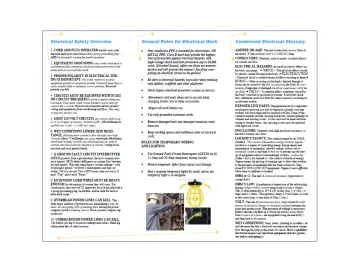

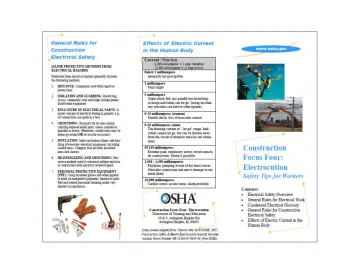

   • “Construction Focus Four: Electrocution, Safety Tips for Workers” tri-fold brochure format
   • Focus Four Toolbox Talks 1, 2, and 3 produced by IUOE National Training Fund under OSHA grant number SH-16591- 07-06-F-11

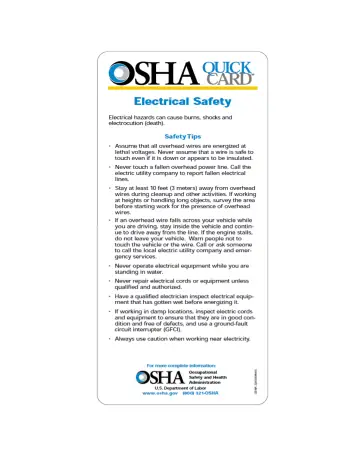

   • OSHA Quick CardTM “Electrical Safety”
2. Page 5

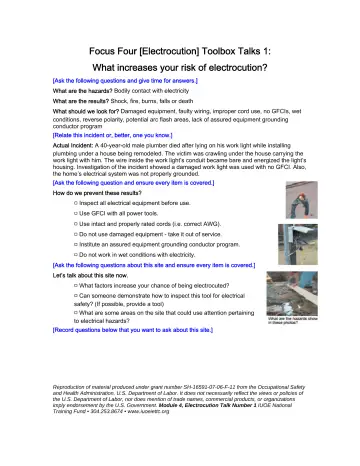

   Focus Four [Electrocution] Toolbox Talks 1: What increases your risk of electrocution?

   • [Ask the following questions and give time for answers.]
   • What are the hazards? Bodily contact with electricity
   • What are the results? Shock, fire, burns, falls or death
   • What should we look for? Damaged equipment, faulty wiring, improper cord use, no GFCIs, wet conditions, reverse polarity, potential arc flash areas, lack of assured equipment grounding conductor program
   • [Relate this incident or, better, one you know.]
   • Actual Incident: A 40-year-old male plumber died after lying on his work light while installing plumbing under a house being remodeled. The victim was crawling under the house carrying the work light with him. The wire inside the work light’s conduit became bare and energized the light’s housing. Investigation of the incident showed a damaged work light was used with no GFCI. Also, the home’s electrical system was not properly grounded.
   • [Ask the following question and ensure every item is covered.]
   • How do we prevent these results?
   • Inspect all electrical equipment before use.
   • Use GFCI with all power tools.
   • Use intact and properly rated cords (i.e. correct AWG).
   • Do not use damaged equipment - take it out of service.
   • Institute an assured equipment grounding conductor program.
   • Do not work in wet conditions with electricity.
   • [Ask the following questions about this site and ensure every item is covered.]
   • Let’s talk about this site now.
   • What factors increase your chance of being electrocuted?
   • Can someone demonstrate how to inspect this tool for electrical safety? (If possible, provide a tool)
   • What are some areas on the site that could use attention pertaining to electrical hazards?
   • [Record questions below that you want to ask about this site.]
   • Reproduction of material produced under grant number SH-16591-07-06-F-11 from the Occupational Safety and Health Administration, U.S. Department of Labor. It does not necessarily reflect the views or policies of the U.S. Department of Labor, nor does mention of trade names, commercial products, or organizations imply endorsement by the U.S. Government. Module 4, Electrocution Talk Number 1 IUOE National Training Fund • 304.253.8674 • www.iuoeiettc.org
3. Page 6

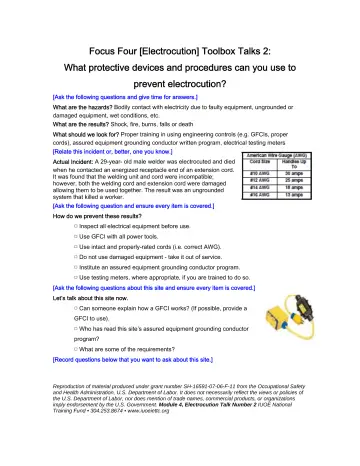

   Focus Four [Electrocution] Toolbox Talks 2:

   • What protective devices and procedures can you use to prevent electrocution?
   • [Ask the following questions and give time for answers.]
   • What are the hazards? Bodily contact with electricity due to faulty equipment, ungrounded or damaged equipment, wet conditions, etc.
   • What are the results? Shock, fire, burns, falls or death
   • What should we look for? Proper training in using engineering controls (e.g. GFCIs, proper cords), assured equipment grounding conductor written program, electrical testing meters [Relate this incident or, better, one you know.]
   • Actual Incident: A 29-year- old male welder was electrocuted and died when he contacted an energized receptacle end of an extension cord. It was found that the welding unit and cord were incompatible; however, both the welding cord and extension cord were damaged allowing them to be used together. The result was an ungrounded system that killed a worker.
   • [Ask the following question and ensure every item is covered.]
   • How do we prevent these results?
   • Inspect all electrical equipment before use.
   • Use GFCI with all power tools.
   • Use intact and properly-rated cords (i.e. correct AWG).
   • Do not use damaged equipment - take it out of service.
   • Institute an assured equipment grounding conductor program.
   • Use testing meters, where appropriate, if you are trained to do so.
   • [Ask the following questions about this site and ensure every item is covered.]
   • Let’s talk about this site now.
   • Can someone explain how a GFCI works? (If possible, provide a
   • GFCI to use).
   • Who has read this site’s assured equipment grounding conductor program?
   • What are some of the requirements?
   • [Record questions below that you want to ask about this site.]
   • Reproduction of material produced under grant number SH-16591-07-06-F-11 from the Occupational Safety and Health Administration, U.S. Department of Labor. It does not necessarily reflect the views or policies of the U.S. Department of Labor, nor does mention of trade names, commercial products, or organizations imply endorsement by the U.S. Government. Module 4, Electrocution Talk Number 2 IUOE National Training Fund • 304.253.8674 • www.iuoeiettc.org
4. Page 7

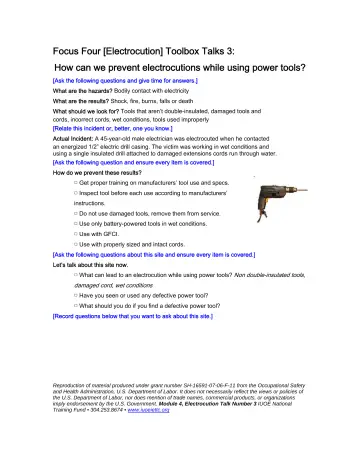

   Focus Four [Electrocution] Toolbox Talks 3: How can we prevent electrocutions while using power tools?

   • [Ask the following questions and give time for answers.]
   • What are the hazards? Bodily contact with electricity
   • What are the results? Shock, fire, burns, falls or death
   • What should we look for? Tools that aren’t double-insulated, damaged tools and cords, incorrect cords, wet conditions, tools used improperly
   • [Relate this incident or, better, one you know.]
   • Actual Incident: A 45-year-old male electrician was electrocuted when he contacted an energized 1/2” electric drill casing. The victim was working in wet conditions and using a single insulated drill attached to damaged extensions cords run through water. [Ask the following question and ensure every item is covered.]
   • How do we prevent these results?
   • Get proper training on manufacturers’ tool use and specs.
   • Inspect tool before each use according to manufacturers’ instructions.
   • Do not use damaged tools, remove them from service.
   • Use only battery-powered tools in wet conditions.
   • Use with GFCI.
   • Use with properly sized and intact cords.
   • [Ask the following questions about this site and ensure every item is covered.]
   • Let’s talk about this site now.
   • What can lead to an electrocution while using power tools? Non double-insulated tools, damaged cord, wet conditions
   • Have you seen or used any defective power tool?
   • What should you do if you find a defective power tool?
   • [Record questions below that you want to ask about this site.]
   • Reproduction of material produced under grant number SH-16591-07-06-F-11 from the Occupational Safety and Health Administration, U.S. Department of Labor. It does not necessarily reflect the views or policies of the U.S. Department of Labor, nor does mention of trade names, commercial products, or organizations imply endorsement by the U.S. Government. Module 4, Electrocution Talk Number 3 IUOE National Training Fund • 304.253.8674 • www.iuoeiettc.org
