1. Page 1

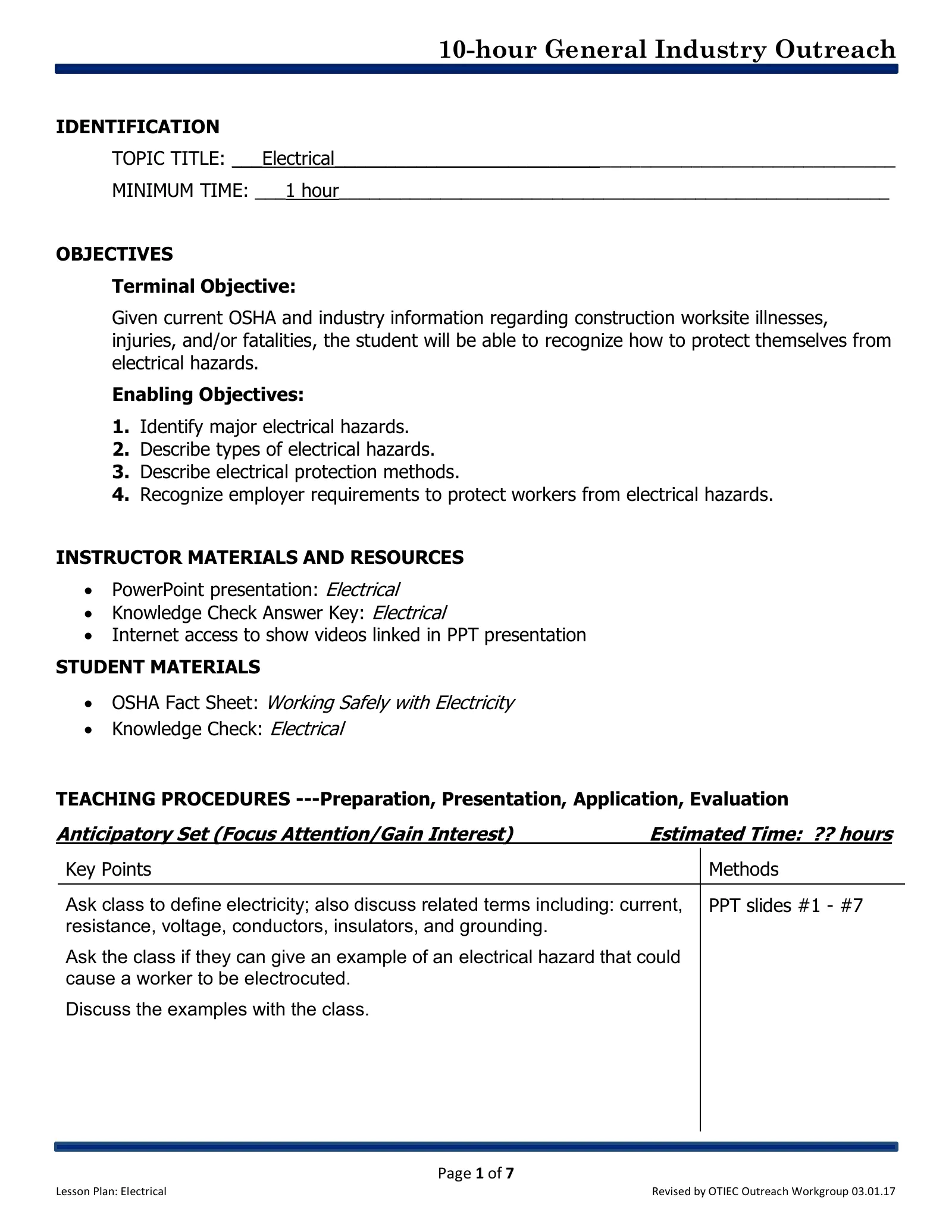

   IDENTIFICATION

   • TOPIC TITLE: ___Electrical___
   • MINIMUM TIME: ___1 hour ___
   • OBJECTIVES
   • Terminal Objective:
   • Given current OSHA and industry information regarding construction worksite illnesses, injuries, and/or fatalities, the student will be able to recognize how to protect themselves from electrical hazards.
   • Enabling Objectives:
   • 1. Identify major electrical hazards.
   • 2. Describe types of electrical hazards.
   • 3. Describe electrical protection methods.
   • 4. Recognize employer requirements to protect workers from electrical hazards.
   • INSTRUCTOR MATERIALS AND RESOURCES
   • PowerPoint presentation: Electrical
   • Knowledge Check Answer Key: Electrical
   • Internet access to show videos linked in PPT presentation
   • STUDENT MATERIALS
   • OSHA Fact Sheet: Working Safely with Electricity
   • Knowledge Check: Electrical
   • TEACHING PROCEDURES ---Preparation, Presentation, Application, Evaluation
   • Anticipatory Set (Focus Attention/Gain Interest)
   • Estimated Time: ?? ho urs
   • Key Points
   • Methods
   • Ask class to define electricity; also discuss related terms including: current, resistance, voltage, conductors, insulators, and grounding.
   • PPT slides #1 - #7
   • Ask the class if they can give an example of an electrical hazard that could cause a worker to be electrocuted.
   • Discuss the examples with the class.
2. Page 2

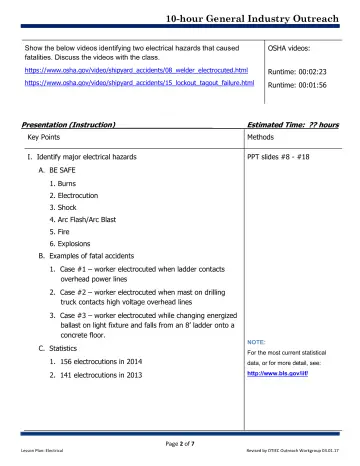

   • Show the below videos identifying two electrical hazards that caused fatalities. Discuss the videos with the class.
   • OSHA videos:
   • https://www.osha.gov/video/shipyard_accidents/08_welder_electrocuted.html
   • Runtime: 00:02:23
   • https://www.osha.gov/video/shipyard_accidents/15_lockout_tagout_failure.html
   • Runtime: 00:01:56
   • Presentation (Instruction) ___
   • Estimated Time: ?? ho urs
   • Key Points
   • Methods
   • I. Identify major electrical hazards
   • PPT slides #8 - #18
   • A. BE SAFE
   • 1. Burns
   • 2. Electrocution
   • 3. Shock
   • 4. Arc Flash/Arc Blast
   • 5. Fire
   • 6. Explosions
   • B. Examples of fatal accidents
   • 1. Case #1 – worker electrocuted when ladder contacts overhead power lines
   • 2. Case #2 – worker electrocuted when mast on drilling truck contacts high voltage overhead lines
   • 3. Case #3 – worker electrocuted while changing energized ballast on light fixture and falls from an 8’ ladder onto a concrete floor.
   • C. Statistics
   • NOTE:
   • For the most current statistical
   • 1. 156 e lectrocutions in 2014 data, or for more detail, see:
   • 2. 141 e lectrocutions in 2013 http://www.bls.gov/iif/
3. Page 3

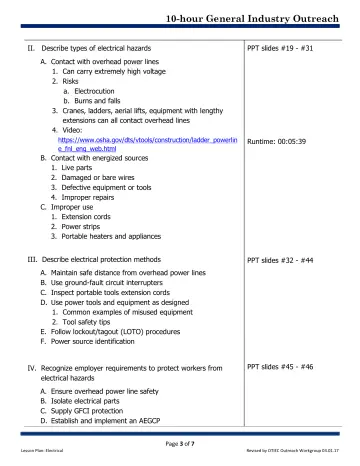

   II. Describe types of electrical hazards

   • PPT slides #19 - #31
   • A. Contact with overhead power lines
   • 1. Can carry extremely high voltage
   • 2. Risks
   • a. Electrocution
   • b. Burns and falls
   • 3. Cranes, ladders, aerial lifts, equipment with lengthy extensions can all contact overhead lines
   • 4. Video:
   • https://www.osha.gov/dts/vtools/construction/ladder_powerline_fnl_eng_web.html
   • Runtime: 00:05:39
   • B. Contact with energized sources
   • 1. Live parts
   • 2. Damaged or bare wires
   • 3. Defective equipment or tools
   • 4. Improper repairs
   • C. Improper use
   • 1. Extension cords
   • 2. Power strips
   • 3. Portable heaters and appliances
   • III. Describe electrical protection methods
   • PPT slides #32 - #44
   • A. Maintain safe distance from overhead power lines
   • B. Use ground-fault circuit interrupters
   • C. Inspect portable tools extension cords
   • D. Use power tools and equipment as designed
   • 1. Common examples of misused equipment
   • 2. Tool safety tips
   • E. Follow lockout/tagout (LOTO) procedures
   • F. Power source identification
   • IV. Recognize employer requirements to protect workers from electrical hazards
   • PPT slides #45 - #46
   • A. Ensure overhead power line safety
   • B. Isolate electrical parts
   • C. Supply GFCI protection
   • D. Establish and implement an AEGCP
4. Page 4

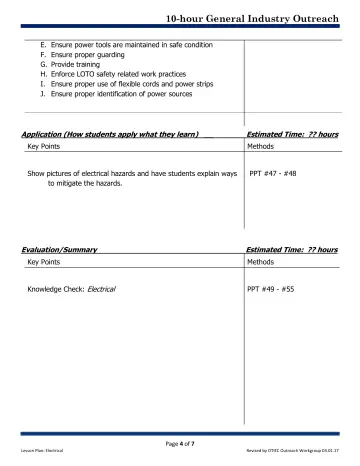

   E. Ensure power tools are maintained in safe condition

   • F. Ensure proper guarding
   • G. Provide training
   • H. Enforce LOTO safety related work practices
   • I. Ensure proper use of flexible cords and power strips
   • J. Ensure proper identification of power sources
   • Application (How students apply what they learn) __
   • Estimated Time: ?? ho urs
   • Key Points
   • Methods
   • Show pictures of electrical hazards a nd have students explain ways to mitigate t he hazards.
   • PPT #47 - #48
   • Evaluation/Summary
   • Key Points
   • Methods
   • Knowledge Check: Electrical
   • PPT #49 - #55
5. Page 5

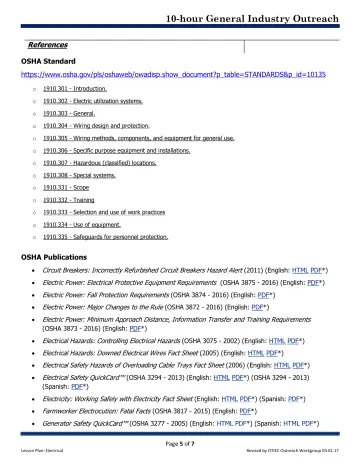

   References

   • OSHA Standard
   • https://www.osha.gov/pls/oshaweb/owadisp.show_document?p_table=STANDARDS&p_id=10135
   • 1910.301 - Introduction.
   • 1910.302 - Electric utilization systems.
   • 1910.303 - General.
   • 1910.304 - Wiring design and protection.
   • 1910.305 - Wiring methods, components, and equipment for general use.
   • 1910.306 - Specific purpose equipment and installations.
   • 1910.307 - Hazardous (classified) locations.
   • 1910.308 - Special systems.
   • 1910.331 - Scope
   • 1910.332 - Training
   • 1910.333 - Selection and use of work practices
   • 1910.334 - Use of equipment.
   • 1910.335 - Safeguards for personnel protection.
   • OSHA Publications
   • Circuit Breakers: Incorrectly Refurbished Circuit Breakers Hazard Alert (2011) (English: HTML PDF*)
   • Electric Power: Electrical Protective Equipment Requirements (OSHA 3875 - 2016) (English: PDF*)
   • Electric Power: Fall Protection Requirements (OSHA 3874 - 2016) (English: PDF*)
   • Electric Power: Major Changes to the Rule (OSHA 3872 - 2016) (English: PDF*)
   • Electric Power: Minimum Approach Distance, Information Transfer and Training Requirements
   • (OSHA 3873 - 2016) (English: PDF*)
   • Electrical Hazards: Controlling Electrical Hazards (OSHA 3075 - 2002) (English: HTML PDF*)
   • Electrical Hazards: Downed Electrical Wires Fact Sheet (2005) (English: HTML PDF*)
   • Electrical Safety Hazards of Overloading Cable Trays Fact Sheet (2006) (English: HTML PDF*)
   • Electrical Safety QuickCard™ (OSHA 3294 - 2013) (English: HTML PDF*) (OSHA 3294 - 2013)
   • (Spanish: PDF*)
   • Electricity: Working Safely with Electricity Fact Sheet (English: HTML PDF*) (Spanish: PDF*)
   • Farmworker Electrocution: Fatal Facts (OSHA 3817 - 2015) (English: PDF*)
   • Generator Safety QuickCard™ (OSHA 3277 - 2005) (English: HTML PDF*) (Spanish: HTML PDF*)
6. Page 6

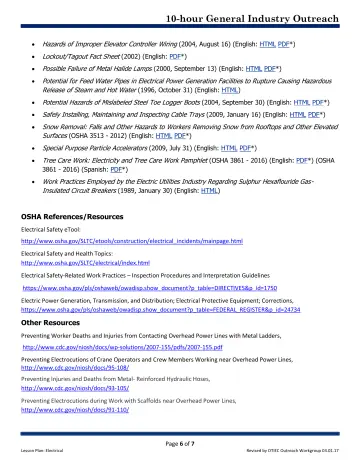

   • Hazards of Improper Elevator Controller Wiring (2004, August 16) (English: HTML PDF*)
   • Lockout/Tagout Fact Sheet (2002) (English: PDF*)
   • Possible Failure of Metal Halide Lamps (2000, September 13) (English: HTML PDF*)
   • Potential for Feed Water Pipes in Electrical Power Generation Facilities to Rupture Causing Hazardous Release of Steam and Hot Water (1996, October 31) (English: HTML)
   • Potential Hazards of Mislabeled Steel Toe Logger Boots (2004, September 30) (English: HTML PDF*)
   • Safely Installing, Maintaining and Inspecting Cable Trays (2009, January 16) (English: HTML PDF*)
   • Snow Removal: Falls and Other Hazards to Workers Removing Snow from Rooftops and Other Elevated Surfaces (OSHA 3513 - 2012) (English: HTML PDF*)
   • Special Purpose Particle Accelerators (2009, July 31) (English: HTML PDF*)
   • Tree Care Work: Electricity and Tree Care Work Pamphlet (OSHA 3861 - 2016) (English: PDF*) (OSHA
   • 3861 - 2016) (Spanish: PDF*)
   • Work Practices Employed by the Electric Utilities Industry Regarding Sulphur Hexaflouride Gas- Insulated Circuit Breakers (1989, January 30) (English: HTML)
   • OSHA References/Resources
   • Electrical Safety eTool:
   • http://www.osha.gov/SLTC/etools/construction/electrical_incidents/mainpage.html
   • Electrical Safety and Health Topics: http://www.osha.gov/SLTC/electrical/index.html
   • Electrical Safety-Related Work Practices – Inspection Procedures and Interpretation Guidelines https://www.osha.gov/pls/oshaweb/owadisp.show_document?p_table=DIRECTIVES&p_id=1750
   • Electric Power Generation, Transmission, and Distribution; Electrical Protective Equipment; Corrections, https://www.osha.gov/pls/oshaweb/owadisp.show_document?p_table=FEDERAL_REGISTER&p_id=24734
   • Other Resources
   • Preventing Worker Deaths and Injuries from Contacting Overhead Power Lines with Metal Ladders, http://www.cdc.gov/niosh/docs/wp-solutions/2007-155/pdfs/2007-155.pdf
   • Preventing Electrocutions of Crane Operators and Crew Members Working near Overhead Power Lines, http://www.cdc.gov/niosh/docs/95-108/
   • Preventing Injuries and Deaths from Metal- Reinforced Hydraulic Hoses, http://www.cdc.gov/niosh/docs/93-105/
   • Preventing Electrocutions during Work with Scaffolds near Overhead Power Lines, http://www.cdc.gov/niosh/docs/91-110/
7. Page 7

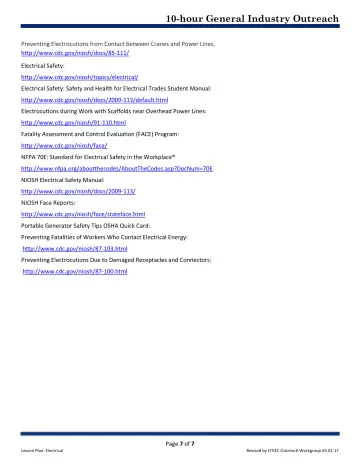

   • Preventing Electrocutions from Contact between Cranes and Power Lines, http://www.cdc.gov/niosh/docs/85-111/
   • Electrical Safety:
   • http://www.cdc.gov/niosh/topics/electrical/
   • Electrical Safety: Safety and Health for Electrical Trades Student Manual:
   • http://www.cdc.gov/niosh/docs/2009-113/default.html
   • Electrocutions during Work with Scaffolds near Overhead Power Lines:
   • http://www.cdc.gov/niosh/91-110.html
   • Fatality Assessment and Control Evaluation (FACE) Program:
   • http://www.cdc.gov/niosh/face/
   • NFPA 70E: Standard for Electrical Safety in the Workplace® http://www.nfpa.org/aboutthecodes/AboutTheCodes.asp?DocNum=70E
   • NIOSH Electrical Safety Manual:
   • http://www.cdc.gov/niosh/docs/2009-113/
   • NIOSH Face Reports:
   • http://www.cdc.gov/niosh/face/stateface.html
   • Portable Generator Safety Tips OSHA Quick Card:
   • Preventing Fatalities of Workers Who Contact Electrical Energy:
   • http://www.cdc.gov/niosh/87-103.html
   • Preventing Electrocutions Due to Damaged Receptacles and Connectors:
   • http://www.cdc.gov/niosh/87-100.html
