Module 10: Electrical Standards

The words on each slide as the author wrote them, read from the file by software so they can be searched. Layout, pictures and tables are not shown here: the slides above and the download are the original.

1. Slide 1

   MODULE 10

   • Electrical Standards

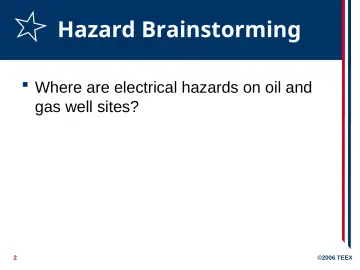

2. Slide 2

   Hazard Brainstorming

   • Where are electrical hazards on oil and gas well sites?

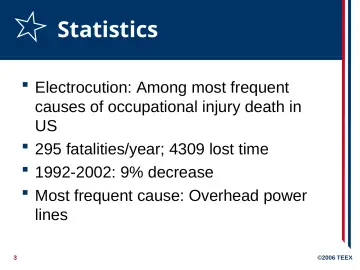

3. Slide 3

   Statistics

   • Electrocution: Among most frequent causes of occupational injury death in US
   • 295 fatalities/year; 4309 lost time
   • 1992-2002: 9% decrease
   • Most frequent cause: Overhead power lines

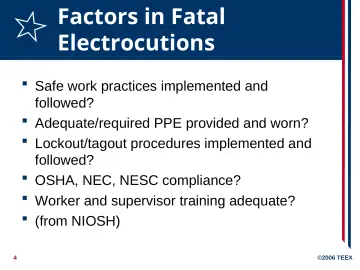

4. Slide 4

   Factors in Fatal Electrocutions

   • Safe work practices implemented and followed?
   • Adequate/required PPE provided and worn?
   • Lockout/tagout procedures implemented and followed?
   • OSHA, NEC, NESC compliance?
   • Worker and supervisor training adequate?
   • (from NIOSH)

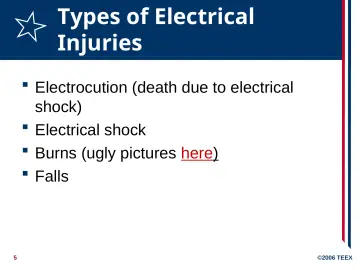

5. Slide 5

   Types of Electrical Injuries

   • Electrocution (death due to electrical shock)
   • Electrical shock
   • Burns (ugly pictures here)
   • Falls
6. Slide 6

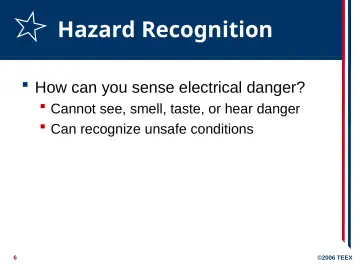

   Hazard Recognition

   • How can you sense electrical danger?
   • Cannot see, smell, taste, or hear danger
   • Can recognize unsafe conditions
7. Slide 7

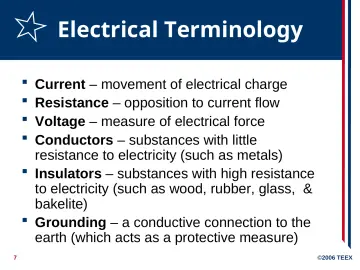

   Electrical Terminology

   • Current – movement of electrical charge
   • Resistance – opposition to current flow
   • Voltage – measure of electrical force
   • Conductors – substances with little resistance to electricity (such as metals)
   • Insulators – substances with high resistance to electricity (such as wood, rubber, glass, & bakelite)
   • Grounding – a conductive connection to the earth (which acts as a protective measure)
8. Slide 8

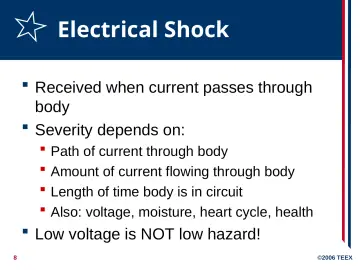

   Electrical Shock

   • Received when current passes through body
   • Severity depends on:
   • Path of current through body
   • Amount of current flowing through body
   • Length of time body is in circuit
   • Also: voltage, moisture, heart cycle, health
   • Low voltage is NOT low hazard!

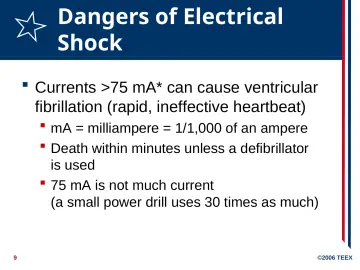

9. Slide 9

   Dangers of Electrical Shock

   • Currents >75 mA* can cause ventricular fibrillation (rapid, ineffective heartbeat)
   • mA = milliampere = 1/1,000 of an ampere
   • Death within minutes unless a defibrillator is used
   • 75 mA is not much current
   • (a small power drill uses 30 times as much)
10. Slide 10

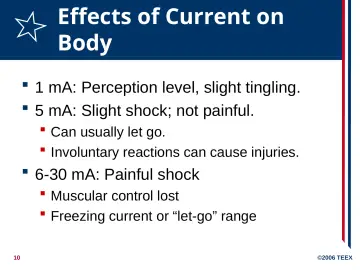

    Effects of Current on Body

    • 1 mA: Perception level, slight tingling.
    • 5 mA: Slight shock; not painful.
    • Can usually let go.
    • Involuntary reactions can cause injuries.
    • 6-30 mA: Painful shock
    • Muscular control lost
    • Freezing current or “let-go” range

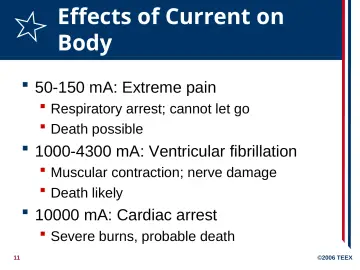

11. Slide 11

    Effects of Current on Body

    • 50-150 mA: Extreme pain
    • Respiratory arrest; cannot let go
    • Death possible
    • 1000-4300 mA: Ventricular fibrillation
    • Muscular contraction; nerve damage
    • Death likely
    • 10000 mA: Cardiac arrest
    • Severe burns, probable death
12. Slide 12

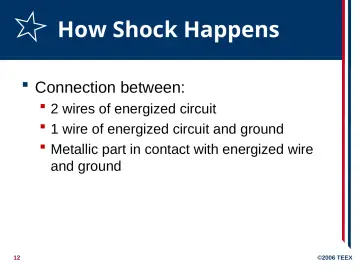

    How Shock Happens

    • Connection between:
    • 2 wires of energized circuit
    • 1 wire of energized circuit and ground
    • Metallic part in contact with energized wire and ground
13. Slide 13

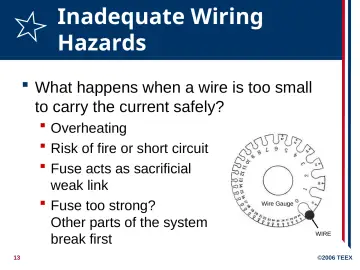

    Inadequate Wiring Hazards

    • What happens when a wire is too small to carry the current safely?
    • Overheating
    • Risk of fire or short circuit
    • Fuse acts as sacrificial weak link
    • Fuse too strong?
    • Other parts of the system break first
    • Wire Gauge
    • WIRE

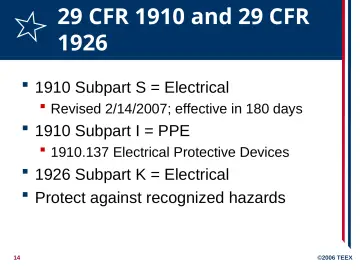

14. Slide 14

    29 CFR 1910 and 29 CFR 1926

    • 1910 Subpart S = Electrical
    • Revised 2/14/2007; effective in 180 days
    • 1910 Subpart I = PPE
    • 1910.137 Electrical Protective Devices
    • 1926 Subpart K = Electrical
    • Protect against recognized hazards

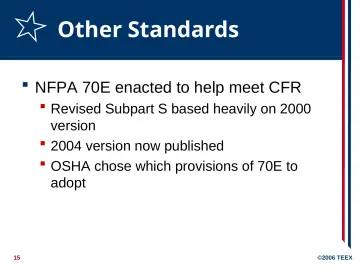

15. Slide 15

    Other Standards

    • NFPA 70E enacted to help meet CFR
    • Revised Subpart S based heavily on 2000 version
    • 2004 version now published
    • OSHA chose which provisions of 70E to adopt
16. Slide 16

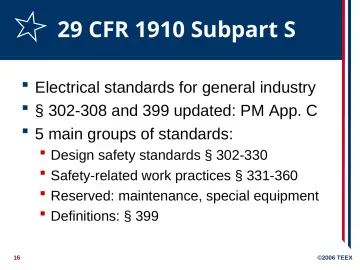

    29 CFR 1910 Subpart S

    • Electrical standards for general industry
    • § 302-308 and 399 updated: PM App. C
    • 5 main groups of standards:
    • Design safety standards § 302-330
    • Safety-related work practices § 331-360
    • Reserved: maintenance, special equipment
    • Definitions: § 399
17. Slide 17

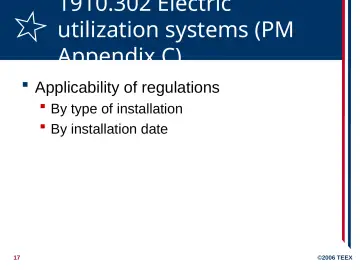

    1910.302 Electric utilization systems (PM Appendix C)

    • Applicability of regulations
    • By type of installation
    • By installation date
18. Slide 18

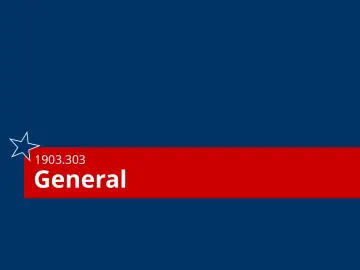

    • 1903.303
    • General
19. Slide 19

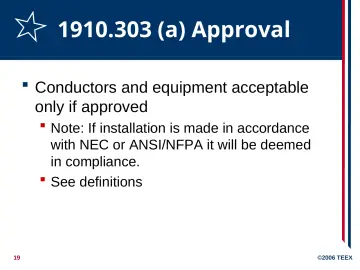

    1910.303 (a) Approval

    • Conductors and equipment acceptable only if approved
    • Note: If installation is made in accordance with NEC or ANSI/NFPA it will be deemed in compliance.
    • See definitions
20. Slide 20

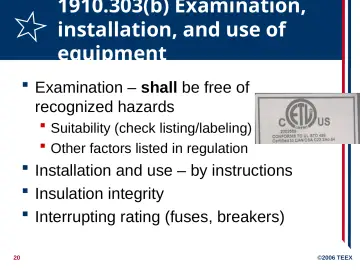

    1910.303(b) Examination, installation, and use of equipment

    • Examination – shall be free of recognized hazards
    • Suitability (check listing/labeling)
    • Other factors listed in regulation
    • Installation and use – by instructions
    • Insulation integrity
    • Interrupting rating (fuses, breakers)

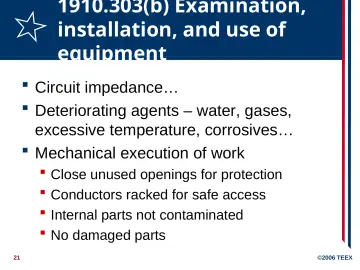

21. Slide 21

    1910.303(b) Examination, installation, and use of equipment

    • Circuit impedance…
    • Deteriorating agents – water, gases, excessive temperature, corrosives…
    • Mechanical execution of work
    • Close unused openings for protection
    • Conductors racked for safe access
    • Internal parts not contaminated
    • No damaged parts

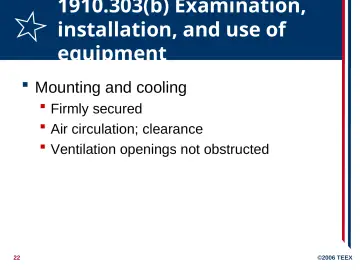

22. Slide 22

    1910.303(b) Examination, installation, and use of equipment

    • Mounting and cooling
    • Firmly secured
    • Air circulation; clearance
    • Ventilation openings not obstructed
23. Slide 23

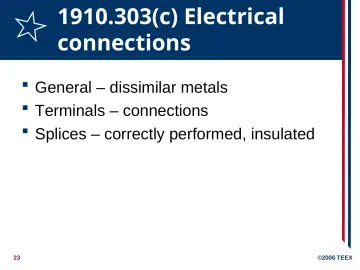

    1910.303(c) Electrical connections

    • General – dissimilar metals
    • Terminals – connections
    • Splices – correctly performed, insulated
24. Slide 24

    1910.303(d) Arcing parts

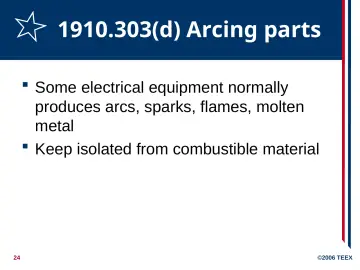

    • Some electrical equipment normally produces arcs, sparks, flames, molten metal
    • Keep isolated from combustible material
25. Slide 25

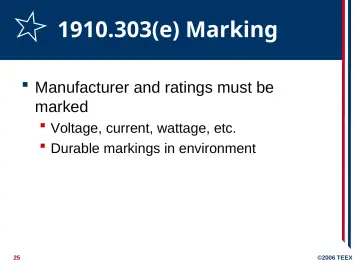

    1910.303(e) Marking

    • Manufacturer and ratings must be marked
    • Voltage, current, wattage, etc.
    • Durable markings in environment

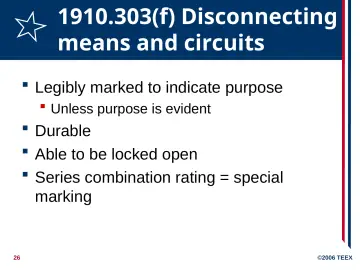

26. Slide 26

    1910.303(f) Disconnecting means and circuits

    • Legibly marked to indicate purpose
    • Unless purpose is evident
    • Durable
    • Able to be locked open
    • Series combination rating = special marking

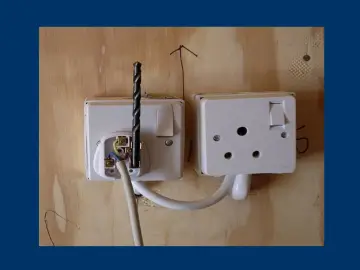

27. Slide 27

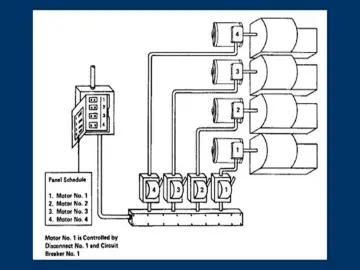

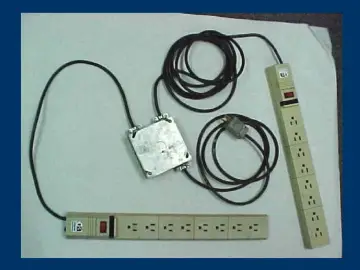

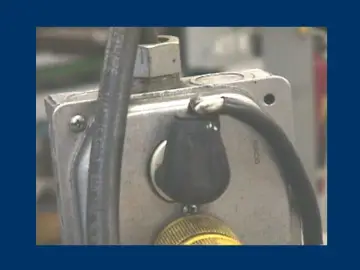

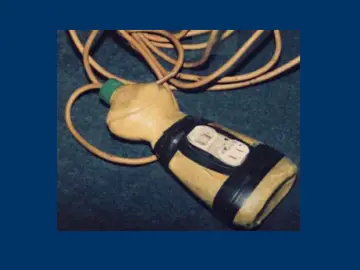

    Example of properly labeled electric service: motors, disconnects and breakers

    • FOR EXAMPLE…
    • Subtitles & Transitions
28. Slide 28

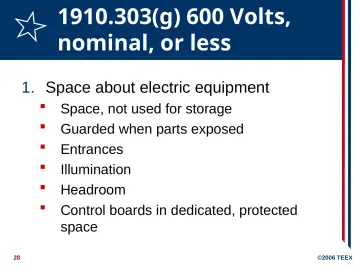

    1910.303(g) 600 Volts, nominal, or less

    • 1. Space about electric equipment
    • Space, not used for storage
    • Guarded when parts exposed Entrances
    • Illumination
    • Headroom
    • Control boards in dedicated, protected space

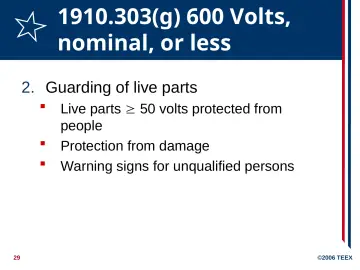

29. Slide 29

    1910.303(g) 600 Volts, nominal, or less

    • 2. Guarding of live parts
    • Live parts ≥ 50 volts protected from people
    • Protection from damage
    • Warning signs for unqualified persons

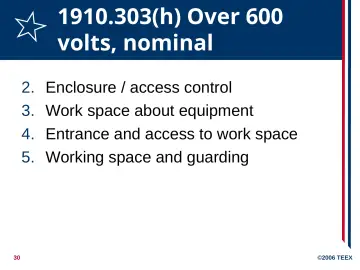

30. Slide 30

    1910.303(h) Over 600 volts, nominal

    • 2. Enclosure / access control
    • 3. Work space about equipment
    • 4. Entrance and access to work space
    • 5. Working space and guarding
31. Slide 31

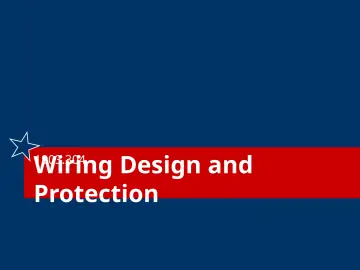

    Wiring Design and Protection

    • 1903.304
32. Slide 32

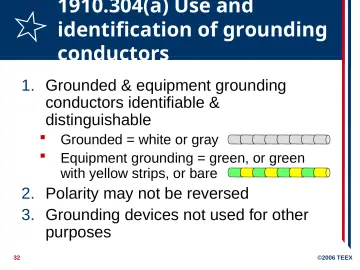

    1910.304(a) Use and identification of grounding conductors

    • 1. Grounded & equipment grounding conductors identifiable & distinguishable
    • Grounded = white or gray
    • Equipment grounding = green, or green with yellow strips, or bare
    • 2. Polarity may not be reversed
    • 3. Grounding devices not used for other purposes

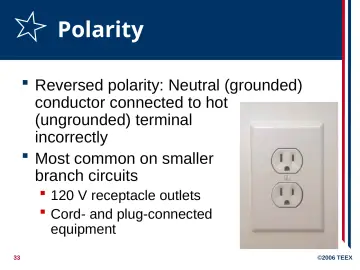

33. Slide 33

    Polarity

    • Reversed polarity: Neutral (grounded) conductor connected to hot (ungrounded) terminal
    • incorrectly
    • Most common on smaller branch circuits
    • 120 V receptacle outlets
    • Cord- and plug-connected equipment

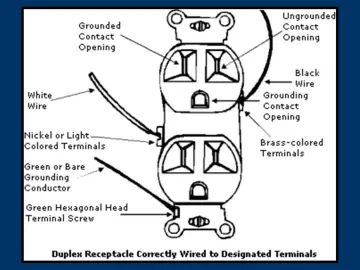

34. Slide 34

    Example of properly labeled electric service: motors, disconnects and breakers

    • FOR EXAMPLE…
    • Subtitles & Transitions
35. Slide 35

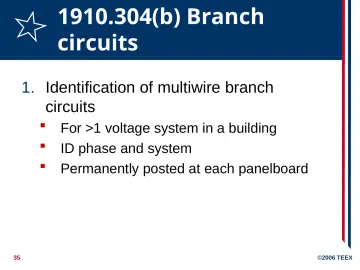

    1910.304(b) Branch circuits

    • 1. Identification of multiwire branch circuits
    • For >1 voltage system in a building
    • ID phase and system
    • Permanently posted at each panelboard

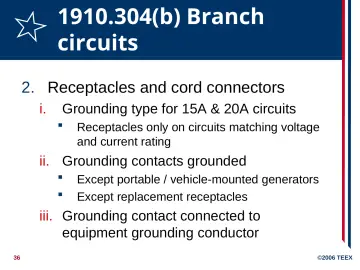

36. Slide 36

    1910.304(b) Branch circuits

    • 2. Receptacles and cord connectors
    • i.
    • Grounding type for 15A & 20A circuits
    • Receptacles only on circuits matching voltage and current rating
    • ii. Grounding contacts grounded
    • Except portable / vehicle-mounted generators Except replacement receptacles
    • iii. Grounding contact connected to equipment grounding conductor

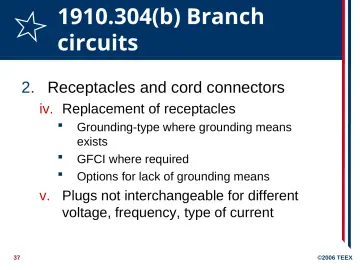

37. Slide 37

    1910.304(b) Branch circuits

    • 2. Receptacles and cord connectors
    • iv. Replacement of receptacles
    • Grounding-type where grounding means exists
    • GFCI where required
    • Options for lack of grounding means
    • v. Plugs not interchangeable for different voltage, frequency, type of current
38. Slide 38

    1910.304(b) Branch circuits

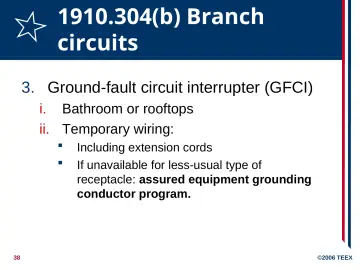

    • 3. Ground-fault circuit interrupter (GFCI)
    • i. Bathroom or rooftops
    • ii. Temporary wiring:
    • Including extension cords
    • If unavailable for less-usual type of receptacle: assured equipment grounding conductor program.

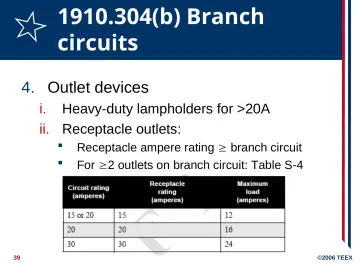

39. Slide 39

    1910.304(b) Branch circuits

    • 4. Outlet devices
    • i. Heavy-duty lampholders for >20A
    • ii. Receptacle outlets:
    • Receptacle ampere rating ≥ branch circuit For ≥2 outlets on branch circuit: Table S-4

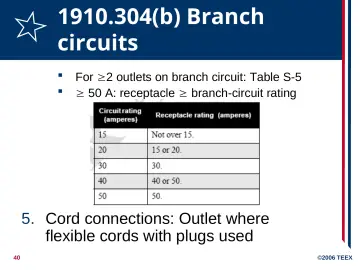

40. Slide 40

    1910.304(b) Branch circuits

    • For ≥2 outlets on branch circuit: Table S-5 ≥ 50 A: receptacle ≥ branch-circuit rating
    • 5. Cord connections: Outlet where flexible cords with plugs used
41. Slide 41

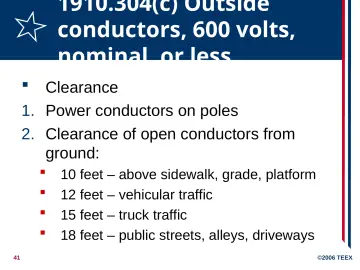

    1910.304(c) Outside conductors, 600 volts, nominal, or less

    • Clearance
    • 1. Power conductors on poles
    • 2. Clearance of open conductors from ground:
    • 10 feet – above sidewalk, grade, platform 12 feet – vehicular traffic
    • 15 feet – truck traffic
    • 18 feet – public streets, alleys, driveways

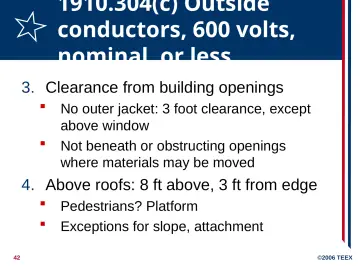

42. Slide 42

    1910.304(c) Outside conductors, 600 volts, nominal, or less

    • 3. Clearance from building openings
    • No outer jacket: 3 foot clearance, except above window
    • Not beneath or obstructing openings where materials may be moved
    • 4. Above roofs: 8 ft above, 3 ft from edge
    • Pedestrians? Platform Exceptions for slope, attachment
43. Slide 43

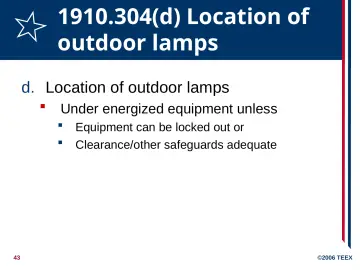

    1910.304(d) Location of outdoor lamps

    • d. Location of outdoor lamps
    • Under energized equipment unless
    • Equipment can be locked out or Clearance/other safeguards adequate

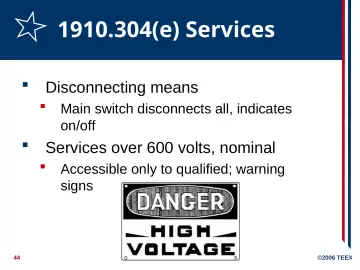

44. Slide 44

    1910.304(e) Services

    • Disconnecting means
    • Services over 600 volts, nominal
    • Main switch disconnects all, indicates on/off
    • Accessible only to qualified; warning signs
45. Slide 45

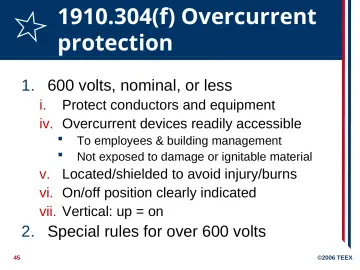

    1910.304(f) Overcurrent protection

    • 1. 600 volts, nominal, or less
    • i. Protect conductors and equipment
    • iv. Overcurrent devices readily accessible
    • To employees & building management
    • Not exposed to damage or ignitable material
    • v. Located/shielded to avoid injury/burns
    • vi. On/off position clearly indicated
    • vii. Vertical: up = on
    • 2. Special rules for over 600 volts
46. Slide 46

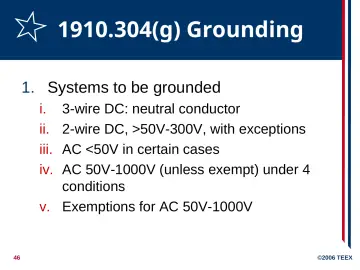

    1910.304(g) Grounding

    • 1. Systems to be grounded
    • i. 3-wire DC: neutral conductor
    • ii. 2-wire DC, >50V-300V, with exceptions
    • iii. AC <50V in certain cases
    • iv. AC 50V-1000V (unless exempt) under 4 conditions
    • v. Exemptions for AC 50V-1000V

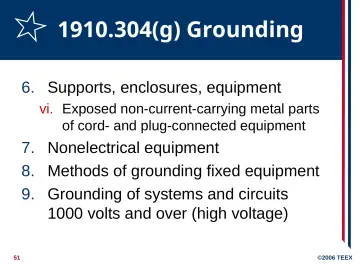

47. Slide 47

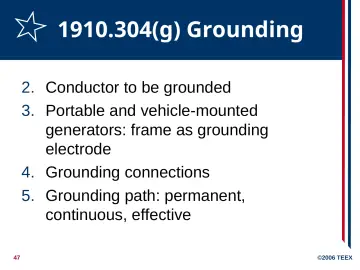

    1910.304(g) Grounding

    • 2. Conductor to be grounded
    • 3. Portable and vehicle-mounted generators: frame as grounding electrode
    • 4. Grounding connections
    • 5. Grounding path: permanent, continuous, effective
48. Slide 48

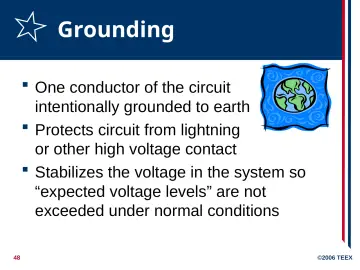

    Grounding

    • One conductor of the circuit intentionally grounded to earth
    • Protects circuit from lightning or other high voltage contact
    • Stabilizes the voltage in the system so “expected voltage levels” are not exceeded under normal conditions

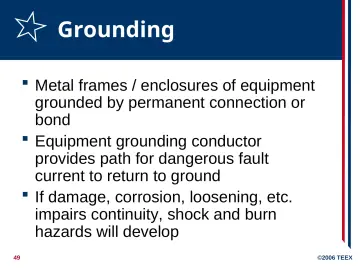

49. Slide 49

    Grounding

    • Metal frames / enclosures of equipment grounded by permanent connection or bond
    • Equipment grounding conductor provides path for dangerous fault current to return to ground
    • If damage, corrosion, loosening, etc. impairs continuity, shock and burn hazards will develop
50. Slide 50

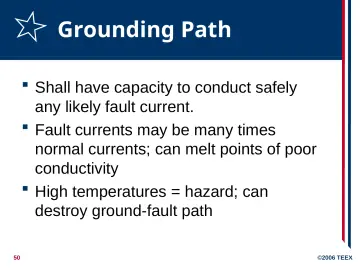

    Grounding Path

    • Shall have capacity to conduct safely any likely fault current.
    • Fault currents may be many times normal currents; can melt points of poor conductivity
    • High temperatures = hazard; can destroy ground-fault path
51. Slide 51

    1910.304(g) Grounding

    • 6. Supports, enclosures, equipment
    • vi. Exposed non-current-carrying metal parts of cord- and plug-connected equipment
    • 7. Nonelectrical equipment
    • 8. Methods of grounding fixed equipment
    • 9. Grounding of systems and circuits 1000 volts and over (high voltage)

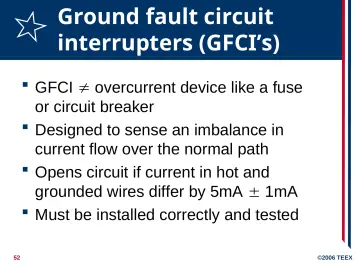

52. Slide 52

    Ground fault circuit interrupters (GFCI’s)

    • GFCI ≠ overcurrent device like a fuse
    • or circuit breaker
    • Designed to sense an imbalance in current flow over the normal path
    • Opens circuit if current in hot and grounded wires differ by 5mA ± 1mA
    • Must be installed correctly and tested
53. Slide 53

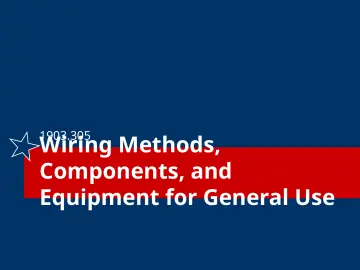

    • 1903.305
    • Wiring Methods, Components, and Equipment for General Use
54. Slide 54

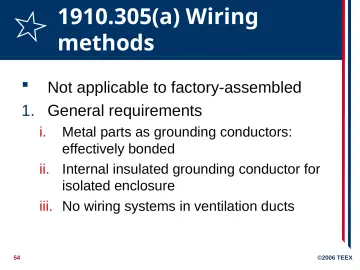

    1910.305(a) Wiring methods

    • Not applicable to factory-assembled
    • 1. General requirements
    • i.
    • Metal parts as grounding conductors: effectively bonded
    • ii. Internal insulated grounding conductor for isolated enclosure
    • iii. No wiring systems in ventilation ducts

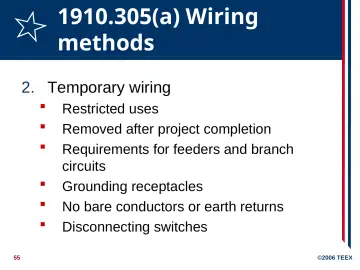

55. Slide 55

    1910.305(a) Wiring methods

    • 2. Temporary wiring
    • Restricted uses
    • Removed after project completion Requirements for feeders and branch circuits
    • Grounding receptacles
    • No bare conductors or earth returns Disconnecting switches
56. Slide 56

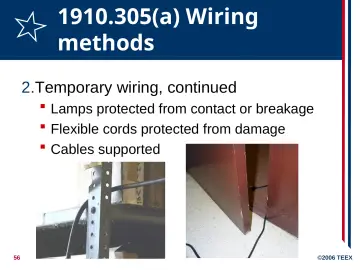

    1910.305(a) Wiring methods

    • 2.Temporary wiring, continued
    • Lamps protected from contact or breakage
    • Flexible cords protected from damage
    • Cables supported
57. Slide 57

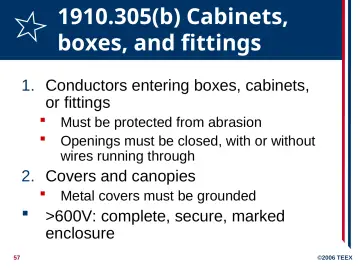

    1910.305(b) Cabinets, boxes, and fittings

    • 1. Conductors entering boxes, cabinets, or fittings
    • Must be protected from abrasion Openings must be closed, with or without wires running through
    • 2. Covers and canopies
    • Metal covers must be grounded
    • >600V: complete, secure, marked enclosure

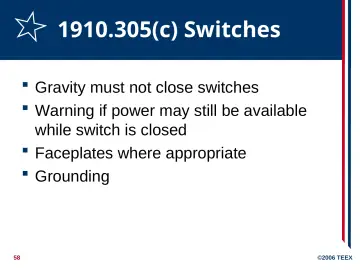

58. Slide 58

    1910.305(c) Switches

    • Gravity must not close switches
    • Warning if power may still be available while switch is closed
    • Faceplates where appropriate
    • Grounding
59. Slide 59

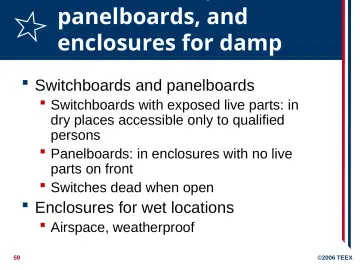

    panelboards, and enclosures for damp locations

    • Switchboards and panelboards
    • Switchboards with exposed live parts: in dry places accessible only to qualified persons
    • Panelboards: in enclosures with no live parts on front
    • Switches dead when open
    • Enclosures for wet locations
    • Airspace, weatherproof
60. Slide 60

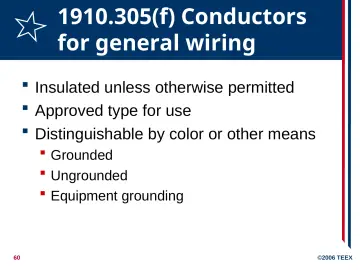

    1910.305(f) Conductors for general wiring

    • Insulated unless otherwise permitted
    • Approved type for use
    • Distinguishable by color or other means
    • Grounded
    • Ungrounded
    • Equipment grounding

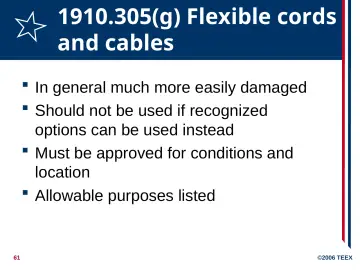

61. Slide 61

    1910.305(g) Flexible cords and cables

    • In general much more easily damaged
    • Should not be used if recognized options can be used instead
    • Must be approved for conditions and location
    • Allowable purposes listed

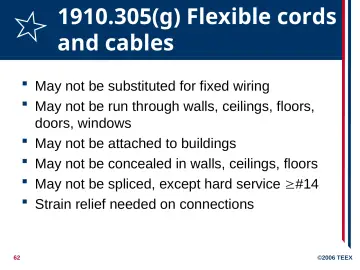

62. Slide 62

    1910.305(g) Flexible cords and cables

    • May not be substituted for fixed wiring
    • May not be run through walls, ceilings, floors, doors, windows
    • May not be attached to buildings
    • May not be concealed in walls, ceilings, floors
    • May not be spliced, except hard service ≥#14
    • Strain relief needed on connections

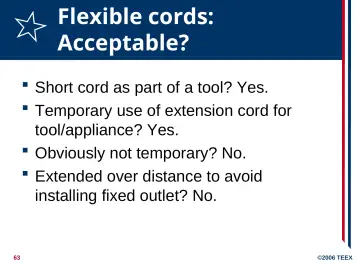

63. Slide 63

    Flexible cords: Acceptable?

    • Short cord as part of a tool? Yes.
    • Temporary use of extension cord for tool/appliance? Yes.
    • Obviously not temporary? No.
    • Extended over distance to avoid installing fixed outlet? No.
64. Slide 64

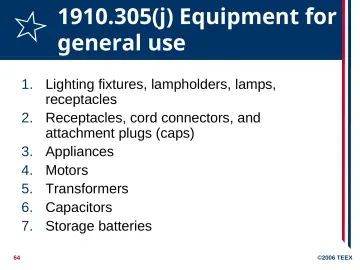

    1910.305(j) Equipment for general use

    • 1. Lighting fixtures, lampholders, lamps, receptacles
    • 2. Receptacles, cord connectors, and attachment plugs (caps)
    • 3. Appliances
    • 4. Motors
    • 5. Transformers
    • 6. Capacitors
    • 7. Storage batteries
65. Slide 65

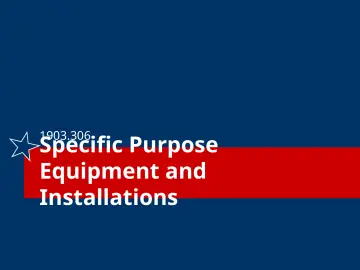

    • 1903.306
    • Specific Purpose Equipment and Installations
66. Slide 66

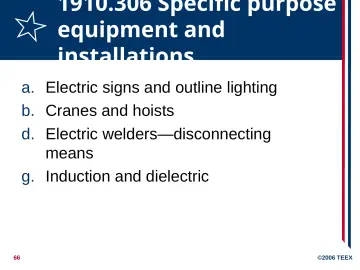

    1910.306 Specific purpose equipment and installations

    • a. Electric signs and outline lighting
    • b. Cranes and hoists
    • d. Electric welders—disconnecting means
    • g. Induction and dielectric
67. Slide 67

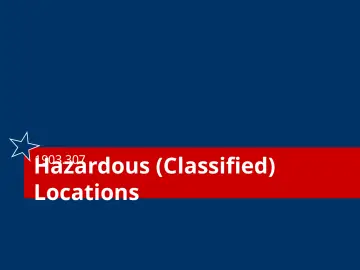

    Hazardous (Classified) Locations

    • 1903.307

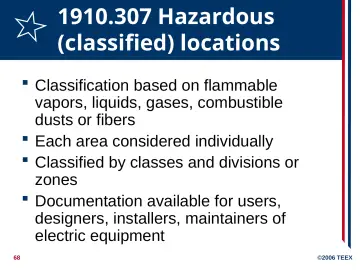

68. Slide 68

    1910.307 Hazardous (classified) locations

    • Classification based on flammable vapors, liquids, gases, combustible dusts or fibers
    • Each area considered individually
    • Classified by classes and divisions or zones
    • Documentation available for users, designers, installers, maintainers of electric equipment
69. Slide 69

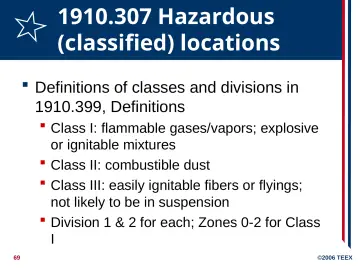

    1910.307 Hazardous (classified) locations

    • Definitions of classes and divisions in 1910.399, Definitions
    • Class I: flammable gases/vapors; explosive or ignitable mixtures
    • Class II: combustible dust
    • Class III: easily ignitable fibers or flyings; not likely to be in suspension
    • Division 1 & 2 for each; Zones 0-2 for Class I
70. Slide 70

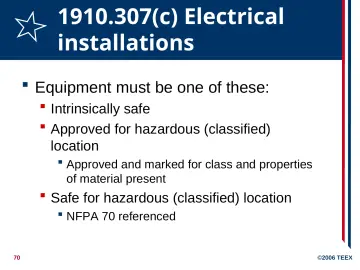

    1910.307(c) Electrical installations

    • Equipment must be one of these:
    • Intrinsically safe
    • Approved for hazardous (classified) location
    • Approved and marked for class and properties of material present
    • Safe for hazardous (classified) location
    • NFPA 70 referenced

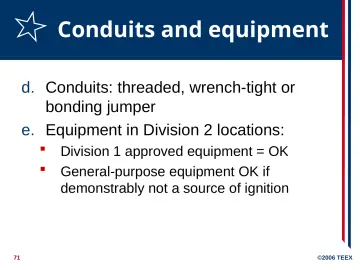

71. Slide 71

    Conduits and equipment

    • d. Conduits: threaded, wrench-tight or bonding jumper
    • e. Equipment in Division 2 locations:
    • Division 1 approved equipment = OK General-purpose equipment OK if demonstrably not a source of ignition
72. Slide 72

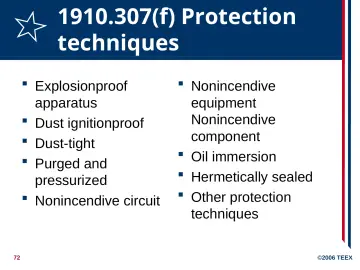

    1910.307(f) Protection techniques

    • Explosionproof apparatus
    • Dust ignitionproof
    • Dust-tight
    • Purged and pressurized
    • Nonincendive circuit
    • Nonincendive equipment
    • Nonincendive component
    • Oil immersion
    • Hermetically sealed
    • Other protection techniques

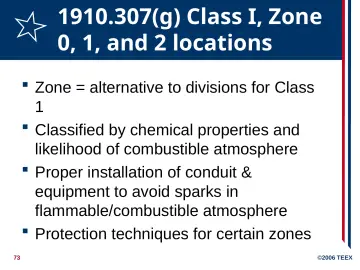

73. Slide 73

    1910.307(g) Class I, Zone 0, 1, and 2 locations

    • Zone = alternative to divisions for Class 1
    • Classified by chemical properties and likelihood of combustible atmosphere
    • Proper installation of conduit & equipment to avoid sparks in flammable/combustible atmosphere
    • Protection techniques for certain zones
74. Slide 74

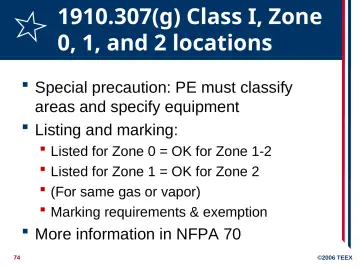

    1910.307(g) Class I, Zone 0, 1, and 2 locations

    • Special precaution: PE must classify areas and specify equipment
    • Listing and marking:
    • Listed for Zone 0 = OK for Zone 1-2
    • Listed for Zone 1 = OK for Zone 2
    • (For same gas or vapor)
    • Marking requirements & exemption
    • More information in NFPA 70

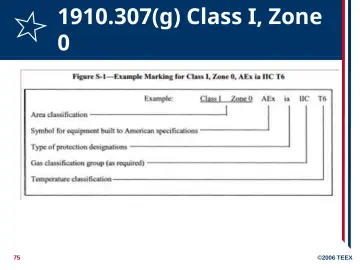

75. Slide 75

    1910.307(g) Class I, Zone 0

76. Slide 76
    • 1910.308
    • Special Systems

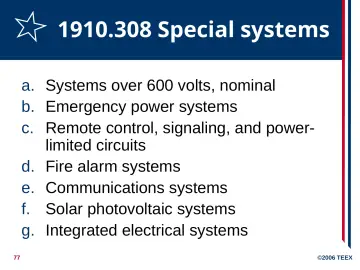

77. Slide 77

    1910.308 Special systems

    • a. Systems over 600 volts, nominal
    • b. Emergency power systems
    • c. Remote control, signaling, and power-limited circuits
    • d. Fire alarm systems
    • e. Communications systems
    • f. Solar photovoltaic systems
    • g. Integrated electrical systems
78. Slide 78

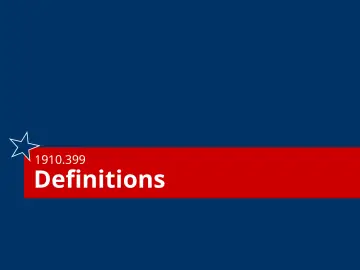

    • 1910.399
    • Definitions

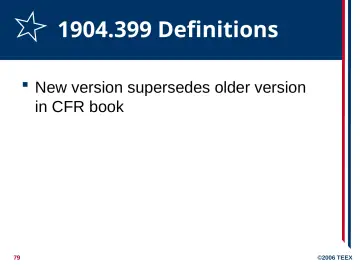

79. Slide 79

    1904.399 Definitions

    • New version supersedes older version in CFR book
80. Slide 80

    References for Further Information

    • 1910 SUBPART S APPENDIX A
81. Slide 81

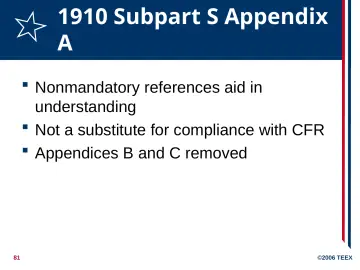

    1910 Subpart S Appendix A

    • Nonmandatory references aid in understanding
    • Not a substitute for compliance with CFR
    • Appendices B and C removed
82. Slide 82

    Safety-Related Work Practices

    • 1910.331-1910.335

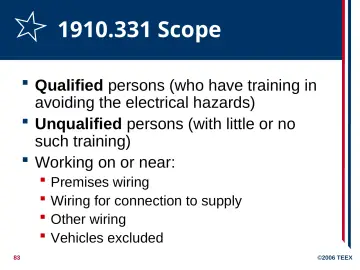

83. Slide 83

    1910.331 Scope

    • Qualified persons (who have training in avoiding the electrical hazards)
    • Unqualified persons (with little or no such training)
    • Working on or near:
    • Premises wiring
    • Wiring for connection to supply
    • Other wiring
    • Vehicles excluded

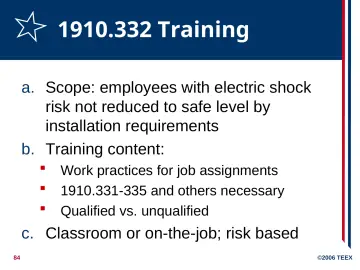

84. Slide 84

    1910.332 Training

    • a. Scope: employees with electric shock risk not reduced to safe level by installation requirements
    • b. Training content:
    • Work practices for job assignments 1910.331-335 and others necessary Qualified vs. unqualified
    • c. Classroom or on-the-job; risk based

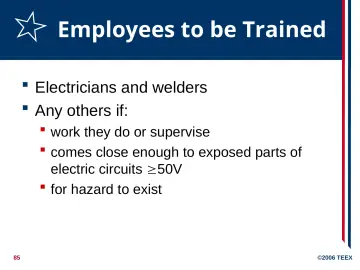

85. Slide 85

    Employees to be Trained

    • Electricians and welders
    • Any others if:
    • work they do or supervise
    • comes close enough to exposed parts of electric circuits ≥50V
    • for hazard to exist
86. Slide 86
    • 1910.333

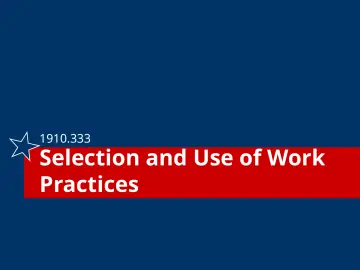

    • Selection and Use of Work Practices
87. Slide 87

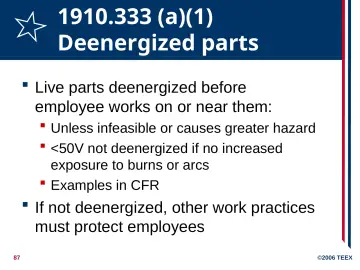

    1910.333 (a)(1) Deenergized parts

    • Live parts deenergized before employee works on or near them:
    • Unless infeasible or causes greater hazard
    • <50V not deenergized if no increased exposure to burns or arcs
    • Examples in CFR
    • If not deenergized, other work practices must protect employees
88. Slide 88

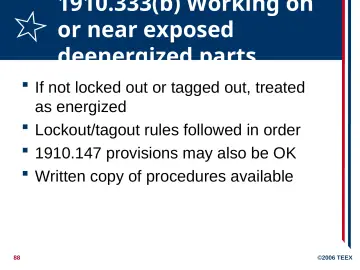

    1910.333(b) Working on or near exposed deenergized parts

    • If not locked out or tagged out, treated as energized
    • Lockout/tagout rules followed in order
    • 1910.147 provisions may also be OK
    • Written copy of procedures available
89. Slide 89

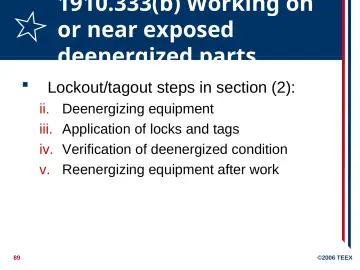

    1910.333(b) Working on or near exposed deenergized parts

    • Lockout/tagout steps in section (2):
    • ii. Deenergizing equipment
    • iii. Application of locks and tags
    • iv. Verification of deenergized condition
    • v. Reenergizing equipment after work
90. Slide 90

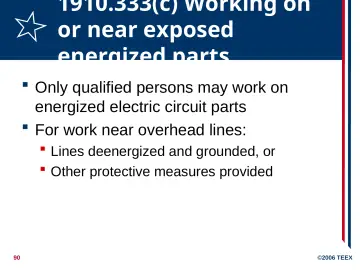

    1910.333(c) Working on or near exposed energized parts

    • Only qualified persons may work on energized electric circuit parts
    • For work near overhead lines:
    • Lines deenergized and grounded, or
    • Other protective measures provided
91. Slide 91

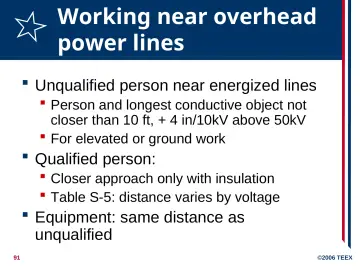

    Working near overhead power lines

    • Unqualified person near energized lines
    • Person and longest conductive object not closer than 10 ft, + 4 in/10kV above 50kV
    • For elevated or ground work
    • Qualified person:
    • Closer approach only with insulation
    • Table S-5: distance varies by voltage
    • Equipment: same distance as unqualified

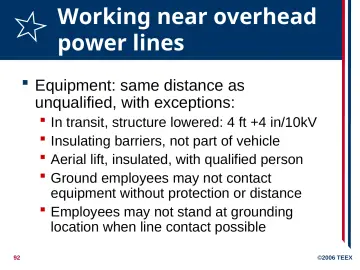

92. Slide 92

    Working near overhead power lines

    • Equipment: same distance as unqualified, with exceptions:
    • In transit, structure lowered: 4 ft +4 in/10kV
    • Insulating barriers, not part of vehicle
    • Aerial lift, insulated, with qualified person
    • Ground employees may not contact equipment without protection or distance
    • Employees may not stand at grounding location when line contact possible
93. Slide 93

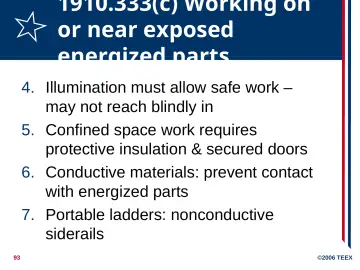

    1910.333(c) Working on or near exposed energized parts

    • 4. Illumination must allow safe work – may not reach blindly in
    • 5. Confined space work requires protective insulation & secured doors
    • 6. Conductive materials: prevent contact with energized parts
    • 7. Portable ladders: nonconductive siderails
94. Slide 94

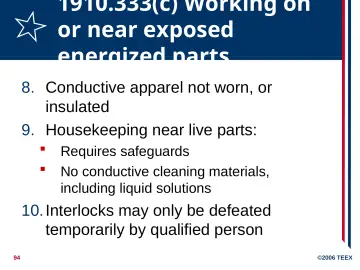

    1910.333(c) Working on or near exposed energized parts

    • 8. Conductive apparel not worn, or insulated
    • 9. Housekeeping near live parts:
    • Requires safeguards
    • No conductive cleaning materials, including liquid solutions
    • 10. Interlocks may only be defeated temporarily by qualified person
95. Slide 95

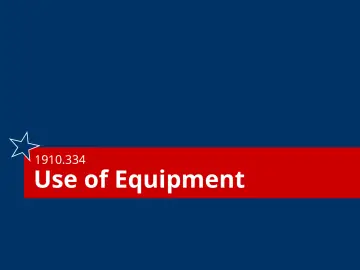

    • 1910.334
    • Use of Equipment
96. Slide 96

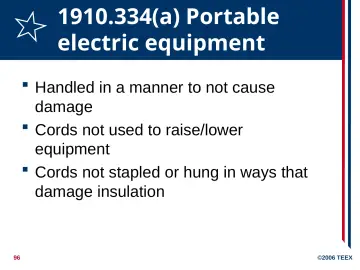

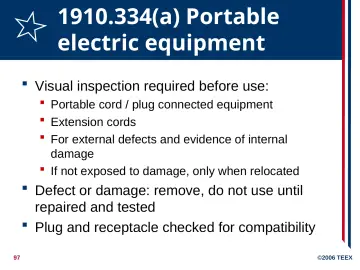

    1910.334(a) Portable electric equipment

    • Handled in a manner to not cause damage
    • Cords not used to raise/lower equipment
    • Cords not stapled or hung in ways that damage insulation
97. Slide 97

    1910.334(a) Portable electric equipment

    • Visual inspection required before use:
    • Portable cord / plug connected equipment
    • Extension cords
    • For external defects and evidence of internal damage
    • If not exposed to damage, only when relocated
    • Defect or damage: remove, do not use until repaired and tested
    • Plug and receptacle checked for compatibility
98. Slide 98

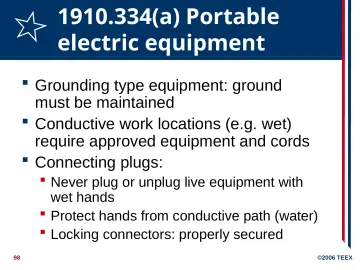

    1910.334(a) Portable electric equipment

    • Grounding type equipment: ground must be maintained
    • Conductive work locations (e.g. wet) require approved equipment and cords
    • Connecting plugs:
    • Never plug or unplug live equipment with wet hands
    • Protect hands from conductive path (water)
    • Locking connectors: properly secured
99. Slide 99

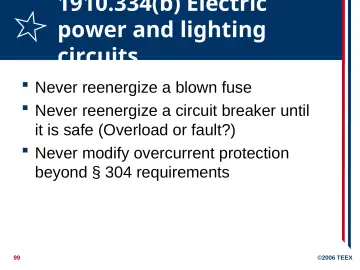

    1910.334(b) Electric power and lighting circuits

    • Never reenergize a blown fuse
    • Never reenergize a circuit breaker until it is safe (Overload or fault?)
    • Never modify overcurrent protection beyond § 304 requirements
100. Slide 100

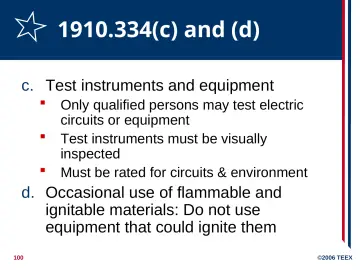

     1910.334(c) and (d)

     • c. Test instruments and equipment
     • Only qualified persons may test electric circuits or equipment
     • Test instruments must be visually inspected
     • Must be rated for circuits & environment
     • d. Occasional use of flammable and ignitable materials: Do not use equipment that could ignite them
101. Slide 101

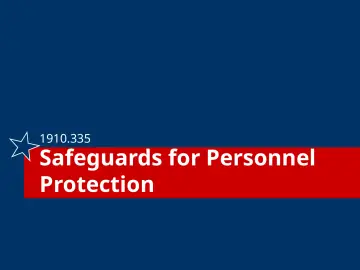

     • 1910.335
     • Safeguards for Personnel Protection
102. Slide 102

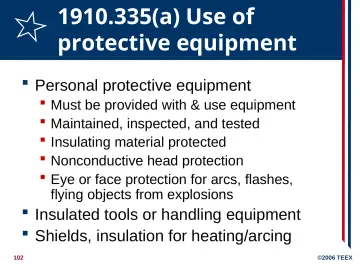

     1910.335(a) Use of protective equipment

     • Personal protective equipment
     • Must be provided with & use equipment
     • Maintained, inspected, and tested
     • Insulating material protected
     • Nonconductive head protection
     • Eye or face protection for arcs, flashes, flying objects from explosions
     • Insulated tools or handling equipment
     • Shields, insulation for heating/arcing
103. Slide 103

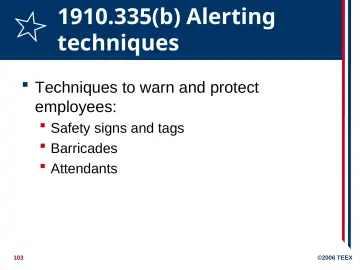

     1910.335(b) Alerting techniques

     • Techniques to warn and protect employees:
     • Safety signs and tags
     • Barricades
     • Attendants
104. Slide 104

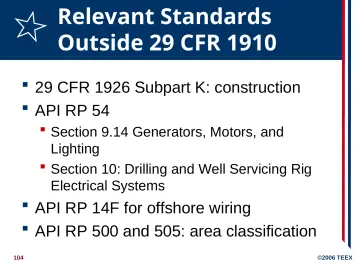

     Relevant Standards Outside 29 CFR 1910

     • 29 CFR 1926 Subpart K: construction
     • API RP 54
     • Section 9.14 Generators, Motors, and Lighting
     • Section 10: Drilling and Well Servicing Rig Electrical Systems
     • API RP 14F for offshore wiring
     • API RP 500 and 505: area classification
105. Slide 105

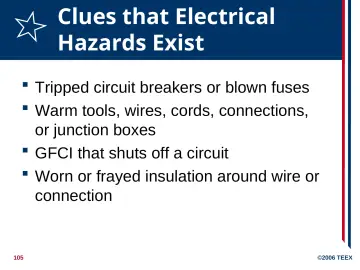

     Clues that Electrical Hazards Exist

     • Tripped circuit breakers or blown fuses
     • Warm tools, wires, cords, connections, or junction boxes
     • GFCI that shuts off a circuit
     • Worn or frayed insulation around wire or connection
106. Slide 106

     Example of properly labeled electric service: motors, disconnects and breakers

     • FOR EXAMPLE…
     • Subtitles & Transitions
107. Slide 107

     Example of properly labeled electric service: motors, disconnects and breakers

     • FOR EXAMPLE…
     • Subtitles & Transitions
108. Slide 108

     Example of properly labeled electric service: motors, disconnects and breakers

     • FOR EXAMPLE…
     • Subtitles & Transitions
109. Slide 109

     Example of properly labeled electric service: motors, disconnects and breakers

     • FOR EXAMPLE…
     • Subtitles & Transitions
110. Slide 110

     Example of properly labeled electric service: motors, disconnects and breakers

     • FOR EXAMPLE…
     • Subtitles & Transitions
111. Slide 111

     Example of properly labeled electric service: motors, disconnects and breakers

     • FOR EXAMPLE…
     • Subtitles & Transitions
112. Slide 112

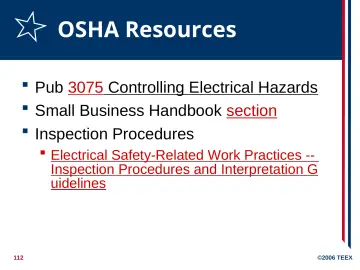

     OSHA Resources

     • Pub 3075 Controlling Electrical Hazards
     • Small Business Handbook section
     • Inspection Procedures
     • Electrical Safety-Related Work Practices -- Inspection Procedures and Interpretation G uidelines
113. Slide 113

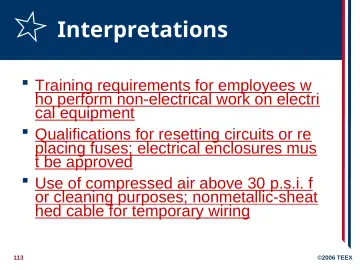

     Interpretations

     • Training requirements for employees w ho perform non-electrical work on electri cal equipment
     • Qualifications for resetting circuits or re placing fuses; electrical enclosures mus t be approved
     • Use of compressed air above 30 p.s.i. f or cleaning purposes; nonmetallic-sheat hed cable for temporary wiring
