- Slide 1
Module
- Introduction to
- Electrical Safety

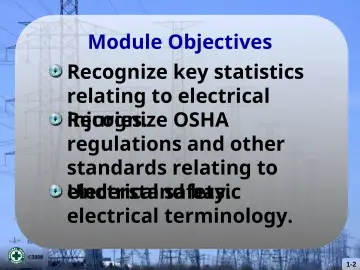

- Slide 2
Module Objectives
- Recognize key statistics relating to electrical
- Recognize OSHA injuries.
- regulations and other standards relating to electrical
- safety.
- Understand
- basic
- electrical terminology.

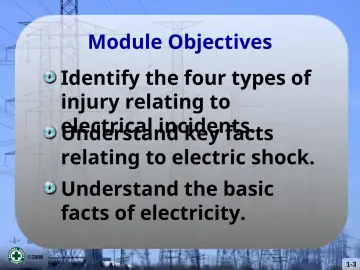

- Slide 3
Module Objectives
- Identify the four types of injury relating to electrical
- incidents. Understand key facts relating to electric shock.
- Understand the basic facts of electricity.
- Slide 4

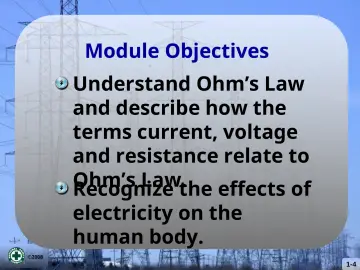

Module Objectives
- Understand Ohm’s Law and describe how the terms current, voltage and resistance relate to Ohm’s
- Law.
- Recognize the effects of
- electricity on the human body.

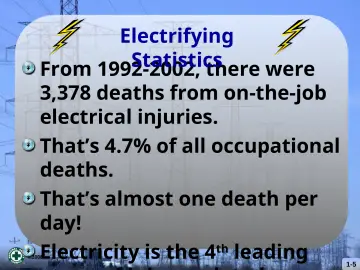

- Slide 5
Electrifying
- Statistics
- From 1992-2002, there were
- 3,378 deaths from on-the-job electrical injuries.
- That’s 4.7% of all occupational deaths.
- That’s almost one death per day!
- Electricity is the 4 th leading

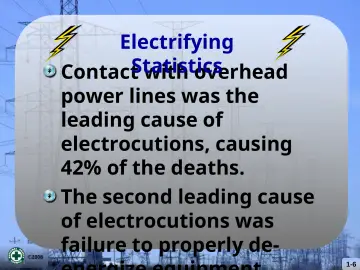

- Slide 6
- Electrifying
- Contact Statistics
- with overhead
- power lines was the leading cause of electrocutions, causing 42% of the deaths.
- The second leading cause of electrocutions was failure to properly de-

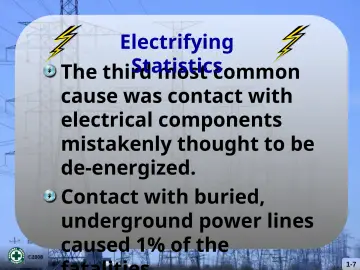

- Slide 7
Electrifying
- Statistics
- The third
- most common
- cause was contact with electrical components mistakenly thought to be de-energized.
- Contact with buried, underground power lines caused 1% of the

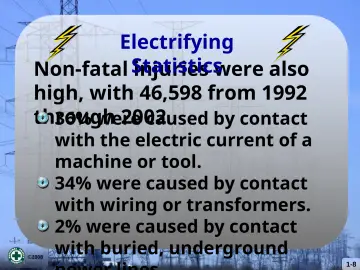

- Slide 8
Electrifying
- Non-fatal Statistics
- injuries were also
- high, with 46,598 from 1992 through
- 2002
- 36% were
- caused
- by contact
- with the electric current of a machine or tool.
- 34% were caused by contact with wiring or transformers. 2% were caused by contact with buried, underground

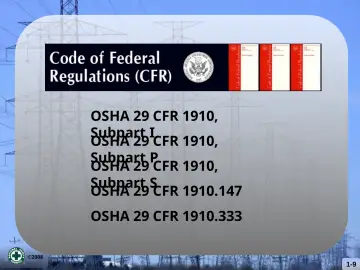

- Slide 9
OSHA 29 CFR 1910, Subpart I
- OSHA 29 CFR 1910, Subpart P
- OSHA 29 CFR 1910, Subpart S
- OSHA 29 CFR 1910.147
- OSHA 29 CFR 1910.333

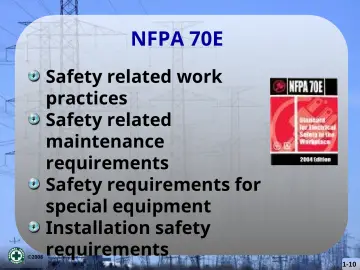

- Slide 10
NFPA 70E
- Safety related work practices
- Safety related maintenance requirements
- Safety requirements for special equipment Installation safety requirements

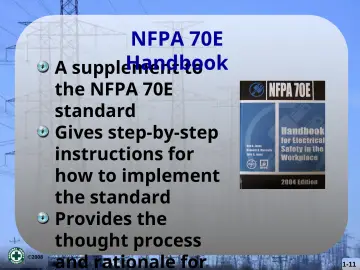

- Slide 11
NFPA 70E
- Handbook
- A supplement
- to
- the NFPA 70E standard
- Gives step-by-step instructions for how to implement the standard Provides the thought process and rationale for

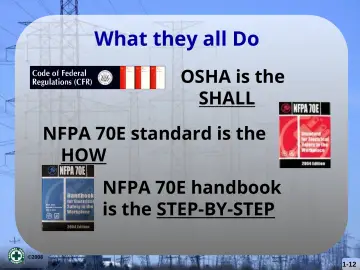

- Slide 12
What they all Do
- OSHA is the SHALL
- NFPA 70E standard is the HOW
- NFPA 70E handbook is the STEP-BY-STEP

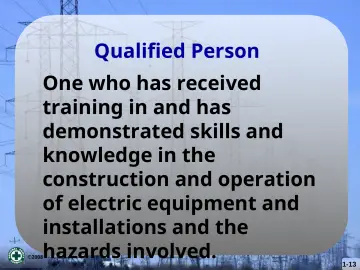

- Slide 13
Qualified Person
- One who has received training in and has demonstrated skills and knowledge in the construction and operation of electric equipment and installations and the hazards involved.

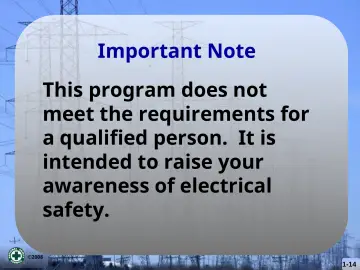

- Slide 14
Important Note
- This program does not meet the requirements for a qualified person. It is intended to raise your awareness of electrical safety.

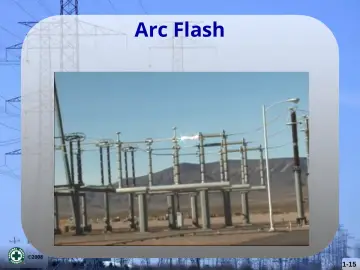

- Slide 15
Arc Flash
- Slide 16
Types of Electrical
- Injury
- Elect
- El k
- rocut
- io n
- Fal ls

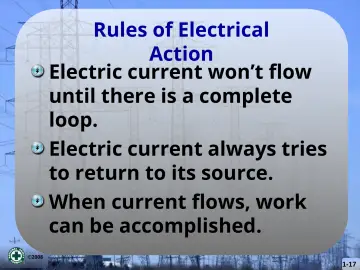

- Slide 17
Rules of Electrical
- Action
- Electric current won’t flow until there is a complete loop.
- Electric current always tries to return to its source.
- When current flows, work can be accomplished.
- Slide 18

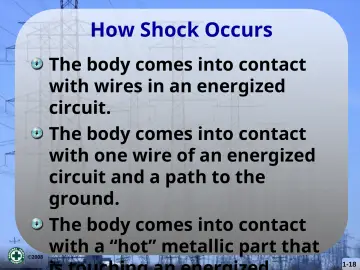

How Shock Occurs
- The body comes into contact with wires in an energized circuit.
- The body comes into contact with one wire of an energized circuit and a path to the ground.
- The body comes into contact with a “hot” metallic part that
- Slide 19

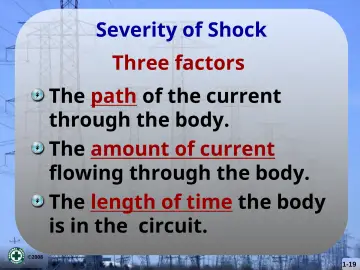

Severity of Shock
- Three factors
- The path of the current through the body.
- The amount of current flowing through the body. The length of time the body is in the circuit.

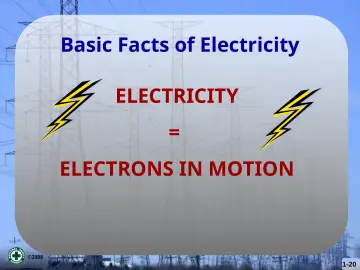

- Slide 20
Basic Facts of Electricity
- ELECTRICITY
- ELECTRONS IN MOTION

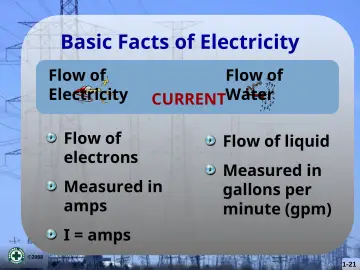

- Slide 21
Basic Facts of Electricity
- Flow of Electricity
- Flow of CURRENT Water
- Flow of electrons
- Measured in amps
- Flow of liquid
- Measured in gallons per minute (gpm)
- I = amps
- Slide 22

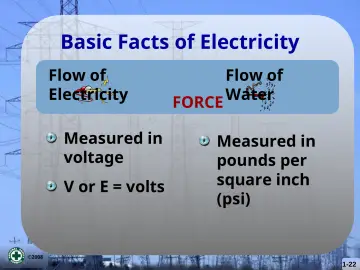

FORCE Water
- Basic Facts of Electricity
- Flow of Electricity
- Measured in voltage
- V or E = volts
- Flow of
- Measured in pounds per square inch (psi)

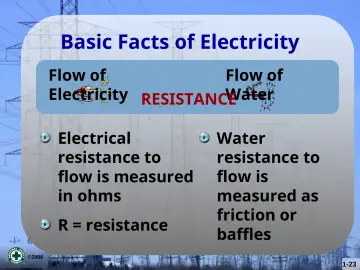

- Slide 23
Basic Facts of Electricity
- Flow of
- Flow of Electricity RESISTANCE Water
- Electrical resistance to flow is measured in ohms
- R = resistance
- Water resistance to flow is measured as friction or baffles

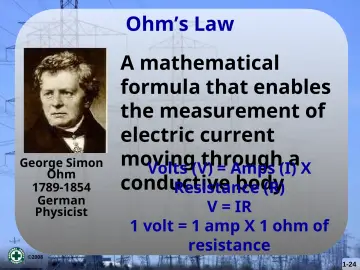

- Slide 24
Ohm’s Law
- George Simon
- Ohm
- 1789-1854
- German
- Physicist
- A mathematical formula that enables the measurement of electric current moving
- through
- Volts (V) = Amps (I) X conductive
- body
- Resistance
- (R)
- V = IR
- 1 volt = 1 amp X 1 ohm of resistance

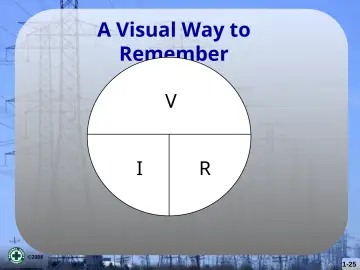

- Slide 25
A Visual Way to Remember

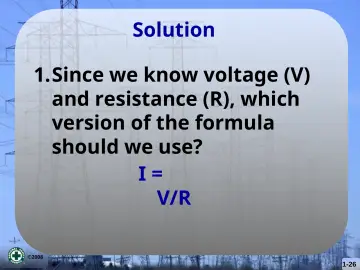

- Slide 26
Solution
- 1.Since we know voltage (V) and resistance (R), which version of the formula should we use?
- I =
- V/R

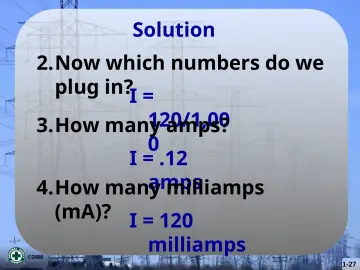

- Slide 27
plug in?I =
- Solution
- 2.Now which numbers do we
- 120/1,00
- 3.How many
- amps?
- I = .12
- amps
- 4.How many milliamps
- (mA)? I = 120
- milliamps
- Slide 28

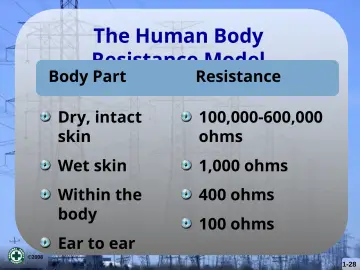

The Human Body Resistance Model
- Body Part
- Resistance
- Dry, intact skin
- 100,000-600,000 ohms
- Wet skin
- 1,000 ohms
- Within the body
- 400 ohms
- Ear to ear
- 100 ohms

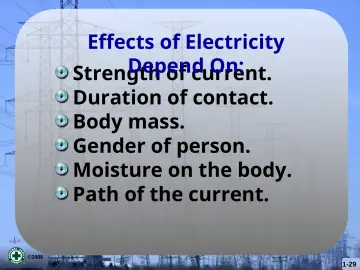

- Slide 29
Effects of Electricity
- Depend
- On:
- Strength of current.
- Duration of contact. Body mass.
- Gender of person. Moisture on the body. Path of the current.
- Slide 30
- Photo courtesy of Schneider Electric
- Slide 31
- Photo courtesy of Schneider Electric
- Slide 32
- Photo courtesy of Schneider Electric

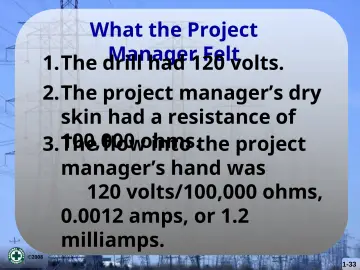

- Slide 33
What the Project
- Manager
- Felt
- 1.The drill had 120 volts.
- 2.The project manager’s dry skin had a resistance of 100,000
- 3.The flow ohms.
- into the project
- manager’s hand was
- 120 volts/100,000 ohms, 0.0012 amps, or 1.2 milliamps.

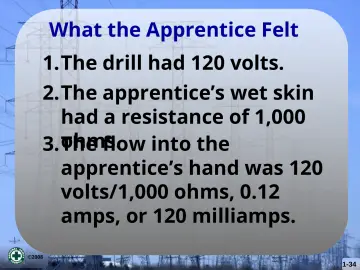

- Slide 34
What the Apprentice Felt
- 1.The drill had 120 volts.
- 2.The apprentice’s wet skin had a resistance of 1,000 ohms.
- 3.The flow into the apprentice’s hand was 120 volts/1,000 ohms, 0.12 amps, or 120 milliamps.

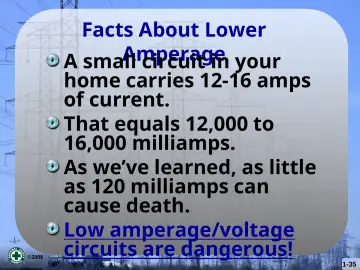

- Slide 35
Facts About Lower
- Amperage
- A small circuit in your home carries 12-16 amps of current.
- That equals 12,000 to 16,000 milliamps.
- As we’ve learned, as little as 120 milliamps can cause death.
- Low amperage/voltage circuits are dangerous!

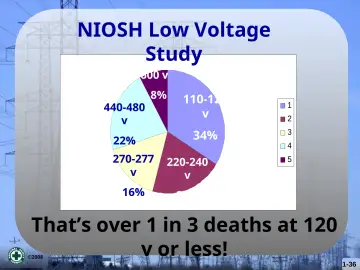

- Slide 36
NIOSH Low Voltage Study
- 600 v
- 440-480 v
- 8%
- 22%
- 110-120 v
- 34%
- 270-277 v
- 220-240 v
- 16%
- 20%
- That’s over 1 in 3 deaths at 120
- or less!

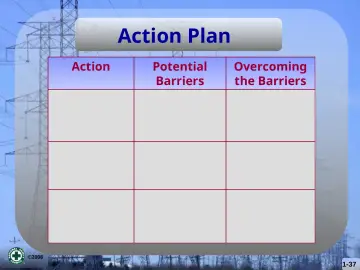

- Slide 37
Action Plan
- Action
- Potential Barriers
- Overcoming the Barriers
