Confined Spaces Hazards in Construction

The words on each slide as the author wrote them, read from the file by software so they can be searched. Layout, pictures and tables are not shown here: the slides above and the download are the original.

1. Slide 1

   CONFINED SPACES IN CONSTRUCTION

   • THIS MATERIAL WAS PRODUCED UNDER A GRANT (SH-29639-SH6) FROM THE OCCUPATIONAL SAFETY AND HEALTH ADMINISTRATION, U.S. DEPARTMENT OF LABOR. IT DOES NOT NECESSARILY REFLECT THE VIEWS OR POLICIES OF THE U.S. DEPARTMENT OF LABOR, NOR DOES THE MENTION OF TRADE NAMES, COMMERCIAL PRODUCTS, OR ORGANIZATION IMPLY ENDORSEMENT BY THE U.S. GOVERNMENT.

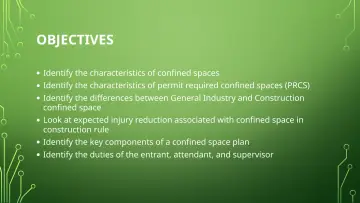

2. Slide 2

   OBJECTIVES

   • Identify the characteristics of confined spaces
   • Identify the characteristics of permit required confined spaces (PRCS)
   • Identify the differences between General Industry and Construction confined space
   • Look at expected injury reduction associated with confined space in construction rule
   • Identify the key components of a confined space plan
   • Identify the duties of the entrant, attendant, and supervisor

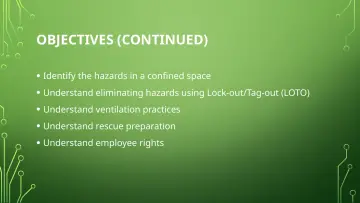

3. Slide 3

   OBJECTIVES (CONTINUED)

   • Identify the hazards in a confined space
   • Understand eliminating hazards using Lock-out/Tag-out (LOTO)
   • Understand ventilation practices
   • Understand rescue preparation
   • Understand employee rights
4. Slide 4

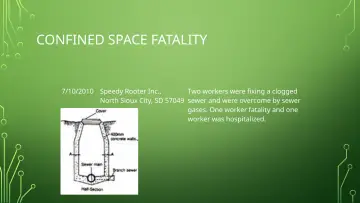

   CONFINED SPACE FATALITY

   • 7/10/2010 Speedy Rooter Inc.,
   • Two workers were fixing a clogged
   • North Sioux City, SD 57049 sewer and were overcome by sewer gases. One worker fatality and one worker was hospitalized.

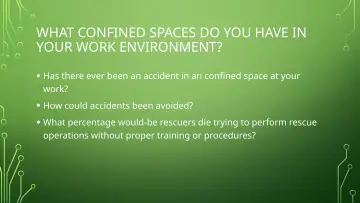

5. Slide 5

   WHAT CONFINED SPACES DO YOU HAVE IN YOUR WORK ENVIRONMENT?

   • Has there ever been an accident in an confined space at your work?
   • How could accidents been avoided?
   • What percentage would-be rescuers die trying to perform rescue operations without proper training or procedures?
6. Slide 6

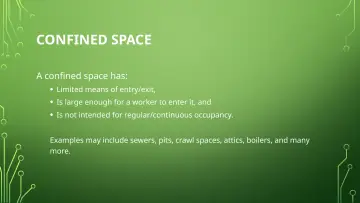

   CONFINED SPACE

   • A confined space has:
   • Limited means of entry/exit,
   • Is large enough for a worker to enter it, and
   • Is not intended for regular/continuous occupancy.
   • Examples may include sewers, pits, crawl spaces, attics, boilers, and many more.
7. Slide 7

   PERMIT-REQUIRED CONFINED SPACES

   • Permit-required confined spaces have one or more of these characteristics:
   • Contains or has the potential to contain a hazardous atmosphere;
   • Contains a material with the potential to engulf someone who enters the space;
   • Has an internal configuration that might cause an entrant to be trapped or asphyxiated by inwardly converging walls or by a floor that slopes downward and tapers to a smaller cross section; or
   • Contains any other recognized serious safety or health hazards.

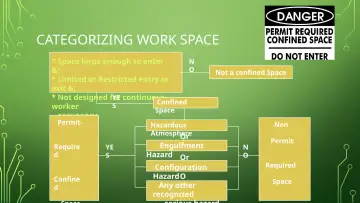

8. Slide 8

   CATEGORIZING WORK SPACE

   • Space large enough to enter
   • Limited or Restricted entry or exit &;
   • Not designed for
   • YE continuous
   • Confined
   • worker
   • Space
   • occupancy.
   • Permit-
   • Require d
   • Confine d
   • Not a confined Space
   • Non
   • Hazardous
   • Atmosphere
   • YE S
   • Or
   • Engulfment
   • Hazard Or
   • Configuration
   • Hazard O
   • Any other
   • r recognized
   • Permit
   • Required
   • Space

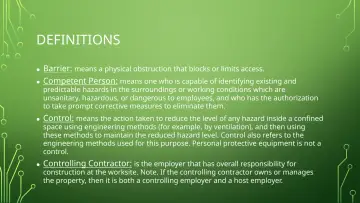

9. Slide 9

   DEFINITIONS

   • Barrier: means a physical obstruction that blocks or limits access.
   • Competent Person: means one who is capable of identifying existing and
   • predictable hazards in the surroundings or working conditions which are unsanitary, hazardous, or dangerous to employees, and who has the authorization to take prompt corrective measures to eliminate them.
   • Control: means the action taken to reduce the level of any hazard inside a confined
   • space using engineering methods (for example, by ventilation), and then using these methods to maintain the reduced hazard level. Control also refers to the engineering methods used for this purpose. Personal protective equipment is not a control.
   • Controlling Contractor: is the employer that has overall responsibility for
   • construction at the worksite. Note. If the controlling contractor owns or manages the property, then it is both a controlling employer and a host employer.

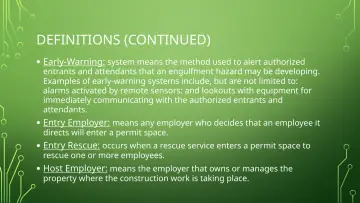

10. Slide 10

    DEFINITIONS (CONTINUED)

    • Early-Warning: system means the method used to alert authorized
    • entrants and attendants that an engulfment hazard may be developing. Examples of early-warning systems include, but are not limited to: alarms activated by remote sensors; and lookouts with equipment for immediately communicating with the authorized entrants and attendants.
    • Entry Employer: means any employer who decides that an employee it
    • directs will enter a permit space.
    • Entry Rescue: occurs when a rescue service enters a permit space to
    • rescue one or more employees.
    • Host Employer: means the employer that owns or manages the
    • property where the construction work is taking place.
11. Slide 11

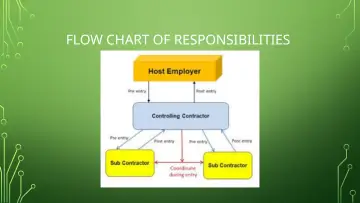

    FLOW CHART OF RESPONSIBILITIES

12. Slide 12

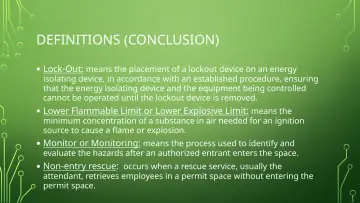

    DEFINITIONS (CONCLUSION)

    • Lock-Out: means the placement of a lockout device on an energy
    • isolating device, in accordance with an established procedure, ensuring that the energy isolating device and the equipment being controlled cannot be operated until the lockout device is removed.
    • Lower Flammable Limit or Lower Explosive Limit: means the
    • minimum concentration of a substance in air needed for an ignition source to cause a flame or explosion.
    • Monitor or Monitoring: means the process used to identify and
    • evaluate the hazards after an authorized entrant enters the space.
    • Non-entry rescue: occurs when a rescue service, usually the
    • attendant, retrieves employees in a permit space without entering the permit space.

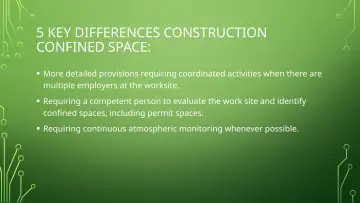

13. Slide 13

    5 KEY DIFFERENCES CONSTRUCTION CONFINED SPACE:

    • More detailed provisions requiring coordinated activities when there are multiple employers at the worksite.
    • Requiring a competent person to evaluate the work site and identify confined spaces, including permit spaces.
    • Requiring continuous atmospheric monitoring whenever possible.

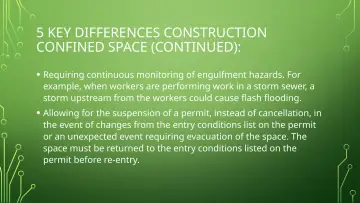

14. Slide 14

    5 KEY DIFFERENCES CONSTRUCTION CONFINED SPACE (CONTINUED):

    • Requiring continuous monitoring of engulfment hazards. For example, when workers are performing work in a storm sewer, a storm upstream from the workers could cause flash flooding.
    • Allowing for the suspension of a permit, instead of cancellation, in the event of changes from the entry conditions list on the permit or an unexpected event requiring evacuation of the space. The space must be returned to the entry conditions listed on the permit before re-entry.

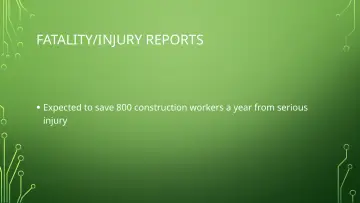

15. Slide 15

    FATALITY/INJURY REPORTS

    • Expected to save 800 construction workers a year from serious injury

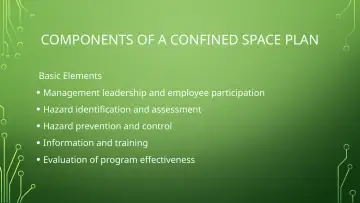

16. Slide 16

    COMPONENTS OF A CONFINED SPACE PLAN

    • Basic Elements
    • Management leadership and employee participation
    • Hazard identification and assessment
    • Hazard prevention and control
    • Information and training
    • Evaluation of program effectiveness

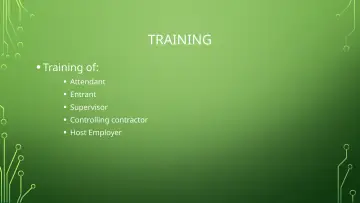

17. Slide 17

    TRAINING

    • Training of:
    • Attendant
    • Entrant
    • Supervisor
    • Controlling contractor
    • Host Employer

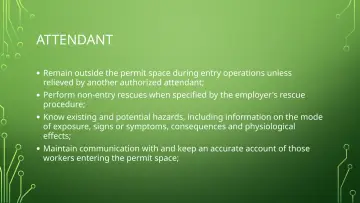

18. Slide 18

    ATTENDANT

    • Remain outside the permit space during entry operations unless relieved by another authorized attendant;
    • Perform non-entry rescues when specified by the employer's rescue procedure;
    • Know existing and potential hazards, including information on the mode of exposure, signs or symptoms, consequences and physiological effects;
    • Maintain communication with and keep an accurate account of those workers entering the permit space;

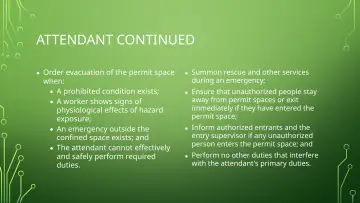

19. Slide 19

    ATTENDANT CONTINUED

    • Order evacuation of the permit space when:
    • A prohibited condition exists;
    • A worker shows signs of physiological effects of hazard exposure;
    • An emergency outside the confined space exists; and
    • The attendant cannot effectively and safely perform required duties.
    • Summon rescue and other services
    • during an emergency;
    • Ensure that unauthorized people stay
    • away from permit spaces or exit immediately if they have entered the permit space;
    • Inform authorized entrants and the
    • entry supervisor if any unauthorized person enters the permit space; and
    • Perform no other duties that interfere
    • with the attendant's primary duties.

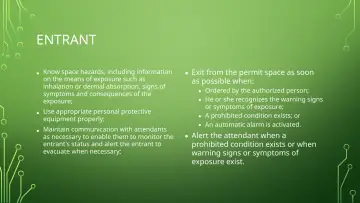

20. Slide 20

    ENTRANT

    • Know space hazards, including information
    • on the means of exposure such as inhalation or dermal absorption, signs of symptoms and consequences of the exposure;
    • Use appropriate personal protective equipment properly;
    • Maintain communication with attendants
    • as necessary to enable them to monitor the entrant's status and alert the entrant to evacuate when necessary;
    • Exit from the permit space as soon as possible when:
    • Ordered by the authorized person;
    • He or she recognizes the warning signs or symptoms of exposure;
    • A prohibited condition exists; or
    • An automatic alarm is activated.
    • Alert the attendant when a prohibited condition exists or when warning signs or symptoms of exposure exist.

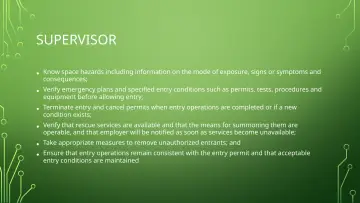

21. Slide 21

    SUPERVISOR

    • Know space hazards including information on the mode of exposure, signs or symptoms and
    • consequences;
    • Verify emergency plans and specified entry conditions such as permits, tests, procedures and
    • equipment before allowing entry;
    • Terminate entry and cancel permits when entry operations are completed or if a new
    • condition exists;
    • Verify that rescue services are available and that the means for summoning them are
    • operable, and that employer will be notified as soon as services become unavailable;
    • Take appropriate measures to remove unauthorized entrants; and
    • Ensure that entry operations remain consistent with the entry permit and that acceptable
    • entry conditions are maintained

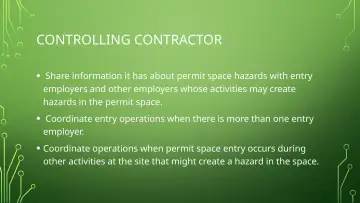

22. Slide 22

    CONTROLLING CONTRACTOR

    • Share information it has about permit space hazards with entry employers and other employers whose activities may create hazards in the permit space.
    • Coordinate entry operations when there is more than one entry employer.
    • Coordinate operations when permit space entry occurs during other activities at the site that might create a hazard in the space.
23. Slide 23

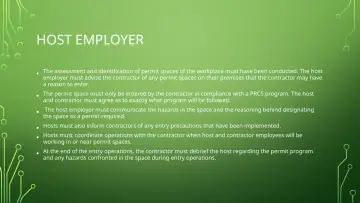

    HOST EMPLOYER

    • The assessment and identification of permit spaces of the workplace must have been conducted. The host
    • employer must advise the contractor of any permit spaces on their premises that the contractor may have a reason to enter.
    • The permit space must only be entered by the contractor in compliance with a PRCS program. The host
    • and contractor must agree as to exactly what program will be followed.
    • The host employer must communicate the hazards in the space and the reasoning behind designating the space as a permit-required.
    • Hosts must also inform contractors of any entry precautions that have been implemented.
    • Hosts must coordinate operations with the contractor when host and contractor employees will be
    • working in or near permit spaces.
    • At the end of the entry operations, the contractor must debrief the host regarding the permit program
    • and any hazards confronted in the space during entry operations.

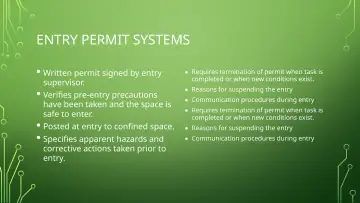

24. Slide 24

    ENTRY PERMIT SYSTEMS

    • Written permit signed by entry
    • Requires termination of permit when task is
    • Verifies pre-entry precautions
    • Reasons for suspending the entry
    • Communication procedures during entry
    • supervisor.
    • have been taken and the space is safe to enter.
    • Posted at entry to confined space.
    • Specifies apparent hazards and
    • corrective actions taken prior to entry.
    • completed or when new conditions exist.
25. Slide 25

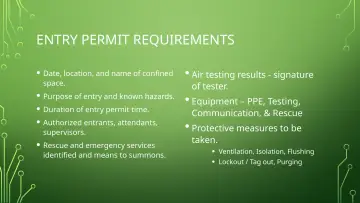

    Purpose of entry and known hazards. • Equipment – PPE, Testing,

    • ENTRY PERMIT REQUIREMENTS
    • Date, location, and name of confined
    • space.
    • Air testing results - signature
    • of tester.
    • Duration of entry permit time.
    • Communication, & Rescue
    • Authorized entrants, attendants,
    • Protective measures to be
    • supervisors.
    • Rescue and emergency services
    • identified and means to summons.
    • taken.
    • Ventilation, Isolation, Flushing
    • Lockout / Tag out, Purging

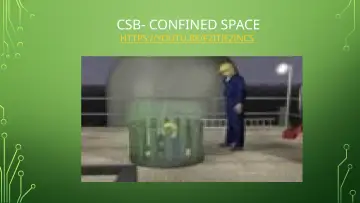

26. Slide 26

    CSB- CONFINED SPACE

    • HTTPS://YOUTU.BE/F2ITJE2INCS
27. Slide 27

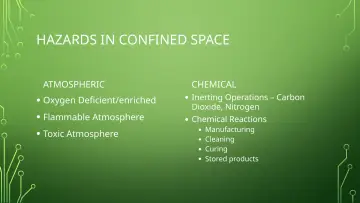

    HAZARDS IN CONFINED SPACE

    • ATMOSPHERIC
    • Oxygen Deficient/enriched
    • Flammable Atmosphere
    • Toxic Atmosphere
    • CHEMICAL
    • Inerting Operations – Carbon
    • Dioxide, Nitrogen
    • Chemical Reactions
    • Manufacturing
    • Cleaning
    • Curing
    • Stored products
28. Slide 28

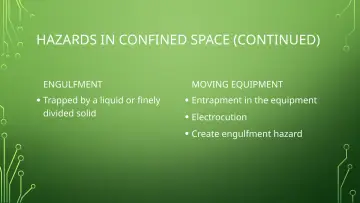

    HAZARDS IN CONFINED SPACE (CONTINUED)

    • ENGULFMENT
    • Trapped by a liquid or finely divided solid
    • MOVING EQUIPMENT
    • Entrapment in the equipment
    • Electrocution
    • Create engulfment hazard
29. Slide 29

    HAZARDS IN CONFINED SPACE (CONCLUSION)

    • MANY OTHER HAZARDS
    • Falls
    • Poor Lighting
    • Noise
    • Electrical
    • Thermal
30. Slide 30

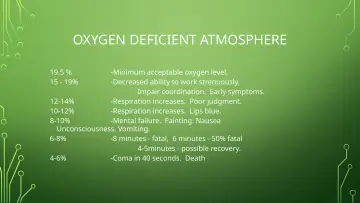

    OXYGEN DEFICIENT ATMOSPHERE

    • 19.5 %
    • 15 - 19%
    • -Minimum acceptable oxygen level.
    • -Decreased ability to work strenuously.
    • Impair coordination. Early symptoms.
    • 12-14%
    • -Respiration increases. Poor judgment.
    • 10-12%
    • -Respiration increases. Lips blue.
    • 8-10%
    • -Mental failure. Fainting. Nausea
    • Unconsciousness. Vomiting.
    • 6-8%
    • -8 minutes - fatal, 6 minutes - 50% fatal
    • 4-5minutes - possible recovery.
    • 4-6%
    • -Coma in 40 seconds. Death

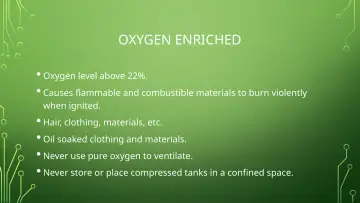

31. Slide 31

    OXYGEN ENRICHED

    • Oxygen level above 22%.
    • Causes flammable and combustible materials to burn violently
    • when ignited.
    • Hair, clothing, materials, etc.
    • Oil soaked clothing and materials.
    • Never use pure oxygen to ventilate.
    • Never store or place compressed tanks in a confined space.
32. Slide 32

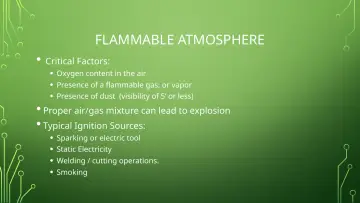

    FLAMMABLE ATMOSPHERE

    • Critical Factors:
    • Oxygen content in the air
    • Presence of a flammable gas, or vapor
    • Presence of dust (visibility of 5’ or less)
    • Proper air/gas mixture can lead to explosion
    • Typical Ignition Sources:
    • Sparking or electric tool
    • Static Electricity
    • Welding / cutting operations.
    • Smoking

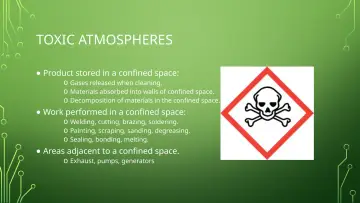

33. Slide 33

    TOXIC ATMOSPHERES

    • Product stored in a confined space:
    • Gases released when cleaning.
    • Materials absorbed into walls of confined space.
    • Decomposition of materials in the confined space.
    • Work performed in a confined space:
    • Welding, cutting, brazing, soldering.
    • Painting, scraping, sanding, degreasing.
    • Sealing, bonding, melting.
    • Areas adjacent to a confined space.
    • Exhaust, pumps, generators
34. Slide 34

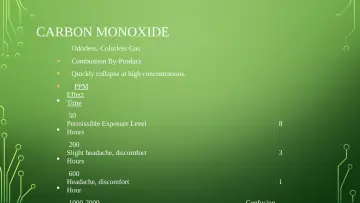

    CARBON MONOXIDE

    • Odorless, Colorless Gas.
    • Combustion By-Product.
    • Quickly collapse at high concentrations.
    • PPM Effect Time
    • Permissible Exposure Level
    • Hours
    • Slight headache, discomfort
    • Hours
    • Headache, discomfort
    • Hour

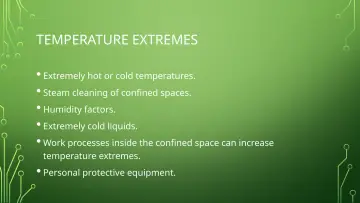

35. Slide 35

    TEMPERATURE EXTREMES

    • Extremely hot or cold temperatures.
    • Steam cleaning of confined spaces.
    • Humidity factors.
    • Extremely cold liquids.
    • Work processes inside the confined space can increase
    • temperature extremes.
    • Personal protective equipment.
36. Slide 36

    ENGULFMENT HAZARDS

    • Loose, granular materials stored in bins and hoppers - grain,
    • sand, coal, etc.
    • Crusting and bridging below a worker.
    • Flooding of confined space.
    • Water or sewage flow.

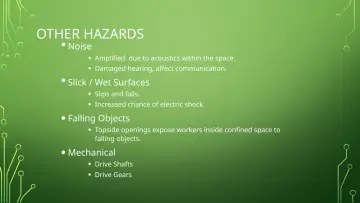

37. Slide 37

    OTHER HAZARDS

    • Noise
    • Amplified due to acoustics within the space.
    • Damaged hearing, affect communication.
    • Slick / Wet Surfaces
    • Slips and falls.
    • Increased chance of electric shock.
    • Falling Objects
    • Topside openings expose workers inside confined space to falling objects.
    • Mechanical
    • Drive Shafts
    • Drive Gears

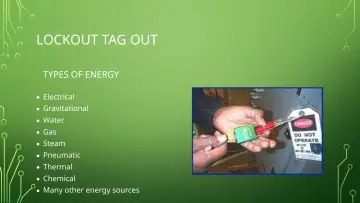

38. Slide 38

    LOCKOUT TAG OUT

    • TYPES OF ENERGY
    • Electrical
    • Gravitational
    • Water
    • Gas
    • Steam
    • Pneumatic
    • Thermal
    • Chemical
    • Many other energy sources

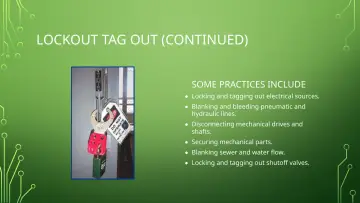

39. Slide 39

    LOCKOUT TAG OUT (CONTINUED)

    • SOME PRACTICES INCLUDE
    • Locking and tagging out electrical sources.
    • Blanking and bleeding pneumatic and
    • hydraulic lines.
    • Disconnecting mechanical drives and
    • shafts.
    • Securing mechanical parts.
    • Blanking sewer and water flow.
    • Locking and tagging out shutoff valves.

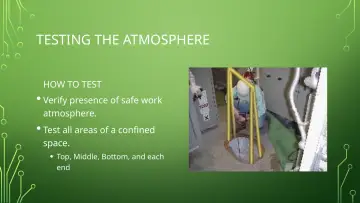

40. Slide 40

    TESTING THE ATMOSPHERE

    • HOW TO TEST
    • Verify presence of safe work
    • atmosphere.
    • Test all areas of a confined
    • space.
    • Top, Middle, Bottom, and each end
    • WHAT TO TEST WITH

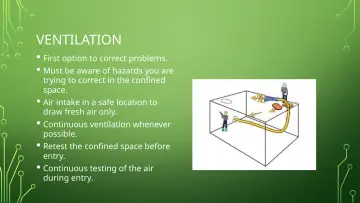

41. Slide 41

    VENTILATION

    • First option to correct problems.
    • Must be aware of hazards you are
    • trying to correct in the confined space.
    • Air intake in a safe location to
    • draw fresh air only.
    • Continuous ventilation whenever
    • possible.
    • Retest the confined space before
    • entry.
    • Continuous testing of the air
    • during entry.
42. Slide 42

    VENTILATION (CONTINUED)

    • NATURAL
    • MECHANICAL
    • Natural forces pull out the
    • Use of fans and blowers, can
    • atmosphere and replace it
    • Very slow process
    • be used to push new air in or pull out existing atmosphere
    • Only limited by the size of equipment used
43. Slide 43

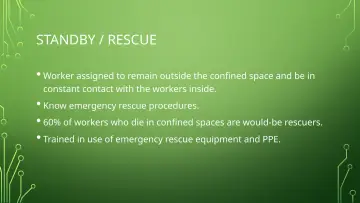

    STANDBY / RESCUE

    • Worker assigned to remain outside the confined space and be in
    • constant contact with the workers inside.
    • Know emergency rescue procedures.
    • 60% of workers who die in confined spaces are would-be rescuers.
    • Trained in use of emergency rescue equipment and PPE.
44. Slide 44

    RESCUE

    • NON ENTRY RESCUE
    • Rescue is performed outside the space
    • Prior to entry, a retrieval system and a body harness should be in place
    • SELF RESCUE
    • Entrant is capable to
    • recognizing a hazard is present and is able to exit from the space

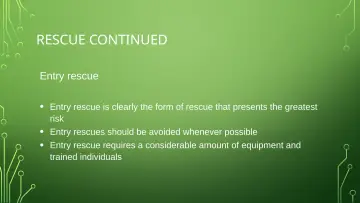

45. Slide 45

    RESCUE CONTINUED

    • Entry rescue
    • Entry rescue is clearly the form of rescue that presents the greatest
    • risk
    • Entry rescues should be avoided whenever possible
    • Entry rescue requires a considerable amount of equipment and trained individuals
46. Slide 46

    CSB- NO ESCAPE

    • HTTPS://YOUTU.BE/BEAX0IRJYD8

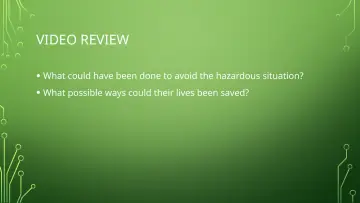

47. Slide 47

    VIDEO REVIEW

    • What could have been done to avoid the hazardous situation?
    • What possible ways could their lives been saved?
48. Slide 48

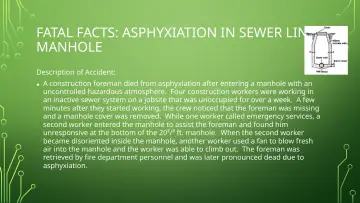

    FATAL FACTS: ASPHYXIATION IN SEWER LINE MANHOLE

    • Description of Accident:
    • A construction foreman died from asphyxiation after entering a manhole with an
    • uncontrolled hazardous atmosphere. Four construction workers were working in an inactive sewer system on a jobsite that was unoccupied for over a week. A few minutes after they started working, the crew noticed that the foreman was missing and a manhole cover was removed. While one worker called emergency services, a second worker entered the manhole to assist the foreman and found him unresponsive at the bottom of the 20²/³ ft. manhole. When the second worker became disoriented inside the manhole, another worker used a fan to blow fresh air into the manhole and the worker was able to climb out. The foreman was retrieved by fire department personnel and was later pronounced dead due to asphyxiation.

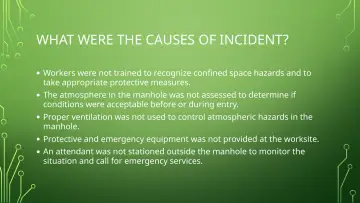

49. Slide 49

    WHAT WERE THE CAUSES OF INCIDENT?

    • Workers were not trained to recognize confined space hazards and to take appropriate protective measures.
    • The atmosphere in the manhole was not assessed to determine if conditions were acceptable before or during entry.
    • Proper ventilation was not used to control atmospheric hazards in the manhole.
    • Protective and emergency equipment was not provided at the worksite.
    • An attendant was not stationed outside the manhole to monitor the situation and call for emergency services.

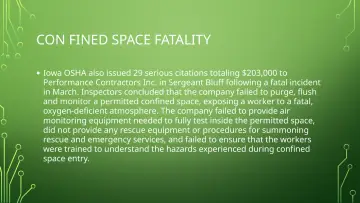

50. Slide 50

    CON FINED SPACE FATALITY

    • Iowa OSHA also issued 29 serious citations totaling $203,000 to
    • Performance Contractors Inc. in Sergeant Bluff following a fatal incident in March. Inspectors concluded that the company failed to purge, flush and monitor a permitted confined space, exposing a worker to a fatal, oxygen-deficient atmosphere. The company failed to provide air monitoring equipment needed to fully test inside the permitted space, did not provide any rescue equipment or procedures for summoning rescue and emergency services, and failed to ensure that the workers were trained to understand the hazards experienced during confined space entry.

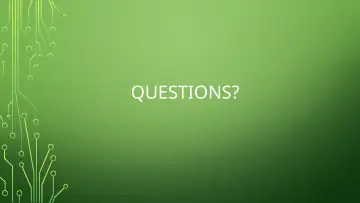

51. Slide 51

    QUESTIONS?

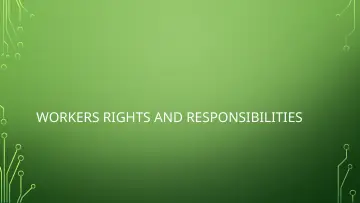

52. Slide 52
    • WORKERS RIGHTS AND RESPONSIBILITIES

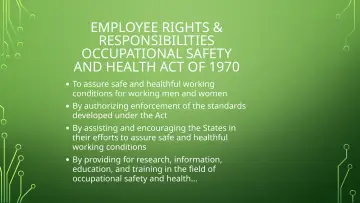

53. Slide 53

    EMPLOYEE RIGHTS &

    • RESPONSIBILITIES
    • OCCUPATIONAL SAFETY
    • AND HEALTH ACT OF 1970
    • To assure safe and healthful working conditions for working men and women
    • By authorizing enforcement of the standards developed under the Act
    • By assisting and encouraging the States in their efforts to assure safe and healthful working conditions
    • By providing for research, information, education, and training in the field of occupational safety and health…

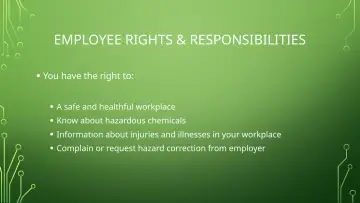

54. Slide 54

    EMPLOYEE RIGHTS & RESPONSIBILITIES

    • You have the right to:
    • A safe and healthful workplace
    • Know about hazardous chemicals
    • Information about injuries and illnesses in your workplace
    • Complain or request hazard correction from employer

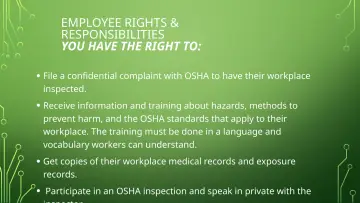

55. Slide 55

    EMPLOYEE RIGHTS & RESPONSIBILITIES YOU HAVE THE RIGHT TO:

    • File a confidential complaint with OSHA to have their workplace inspected.
    • Receive information and training about hazards, methods to prevent harm, and the OSHA standards that apply to their workplace. The training must be done in a language and vocabulary workers can understand.
    • Get copies of their workplace medical records and exposure records.
    • Participate in an OSHA inspection and speak in private with the

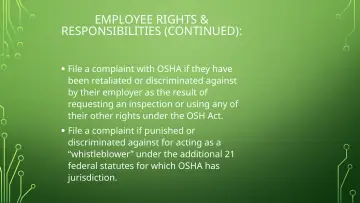

56. Slide 56

    EMPLOYEE RIGHTS &

    • RESPONSIBILITIES (CONTINUED):
    • File a complaint with OSHA if they have been retaliated or discriminated against by their employer as the result of requesting an inspection or using any of their other rights under the OSH Act.
    • File a complaint if punished or discriminated against for acting as a “whistleblower” under the additional 21 federal statutes for which OSHA has jurisdiction.
57. Slide 57

    WHISTLEBLOWER PROTECTION

    • Whistleblower Protection Advisory Committee (WPAC) was established to advise, consult with, and make recommendations to the Secretary of Labor and the Assistant Secretary of Labor for Occupational Safety and Health on ways to improve the fairness, efficiency, effectiveness, and transparency of OSHA's administration of whistleblower protections. In particular, the committee advises OSHA on the development and implementation of improved customer service models, enhancements in the investigative and enforcement process, training, and regulations governing OSHA investigations. In addition, WPAC advises OSHA in cooperative activities with other federal agencies that are responsible for areas covered by the whistleblower protection statutes enforced by OSHA.
58. Slide 58

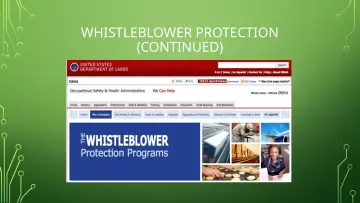

    WHISTLEBLOWER PROTECTION

    • (CONTINUED)
59. Slide 59

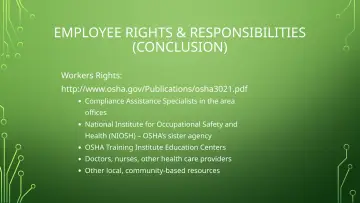

    EMPLOYEE RIGHTS & RESPONSIBILITIES (CONCLUSION)

    • Workers Rights:
    • http://www.osha.gov/Publications/osha3021.pdf
    • Compliance Assistance Specialists in the area offices
    • National Institute for Occupational Safety and
    • Health (NIOSH) – OSHA’s sister agency
    • OSHA Training Institute Education Centers
    • Doctors, nurses, other health care providers
    • Other local, community-based resources
