Module 15: Permit-Required Confined Space Entry

The words on each slide as the author wrote them, read from the file by software so they can be searched. Layout, pictures and tables are not shown here: the slides above and the download are the original.

1. Slide 1

   MODULE 15

   • Permit-Required Confined Space Entry
2. Slide 2

   CONFINED SPACE ENTRY

   • FOR EXAMPLE…
   • Subtitles & Transitions

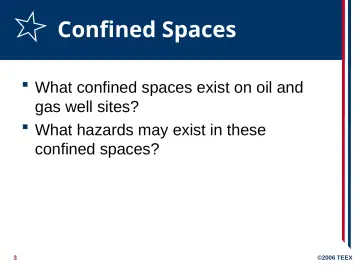

3. Slide 3

   Confined Spaces

   • What confined spaces exist on oil and gas well sites?
   • What hazards may exist in these confined spaces?

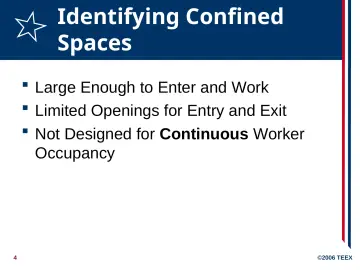

4. Slide 4

   Identifying Confined Spaces

   • Large Enough to Enter and Work
   • Limited Openings for Entry and Exit
   • Not Designed for Continuous Worker Occupancy

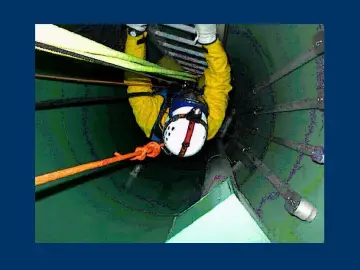

5. Slide 5

   FOR EXAMPLE…

   • Subtitles & Transitions
6. Slide 6

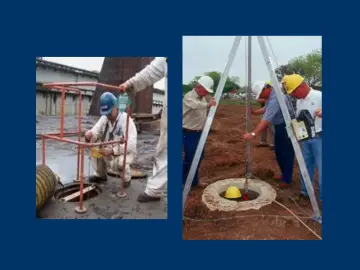

   FOR EXAMPLE…

   • Subtitles & Transitions
7. Slide 7

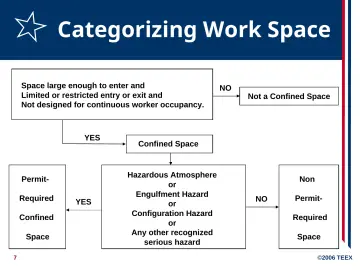

   Categorizing Work Space

   • Space large enough to enter and
   • Limited or restricted entry or exit and
   • Not designed for continuous worker occupancy.
   • YES
   • Permit-
   • Required
   • Confined
   • Space
   • YES
   • NO
   • Not a Confined Space
   • Confined Space
   • Hazardous Atmosphere or
   • Engulfment Hazard
   • or
   • Configuration Hazard or
   • Any other recognized serious hazard
   • Non
   • NO
   • Permit-
   • Required
   • Space

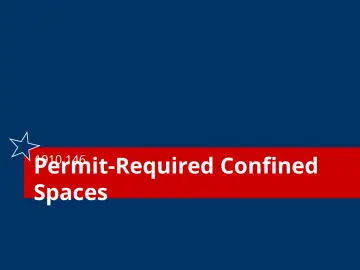

8. Slide 8

   Permit-Required Confined Spaces

   • 1910.146

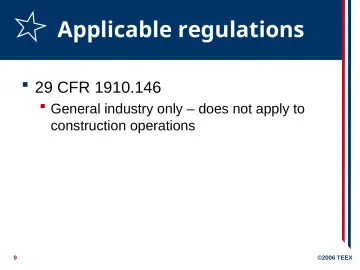

9. Slide 9

   Applicable regulations

   • 29 CFR 1910.146
   • General industry only – does not apply to construction operations
10. Slide 10

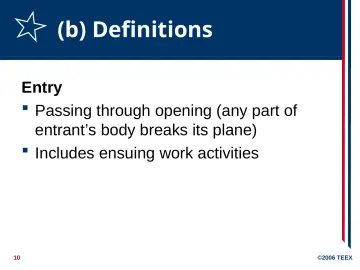

    (b) Definitions

    • Entry
    • Passing through opening (any part of entrant’s body breaks its plane)
    • Includes ensuing work activities

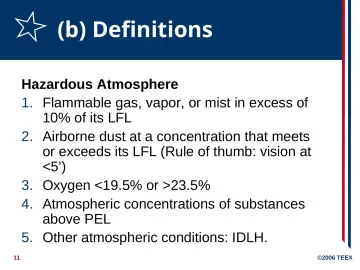

11. Slide 11

    (b) Definitions

    • Hazardous Atmosphere
    • 1. Flammable gas, vapor, or mist in excess of 10% of its LFL
    • 2. Airborne dust at a concentration that meets or exceeds its LFL (Rule of thumb: vision at <5’)
    • 3. Oxygen <19.5% or >23.5%
    • 4. Atmospheric concentrations of substances above PEL
    • 5. Other atmospheric conditions: IDLH.
12. Slide 12

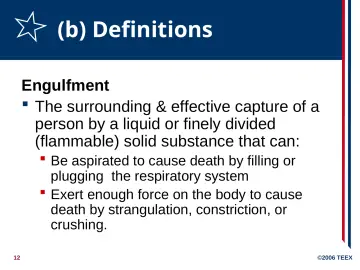

    (b) Definitions

    • Engulfment
    • The surrounding & effective capture of a person by a liquid or finely divided (flammable) solid substance that can:
    • Be aspirated to cause death by filling or plugging the respiratory system
    • Exert enough force on the body to cause death by strangulation, constriction, or crushing.

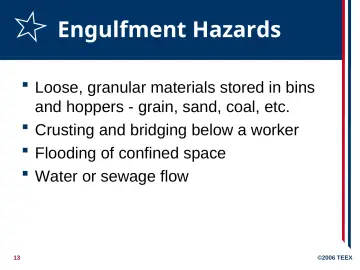

13. Slide 13

    Engulfment Hazards

    • Loose, granular materials stored in bins and hoppers - grain, sand, coal, etc.
    • Crusting and bridging below a worker
    • Flooding of confined space
    • Water or sewage flow

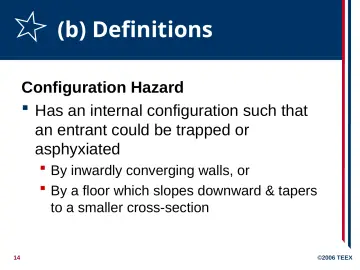

14. Slide 14

    (b) Definitions

    • Configuration Hazard
    • Has an internal configuration such that an entrant could be trapped or asphyxiated
    • By inwardly converging walls, or
    • By a floor which slopes downward & tapers to a smaller cross-section

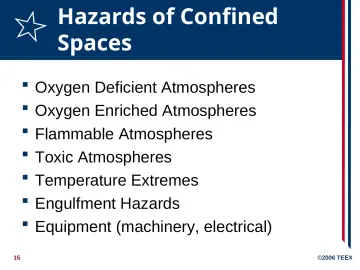

15. Slide 15

    Hazards of Confined Spaces

    • Oxygen Deficient Atmospheres
    • Oxygen Enriched Atmospheres
    • Flammable Atmospheres
    • Toxic Atmospheres
    • Temperature Extremes
    • Engulfment Hazards
    • Equipment (machinery, electrical)

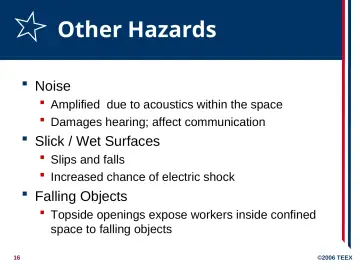

16. Slide 16

    Other Hazards

    • Noise
    • Amplified due to acoustics within the space
    • Damages hearing; affect communication
    • Slick / Wet Surfaces
    • Slips and falls
    • Increased chance of electric shock
    • Falling Objects
    • Topside openings expose workers inside confined space to falling objects

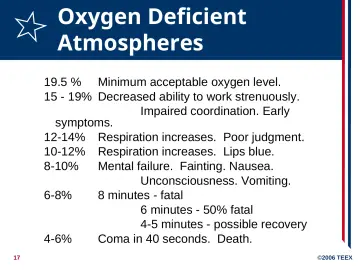

17. Slide 17

    Oxygen Deficient Atmospheres

    • 19.5 % Minimum acceptable oxygen level.
    • 15 - 19% Decreased ability to work strenuously.
    • Impaired coordination. Early
    • symptoms.
    • 12-14% Respiration increases. Poor judgment.
    • 10-12% Respiration increases. Lips blue.
    • 8-10%
    • Mental failure. Fainting. Nausea.
    • Unconsciousness. Vomiting.
    • 6-8%
    • 8 minutes - fatal
    • 6 minutes - 50% fatal
    • 4-5 minutes - possible recovery
    • 4-6%
    • Coma in 40 seconds. Death.
18. Slide 18

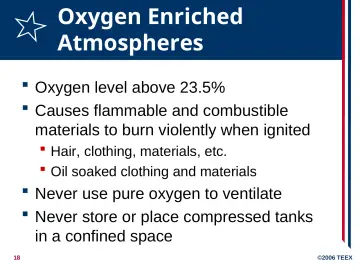

    Oxygen Enriched Atmospheres

    • Oxygen level above 23.5%
    • Causes flammable and combustible materials to burn violently when ignited
    • Hair, clothing, materials, etc.
    • Oil soaked clothing and materials
    • Never use pure oxygen to ventilate
    • Never store or place compressed tanks in a confined space
19. Slide 19

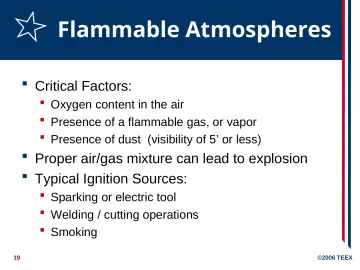

    Flammable Atmospheres

    • Critical Factors:
    • Oxygen content in the air
    • Presence of a flammable gas, or vapor
    • Presence of dust (visibility of 5’ or less)
    • Proper air/gas mixture can lead to explosion
    • Typical Ignition Sources:
    • Sparking or electric tool
    • Welding / cutting operations
    • Smoking

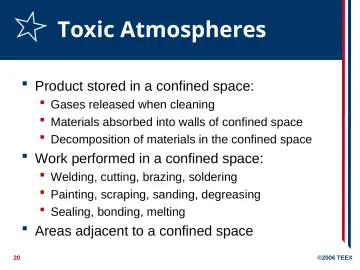

20. Slide 20

    Toxic Atmospheres

    • Product stored in a confined space:
    • Gases released when cleaning
    • Materials absorbed into walls of confined space
    • Decomposition of materials in the confined space
    • Work performed in a confined space:
    • Welding, cutting, brazing, soldering
    • Painting, scraping, sanding, degreasing
    • Sealing, bonding, melting
    • Areas adjacent to a confined space
21. Slide 21

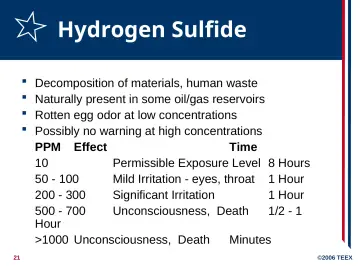

    Hydrogen Sulfide

    • Decomposition of materials, human waste
    • Naturally present in some oil/gas reservoirs
    • Rotten egg odor at low concentrations
    • Possibly no warning at high concentrations
    • PPM Effect
    • Time
    • Permissible Exposure Level 8 Hours
    • 50 - 100
    • Mild Irritation - eyes, throat 1 Hour
    • 200 - 300
    • Significant Irritation
    • 1 Hour
    • 500 - 700
    • Unconsciousness, Death
    • 1/2 - 1
    • Hour
    • >1000 Unconsciousness, Death
    • Minutes

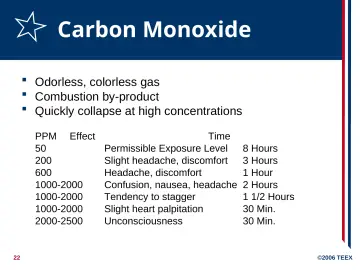

22. Slide 22

    Carbon Monoxide

    • Odorless, colorless gas
    • Combustion by-product
    • Quickly collapse at high concentrations
    • PPM Effect
    • 1000-2000
    • 1000-2000
    • 1000-2000
    • 2000-2500
    • Time
    • Permissible Exposure Level 8 Hours
    • Slight headache, discomfort
    • 3 Hours
    • Headache, discomfort
    • 1 Hour
    • Confusion, nausea, headache 2 Hours
    • Tendency to stagger
    • 1 1/2 Hours
    • Slight heart palpitation
    • 30 Min.
    • Unconsciousness
    • 30 Min.
23. Slide 23

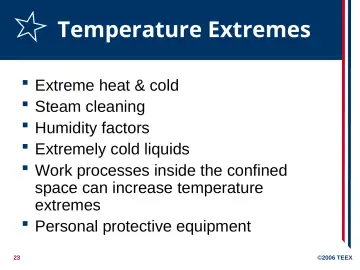

    Temperature Extremes

    • Extreme heat & cold
    • Steam cleaning
    • Humidity factors
    • Extremely cold liquids
    • Work processes inside the confined space can increase temperature extremes
    • Personal protective equipment

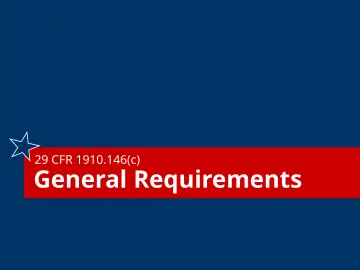

24. Slide 24

    29 CFR 1910.146(c)

    • General Requirements
25. Slide 25

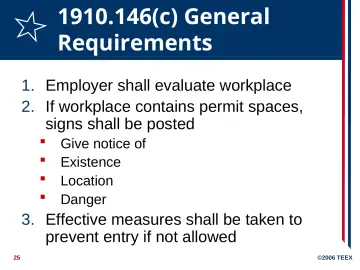

    1910.146(c) General Requirements

    • 1. Employer shall evaluate workplace
    • 2. If workplace contains permit spaces, signs shall be posted
    • Give notice of Existence
    • Location
    • Danger
    • 3. Effective measures shall be taken to prevent entry if not allowed

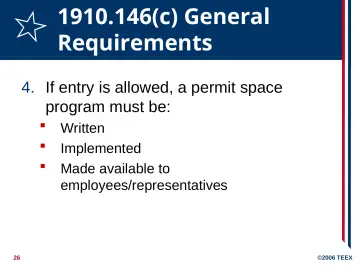

26. Slide 26

    1910.146(c) General Requirements

    • 4. If entry is allowed, a permit space program must be:
    • Written
    • Implemented
    • Made available to employees/representatives
27. Slide 27

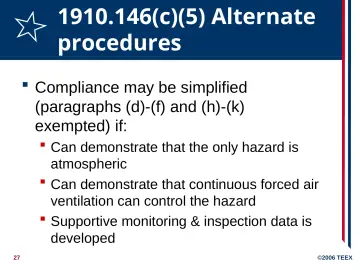

    1910.146(c)(5) Alternate procedures

    • Compliance may be simplified (paragraphs (d)-(f) and (h)-(k) exempted) if:
    • Can demonstrate that the only hazard is atmospheric
    • Can demonstrate that continuous forced air ventilation can control the hazard
    • Supportive monitoring & inspection data is developed
28. Slide 28

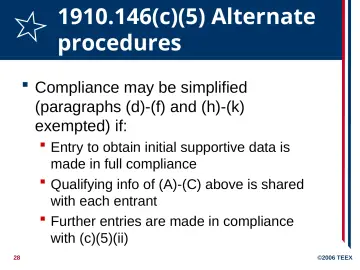

    1910.146(c)(5) Alternate procedures

    • Compliance may be simplified (paragraphs (d)-(f) and (h)-(k) exempted) if:
    • Entry to obtain initial supportive data is made in full compliance
    • Qualifying info of (A)-(C) above is shared with each entrant
    • Further entries are made in compliance with (c)(5)(ii)
29. Slide 29

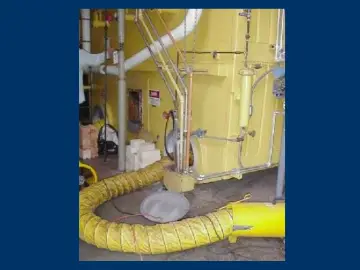

    FOR EXAMPLE…

    • Subtitles & Transitions

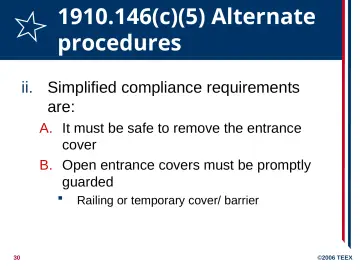

30. Slide 30

    1910.146(c)(5) Alternate procedures

    • ii. Simplified compliance requirements are:
    • A. It must be safe to remove the entrance cover
    • B. Open entrance covers must be promptly guarded
    • Railing or temporary cover/ barrier
31. Slide 31

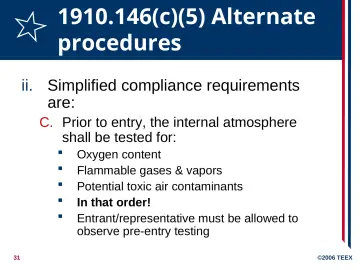

    1910.146(c)(5) Alternate procedures

    • ii. Simplified compliance requirements are:
    • C. Prior to entry, the internal atmosphere shall be tested for:
    • Oxygen content
    • Flammable gases & vapors
    • Potential toxic air contaminants
    • In that order!
    • Entrant/representative must be allowed to observe pre-entry testing

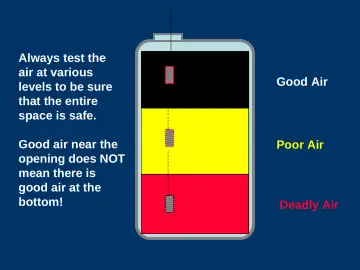

32. Slide 32
    • Always test the air at various levels to be sure that the entire space is safe.
    • Good air near the opening
    • does NOT
    • FOR EXAMPLE… mean there is good air at the bottom!
    • Good Air
    • Poor Air
    • Subtitles & Transitions
    • Deadly Air

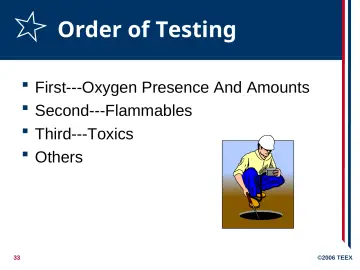

33. Slide 33

    Order of Testing

    • First---Oxygen Presence And Amounts
    • Second---Flammables
    • Third---Toxics
    • Others

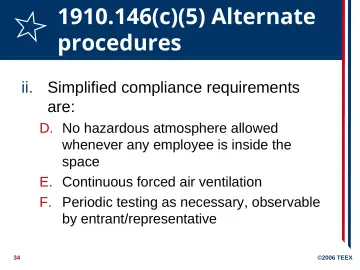

34. Slide 34

    1910.146(c)(5) Alternate procedures

    • ii. Simplified compliance requirements are:
    • D. No hazardous atmosphere allowed whenever any employee is inside the space
    • E. Continuous forced air ventilation
    • F. Periodic testing as necessary, observable by entrant/representative

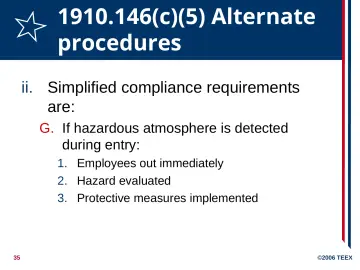

35. Slide 35

    1910.146(c)(5) Alternate procedures

    • ii. Simplified compliance requirements are:
    • G. If hazardous atmosphere is detected during entry:
    • 1. Employees out immediately
    • 2. Hazard evaluated
    • 3. Protective measures implemented
36. Slide 36

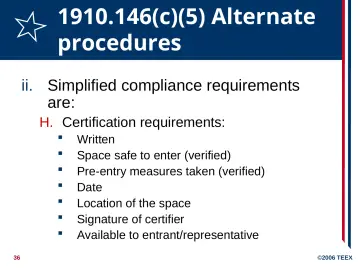

    1910.146(c)(5) Alternate procedures

    • ii. Simplified compliance requirements are:
    • H. Certification requirements:
    • Written
    • Space safe to enter (verified) Pre-entry measures taken (verified) Date
    • Location of the space
    • Signature of certifier
    • Available to entrant/representative
37. Slide 37

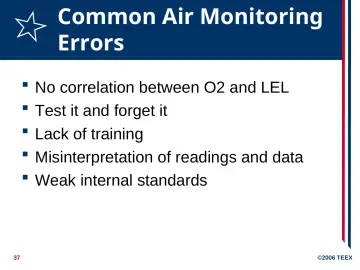

    Common Air Monitoring Errors

    • No correlation between O2 and LEL
    • Test it and forget it
    • Lack of training
    • Misinterpretation of readings and data
    • Weak internal standards

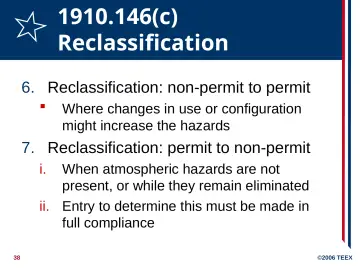

38. Slide 38

    1910.146(c) Reclassification

    • 6. Reclassification: non-permit to permit
    • Where changes in use or configuration might increase the hazards
    • 7. Reclassification: permit to non-permit
    • i.
    • When atmospheric hazards are not present, or while they remain eliminated
    • ii. Entry to determine this must be made in full compliance

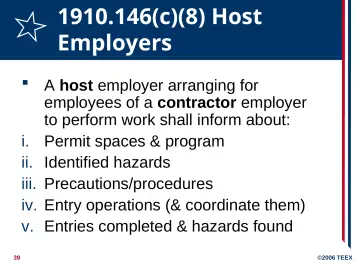

39. Slide 39

    1910.146(c)(8) Host Employers

    • A host employer arranging for employees of a contractor employer to perform work shall inform about:
    • i. Permit spaces & program
    • ii. Identified hazards
    • iii. Precautions/procedures
    • iv. Entry operations (& coordinate them)
    • v. Entries completed & hazards found

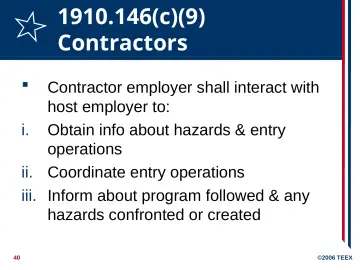

40. Slide 40

    1910.146(c)(9) Contractors

    • Contractor employer shall interact with host employer to:
    • i. Obtain info about hazards & entry operations
    • ii. Coordinate entry operations
    • iii. Inform about program followed & any hazards confronted or created
41. Slide 41

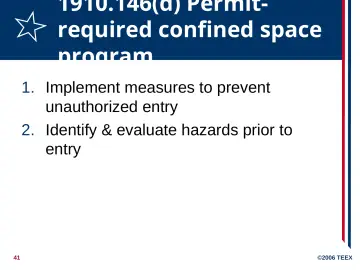

    1910.146(d) Permit-required confined space program

    • 1. Implement measures to prevent unauthorized entry
    • 2. Identify & evaluate hazards prior to entry

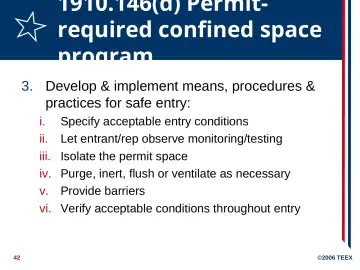

42. Slide 42

    1910.146(d) Permit-required confined space program

    • 3. Develop & implement means, procedures & practices for safe entry:
    • i. ii. iii. iv. v. vi.
    • Specify acceptable entry conditions
    • Let entrant/rep observe monitoring/testing Isolate the permit space
    • Purge, inert, flush or ventilate as necessary Provide barriers
    • Verify acceptable conditions throughout entry

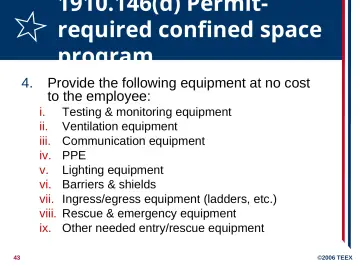

43. Slide 43

    1910.146(d) Permit-required confined space program

    • Provide the following equipment at no cost to the employee:
    • i. Testing & monitoring equipment
    • ii. Ventilation equipment
    • iii. Communication equipment
    • iv. PPE
    • v. Lighting equipment
    • vi. Barriers & shields
    • vii. Ingress/egress equipment (ladders, etc.)
    • viii. Rescue & emergency equipment
    • ix. Other needed entry/rescue equipment

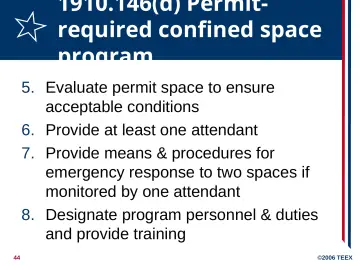

44. Slide 44

    1910.146(d) Permit-required confined space program

    • 5. Evaluate permit space to ensure acceptable conditions
    • 6. Provide at least one attendant
    • 7. Provide means & procedures for emergency response to two spaces if monitored by one attendant
    • 8. Designate program personnel & duties and provide training

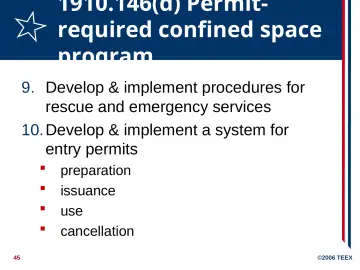

45. Slide 45

    1910.146(d) Permit-required confined space program

    • 9. Develop & implement procedures for rescue and emergency services
    • 10. Develop & implement a system for entry permits
    • preparation issuance use cancellation
46. Slide 46

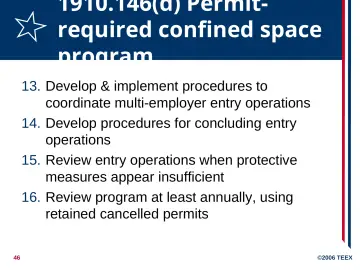

    1910.146(d) Permit-required confined space program

    • 13. Develop & implement procedures to coordinate multi-employer entry operations
    • 14. Develop procedures for concluding entry operations
    • 15. Review entry operations when protective measures appear insufficient
    • 16. Review program at least annually, using retained cancelled permits
47. Slide 47

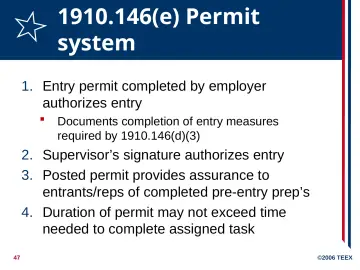

    1910.146(e) Permit system

    • 1. Entry permit completed by employer authorizes entry
    • Documents completion of entry measures required by 1910.146(d)(3)
    • 2. Supervisor’s signature authorizes entry
    • 3. Posted permit provides assurance to entrants/reps of completed pre-entry prep’s
    • 4. Duration of permit may not exceed time needed to complete assigned task

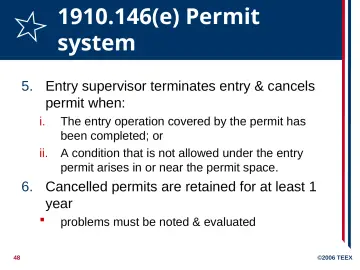

48. Slide 48

    1910.146(e) Permit system

    • 5. Entry supervisor terminates entry & cancels permit when:
    • i.
    • ii.
    • The entry operation covered by the permit has been completed; or
    • A condition that is not allowed under the entry permit arises in or near the permit space.
    • 6. Cancelled permits are retained for at least 1 year
    • problems must be noted & evaluated
49. Slide 49

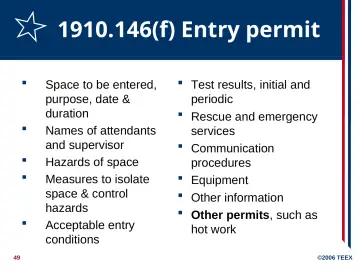

    1910.146(f) Entry permit

    • Space to be entered, purpose, date & duration
    • Names of attendants and supervisor Hazards of space Measures to isolate space & control hazards
    • Acceptable entry conditions
    • Test results, initial and periodic
    • Rescue and emergency services
    • Communication procedures
    • Equipment
    • Other information
    • Other permits, such as hot work
50. Slide 50

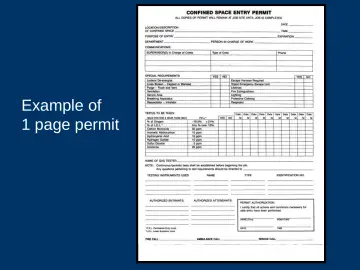

    Example of

    • 1 page permit
    • FOR EXAMPLE…
    • Subtitles & Transitions

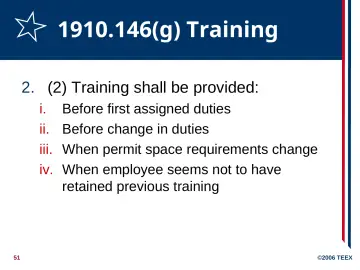

51. Slide 51

    1910.146(g) Training

    • 2. (2) Training shall be provided:
    • i. Before first assigned duties
    • ii. Before change in duties
    • iii. When permit space requirements change
    • iv. When employee seems not to have retained previous training
52. Slide 52

    FOR EXAMPLE…

    • Subtitles & Transitions

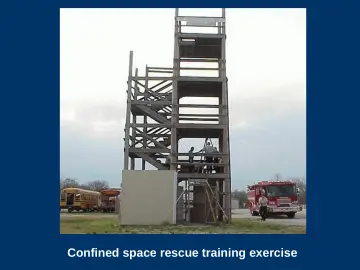

    • Confined space rescue training exercise
53. Slide 53

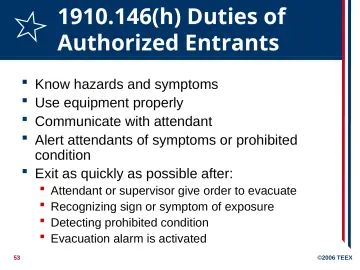

    1910.146(h) Duties of Authorized Entrants

    • Know hazards and symptoms
    • Use equipment properly
    • Communicate with attendant
    • Alert attendants of symptoms or prohibited condition
    • Exit as quickly as possible after:
    • Attendant or supervisor give order to evacuate
    • Recognizing sign or symptom of exposure
    • Detecting prohibited condition
    • Evacuation alarm is activated

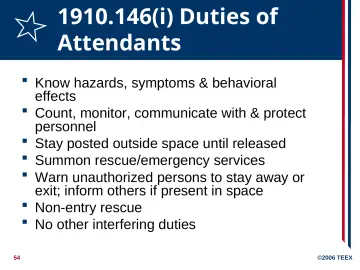

54. Slide 54

    1910.146(i) Duties of Attendants

    • Know hazards, symptoms & behavioral effects
    • Count, monitor, communicate with & protect personnel
    • Stay posted outside space until released
    • Summon rescue/emergency services
    • Warn unauthorized persons to stay away or exit; inform others if present in space
    • Non-entry rescue
    • No other interfering duties

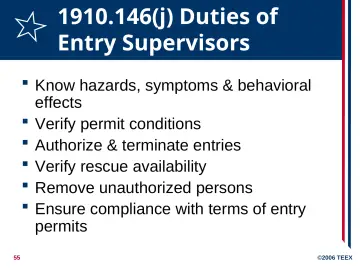

55. Slide 55

    1910.146(j) Duties of Entry Supervisors

    • Know hazards, symptoms & behavioral effects
    • Verify permit conditions
    • Authorize & terminate entries
    • Verify rescue availability
    • Remove unauthorized persons
    • Ensure compliance with terms of entry permits

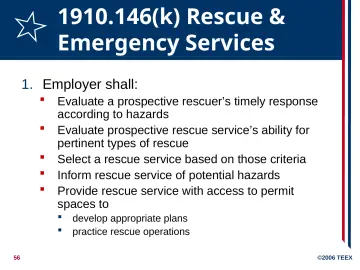

56. Slide 56

    1910.146(k) Rescue & Emergency Services

    • 1. Employer shall:
    • Evaluate a prospective rescuer’s timely response according to hazards
    • Evaluate prospective rescue service’s ability for pertinent types of rescue
    • Select a rescue service based on those criteria Inform rescue service of potential hazards Provide rescue service with access to permit spaces to
    • develop appropriate plans practice rescue operations
57. Slide 57

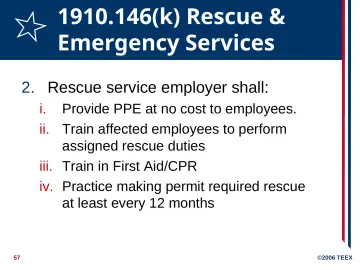

    1910.146(k) Rescue & Emergency Services

    • 2. Rescue service employer shall:
    • i. Provide PPE at no cost to employees.
    • ii. Train affected employees to perform assigned rescue duties
    • iii. Train in First Aid/CPR
    • iv. Practice making permit required rescue at least every 12 months

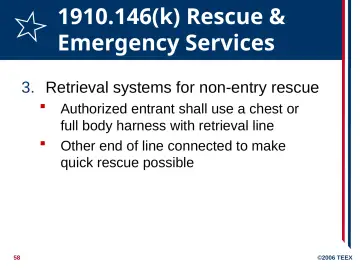

58. Slide 58

    1910.146(k) Rescue & Emergency Services

    • 3. Retrieval systems for non-entry rescue
    • Authorized entrant shall use a chest or full body harness with retrieval line Other end of line connected to make quick rescue possible
59. Slide 59

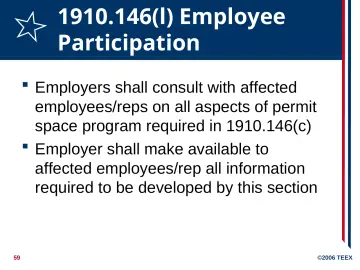

    1910.146(l) Employee Participation

    • Employers shall consult with affected employees/reps on all aspects of permit space program required in 1910.146(c)
    • Employer shall make available to affected employees/rep all information required to be developed by this section
60. Slide 60

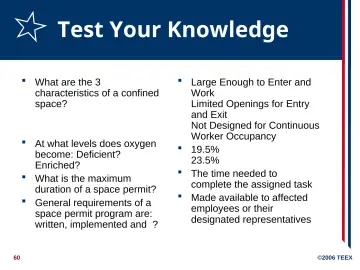

    Test Your Knowledge

    • What are the 3 characteristics of a confined space?
    • At what levels does oxygen become: Deficient? Enriched?
    • What is the maximum duration of a space permit?
    • General requirements of a space permit program are: written, implemented and ?
    • Large Enough to Enter and Work
    • Limited Openings for Entry and Exit
    • Not Designed for Continuous Worker Occupancy
    • 19.5% 23.5%
    • The time needed to complete the assigned task
    • Made available to affected employees or their designated representatives
