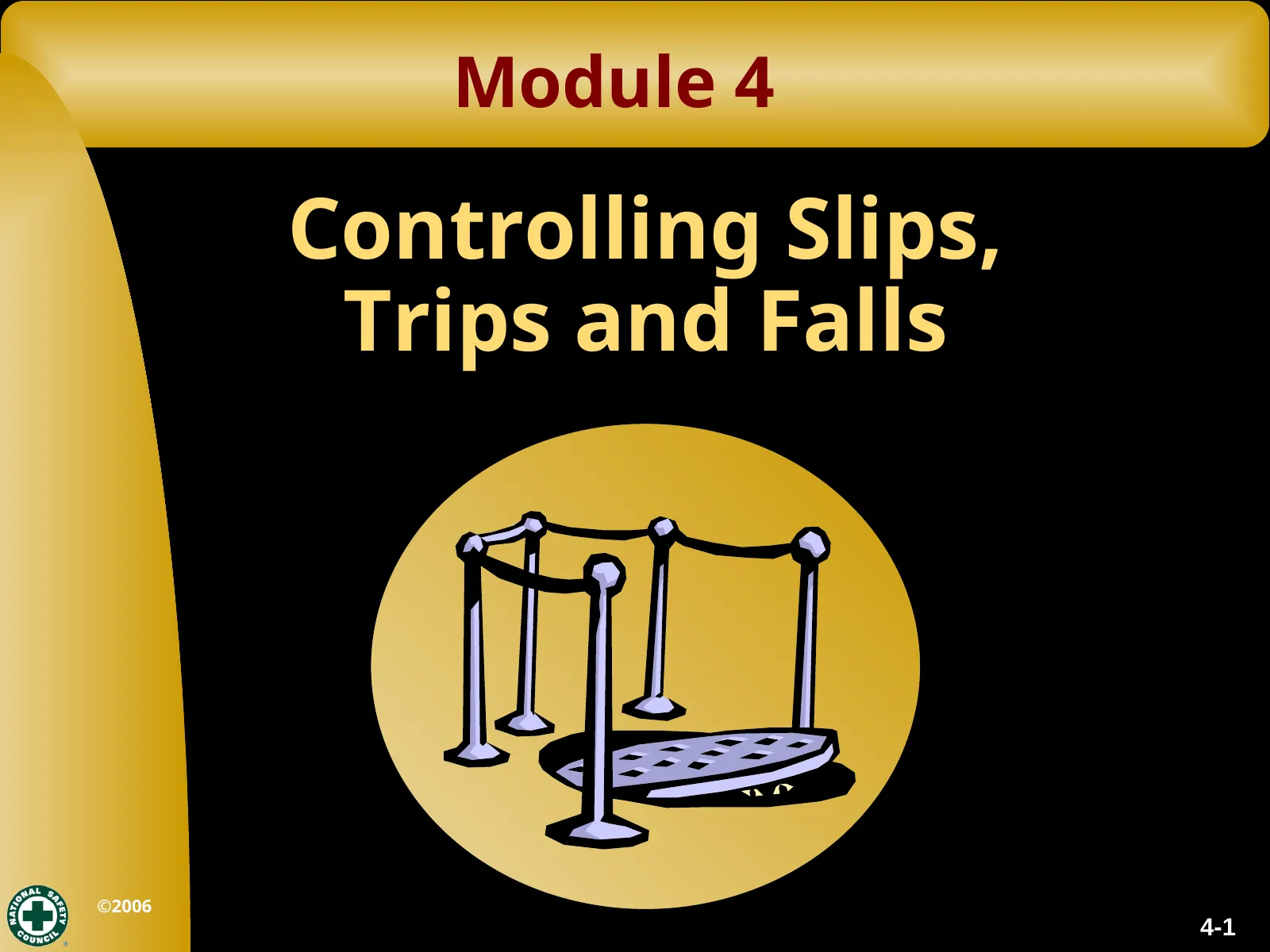

1. Slide 1

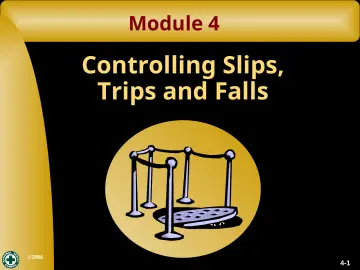

   Module 4

   • Controlling Slips, Trips and Falls

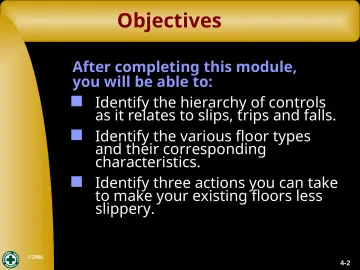

2. Slide 2

   Objectives

   • After completing this module, you will be able to:
   • Identify the hierarchy of controls as it relates to slips, trips and falls.
   • Identify the various floor types and their corresponding characteristics.
   • Identify three actions you can take to make your existing floors less slippery.

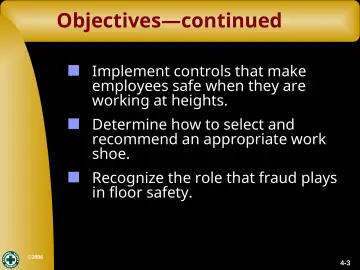

3. Slide 3

   Objectives—continued

   • Implement controls that make employees safe when they are working at heights.
   • Determine how to select and recommend an appropriate work shoe.
   • Recognize the role that fraud plays in floor safety.
4. Slide 4

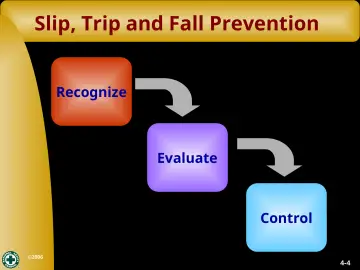

   Slip, Trip and Fall Prevention

   • Recognize
   • Evaluate
   • Control
5. Slide 5

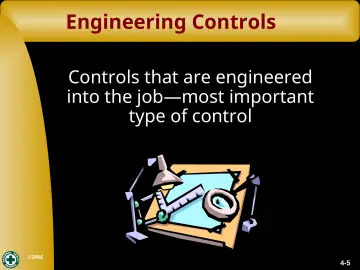

   Engineering Controls

   • Controls that are engineered into the job—most important type of control

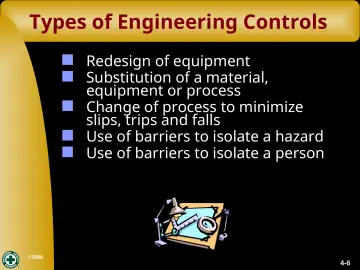

6. Slide 6

   Types of Engineering Controls

   • Redesign of equipment
   • Substitution of a material, equipment or process
   • Change of process to minimize slips, trips and falls
   • Use of barriers to isolate a hazard
   • Use of barriers to isolate a person

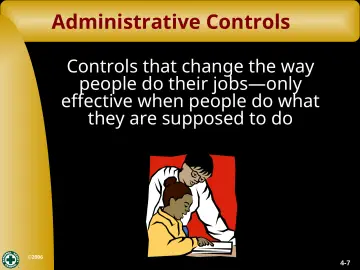

7. Slide 7

   Administrative Controls

   • Controls that change the way people do their jobs—only effective when people do what they are supposed to do

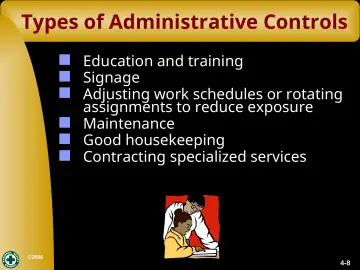

8. Slide 8

   Types of Administrative Controls

   • Education and training
   • Signage
   • Adjusting work schedules or rotating assignments to reduce exposure
   • Maintenance
   • Good housekeeping
   • Contracting specialized services

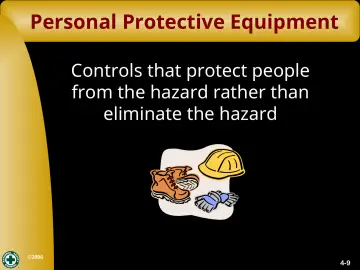

9. Slide 9

   Personal Protective Equipment

   • Controls that protect people from the hazard rather than eliminate the hazard
10. Slide 10

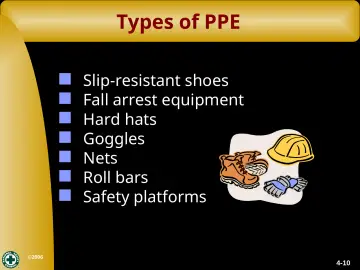

    Types of PPE

    • Slip-resistant shoes
    • Fall arrest equipment Hard hats
    • Goggles
    • Nets
    • Roll bars
    • Safety platforms
11. Slide 11

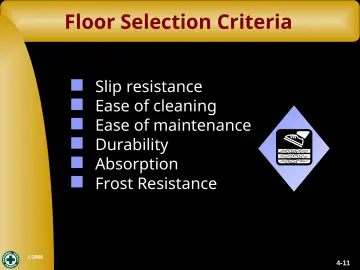

    Floor Selection Criteria

    • Slip resistance
    • Ease of cleaning
    • Ease of maintenance Durability
    • Absorption
    • Frost Resistance
12. Slide 12

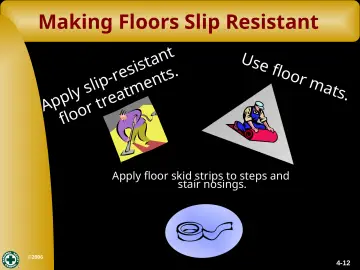

    • Making Floors Slip Resistant
    • o flo
    • Use
    • floo
    • m at
    • s.
    • Apply floor skid strips to steps and stair nosings.

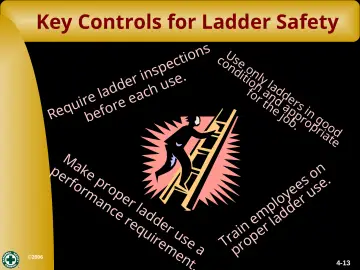

13. Slide 13

    Key Controls for Ladder Safety

    • o co se ti
    • nd on e
    • iti ly
    • on la e
    • d ach
    • fo an dd
    • he ap s i
    • Re
    • b o go
    • pe ake
    • rfo pr
    • rm op
    • an er
    • ce lad
    • ire se
    • en a
    • t.
    • pr od iat
    • s e.
    • e us
    • er
    • em lad
    • in er
    • Tr rop

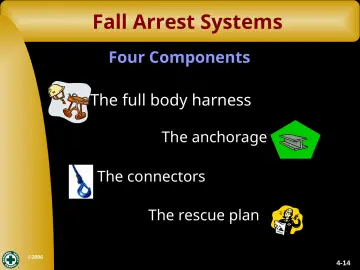

14. Slide 14

    Fall Arrest Systems

    • Four Components
    • The full body harness
    • The anchorage
    • The connectors
    • The rescue plan

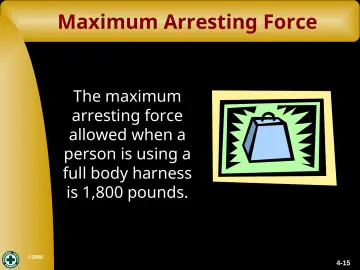

15. Slide 15

    Maximum Arresting Force

    • The maximum arresting force allowed when a person is using a full body harness is 1,800 pounds.

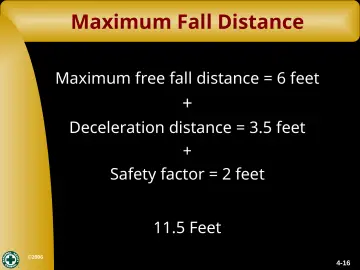

16. Slide 16

    Maximum Fall Distance

    • Maximum free fall distance = 6 feet
    • Deceleration distance = 3.5 feet
    • Safety factor = 2 feet
    • 11.5 Feet

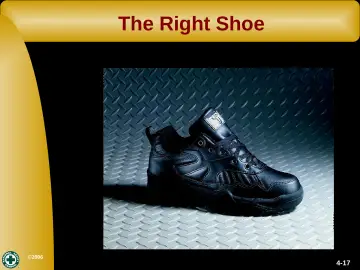

17. Slide 17

    The Right Shoe

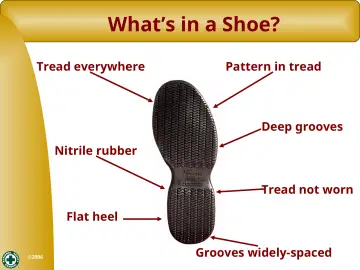

18. Slide 18

    What’s in a Shoe?

    • Tread everywhere
    • Pattern in tread
    • Deep grooves
    • Nitrile rubber
    • Tread not worn
    • Flat heel
    • Grooves widely-spaced

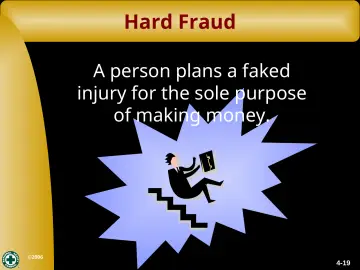

19. Slide 19

    Hard Fraud

    • A person plans a faked injury for the sole purpose of making money.

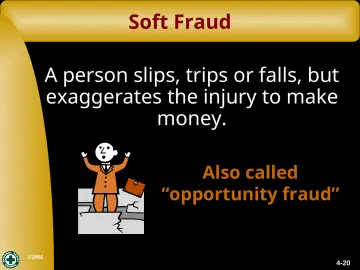

20. Slide 20

    Soft Fraud

    • A person slips, trips or falls, but exaggerates the injury to make money.
    • Also called
    • “opportunity fraud”

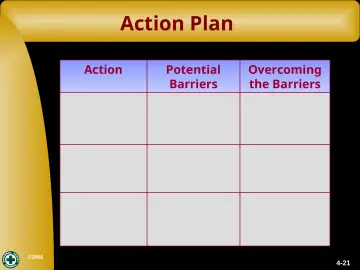

21. Slide 21

    Action Plan

    • Action
    • Potential Barriers
    • Overcoming the Barriers
