1. Slide 1

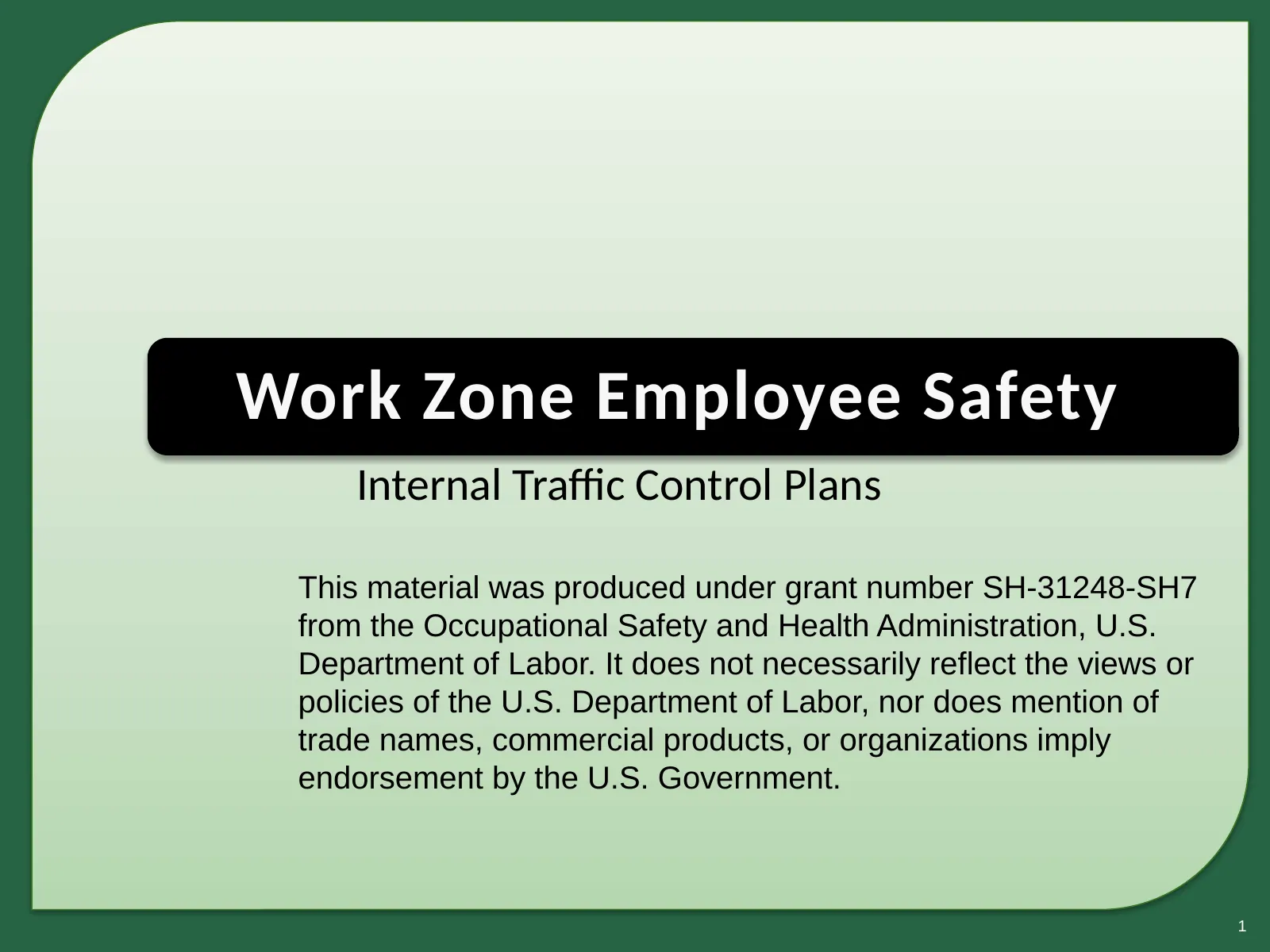

   Work Zone Employee Safety

   • Internal Traffic Control Plans
   • This material was produced under grant number SH-31248-SH7 from the Occupational Safety and Health Administration, U.S. Department of Labor. It does not necessarily reflect the views or policies of the U.S. Department of Labor, nor does mention of trade names, commercial products, or organizations imply endorsement by the U.S. Government.
2. Slide 2

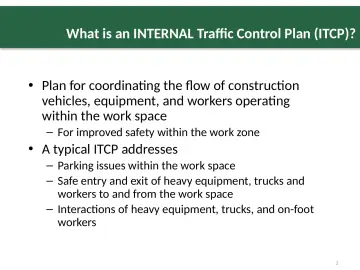

   What is an INTERNAL Traffic Control Plan (ITCP)?

   • Plan for coordinating the flow of construction vehicles, equipment, and workers operating within the work space
   • For improved safety within the work zone
   • A typical ITCP addresses
   • Parking issues within the work space
   • Safe entry and exit of heavy equipment, trucks and workers to and from the work space
   • Interactions of heavy equipment, trucks, and on-foot workers

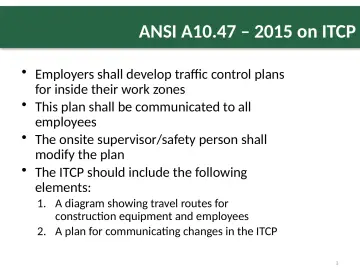

3. Slide 3

   ANSI A10.47 – 2015 on ITCP

   • Employers shall develop traffic control plans for inside their work zones
   • This plan shall be communicated to all employees
   • The onsite supervisor/safety person shall modify the plan
   • The ITCP should include the following elements:
   • 1. A diagram showing travel routes for construction equipment and employees
   • 2. A plan for communicating changes in the ITCP

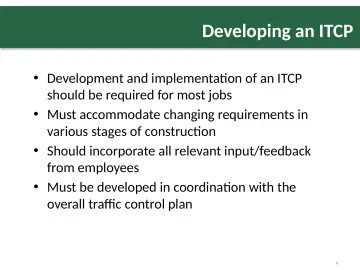

4. Slide 4

   Developing an ITCP

   • Development and implementation of an ITCP should be required for most jobs
   • Must accommodate changing requirements in various stages of construction
   • Should incorporate all relevant input/feedback from employees
   • Must be developed in coordination with the overall traffic control plan

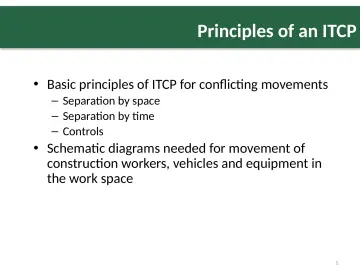

5. Slide 5

   Principles of an ITCP

   • Basic principles of ITCP for conflicting movements
   • Separation by space
   • Separation by time
   • Controls
   • Schematic diagrams needed for movement of construction workers, vehicles and equipment in the work space

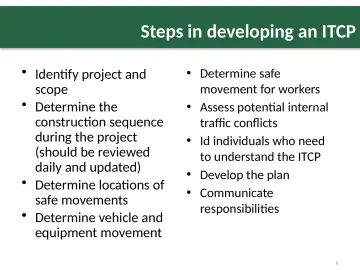

6. Slide 6

   Steps in developing an ITCP

   • Identify project and scope
   • Determine the construction sequence during the project (should be reviewed daily and updated)
   • Determine locations of safe movements
   • Determine vehicle and equipment movement
   • Determine safe movement for workers
   • Assess potential internal traffic conflicts
   • Id individuals who need to understand the ITCP
   • Develop the plan
   • Communicate responsibilities

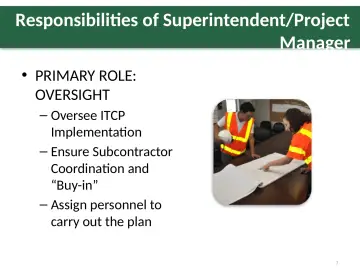

7. Slide 7

   Responsibilities of Superintendent/Project Manager

   • PRIMARY ROLE:
   • OVERSIGHT
   • Oversee ITCP
   • Implementation
   • Ensure Subcontractor
   • Coordination and “Buy-in”
   • Assign personnel to carry out the plan
8. Slide 8

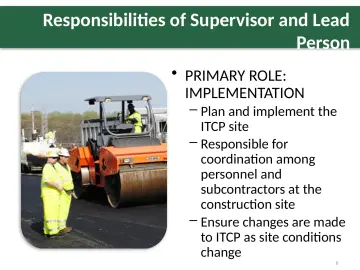

   Responsibilities of Supervisor and Lead Person

   • PRIMARY ROLE:
   • IMPLEMENTATION
   • Plan and implement the ITCP site
   • Responsible for coordination among personnel and subcontractors at the construction site
   • Ensure changes are made to ITCP as site conditions change

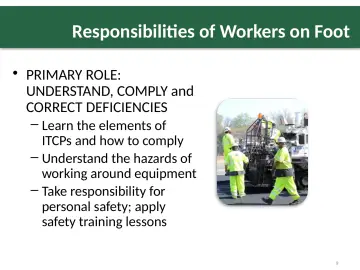

9. Slide 9

   Responsibilities of Workers on Foot

   • PRIMARY ROLE: UNDERSTAND, COMPLY and CORRECT DEFICIENCIES
   • Learn the elements of ITCPs and how to comply
   • Understand the hazards of working around equipment
   • Take responsibility for personal safety; apply safety training lessons

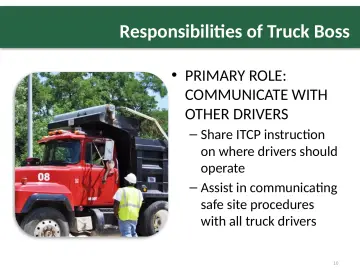

10. Slide 10

    Responsibilities of Truck Boss

    • PRIMARY ROLE:
    • COMMUNICATE WITH OTHER DRIVERS
    • Share ITCP instruction on where drivers should operate
    • Assist in communicating safe site procedures with all truck drivers
11. Slide 11

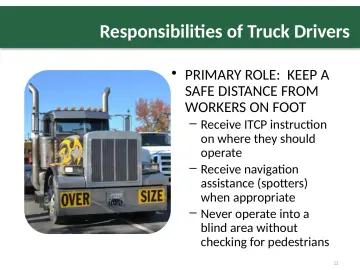

    Responsibilities of Truck Drivers

    • PRIMARY ROLE: KEEP A SAFE DISTANCE FROM WORKERS ON FOOT
    • Receive ITCP instruction on where they should operate
    • Receive navigation assistance (spotters) when appropriate
    • Never operate into a blind area without checking for pedestrians

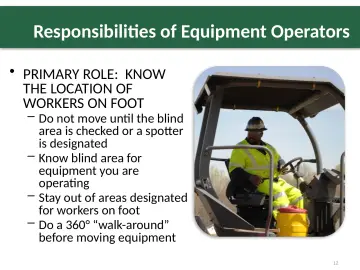

12. Slide 12

    Responsibilities of Equipment Operators

    • PRIMARY ROLE: KNOW
    • THE LOCATION OF WORKERS ON FOOT
    • Do not move until the blind area is checked or a spotter is designated
    • Know blind area for equipment you are operating
    • Stay out of areas designated for workers on foot
    • Do a 360° “walk-around” before moving equipment

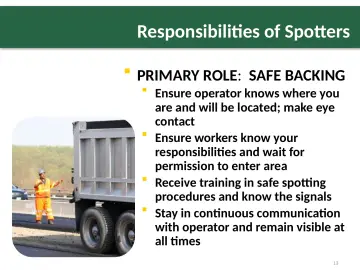

13. Slide 13

    Responsibilities of Spotters

    • PRIMARY ROLE: SAFE BACKING
    • Ensure operator knows where you are and will be located; make eye contact
    • Ensure workers know your responsibilities and wait for permission to enter area
    • Receive training in safe spotting procedures and know the signals
    • Stay in continuous communication with operator and remain visible at all times

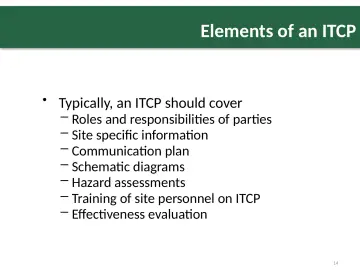

14. Slide 14

    Elements of an ITCP

    • Typically, an ITCP should cover
    • Roles and responsibilities of parties
    • Site specific information
    • Communication plan
    • Schematic diagrams
    • Hazard assessments
    • Training of site personnel on ITCP
    • Effectiveness evaluation

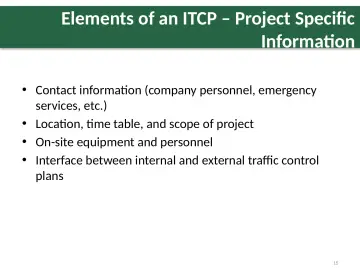

15. Slide 15

    Elements of an ITCP – Project Specific Information

    • Contact information (company personnel, emergency services, etc.)
    • Location, time table, and scope of project
    • On-site equipment and personnel
    • Interface between internal and external traffic control plans

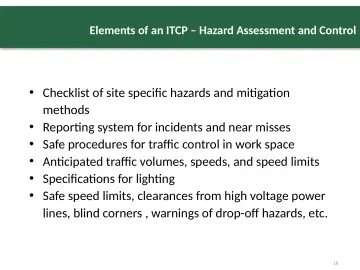

16. Slide 16

    Elements of an ITCP – Hazard Assessment and Control

    • Checklist of site specific hazards and mitigation methods
    • Reporting system for incidents and near misses
    • Safe procedures for traffic control in work space
    • Anticipated traffic volumes, speeds, and speed limits
    • Specifications for lighting
    • Safe speed limits, clearances from high voltage power lines, blind corners , warnings of drop-off hazards, etc.

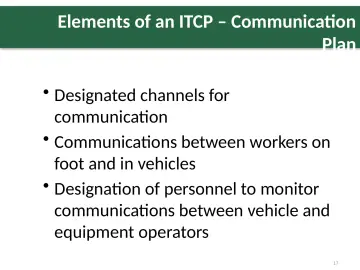

17. Slide 17

    Elements of an ITCP – Communication

    • Plan
    • Designated channels for communication
    • Communications between workers on foot and in vehicles
    • Designation of personnel to monitor communications between vehicle and equipment operators

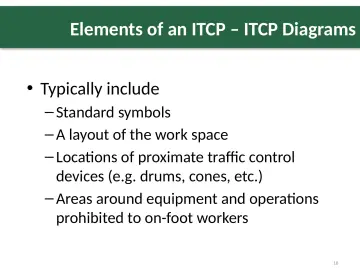

18. Slide 18

    Elements of an ITCP – ITCP Diagrams

    • Typically include
    • Standard symbols
    • A layout of the work space
    • Locations of proximate traffic control devices (e.g. drums, cones, etc.)
    • Areas around equipment and operations prohibited to on-foot workers

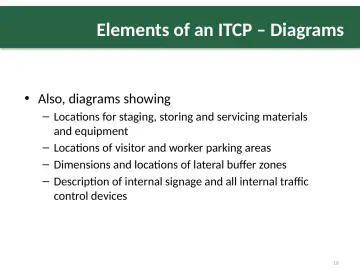

19. Slide 19

    Elements of an ITCP – Diagrams

    • Also, diagrams showing
    • Locations for staging, storing and servicing materials and equipment
    • Locations of visitor and worker parking areas
    • Dimensions and locations of lateral buffer zones
    • Description of internal signage and all internal traffic control devices

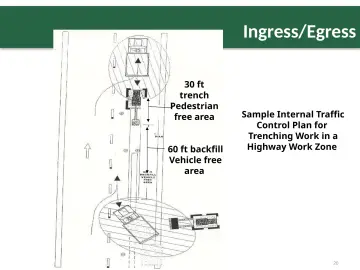

20. Slide 20

    Ingress/Egress

    • 30 ft trench
    • Pedestrian free area
    • 60 ft backfill Vehicle free area
    • Sample Internal Traffic Control Plan for Trenching Work in a Highway Work Zone

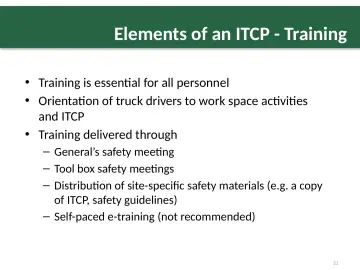

21. Slide 21

    Elements of an ITCP - Training

    • Training is essential for all personnel
    • Orientation of truck drivers to work space activities and ITCP
    • Training delivered through
    • General’s safety meeting
    • Tool box safety meetings
    • Distribution of site-specific safety materials (e.g. a copy of ITCP, safety guidelines)
    • Self-paced e-training (not recommended)
22. Slide 22

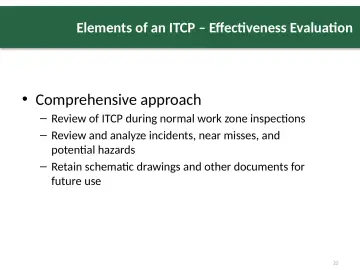

    Comprehensive approach

    • Elements of an ITCP – Effectiveness Evaluation
    • Review of ITCP during normal work zone inspections
    • Review and analyze incidents, near misses, and potential hazards
    • Retain schematic drawings and other documents for future use

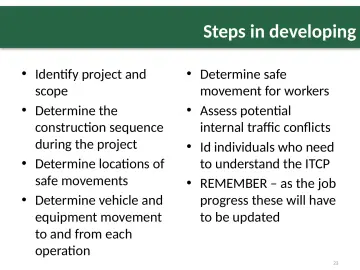

23. Slide 23

    Steps in developing

    • Identify project and scope
    • Determine the construction sequence during the project
    • Determine locations of safe movements
    • Determine vehicle and equipment movement to and from each operation
    • Determine safe movement for workers
    • Assess potential internal traffic conflicts
    • Id individuals who need to understand the ITCP
    • REMEMBER – as the job progress these will have to be updated
24. Slide 24

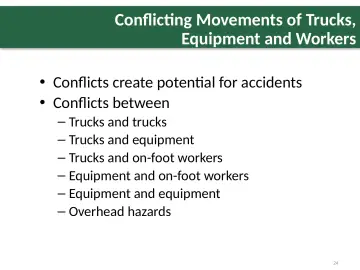

    Conflicting Movements of Trucks, Equipment and Workers

    • Conflicts create potential for accidents
    • Conflicts between
    • Trucks and trucks
    • Trucks and equipment
    • Trucks and on-foot workers
    • Equipment and on-foot workers
    • Equipment and equipment
    • Overhead hazards

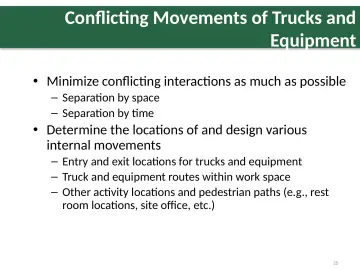

25. Slide 25

    Conflicting Movements of Trucks and Equipment

    • Minimize conflicting interactions as much as possible
    • Separation by space
    • Separation by time
    • Determine the locations of and design various internal movements
    • Entry and exit locations for trucks and equipment
    • Truck and equipment routes within work space
    • Other activity locations and pedestrian paths (e.g., rest room locations, site office, etc.)

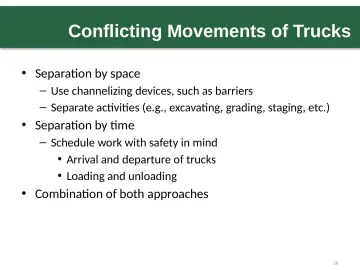

26. Slide 26

    Conflicting Movements of Trucks

    • Separation by space
    • Use channelizing devices, such as barriers
    • Separate activities (e.g., excavating, grading, staging, etc.)
    • Separation by time
    • Schedule work with safety in mind
    • Arrival and departure of trucks
    • Loading and unloading
    • Combination of both approaches

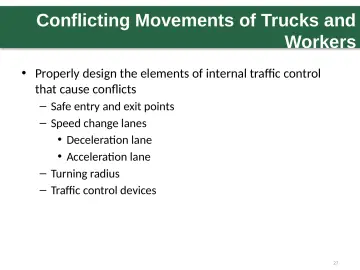

27. Slide 27

    Conflicting Movements of Trucks and Workers

    • Properly design the elements of internal traffic control that cause conflicts
    • Safe entry and exit points
    • Speed change lanes
    • Deceleration lane
    • Acceleration lane
    • Turning radius
    • Traffic control devices

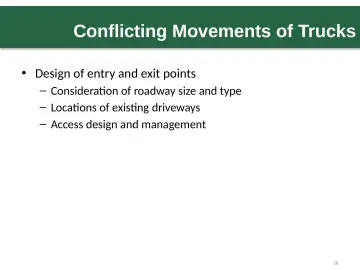

28. Slide 28

    Conflicting Movements of Trucks

    • Design of entry and exit points
    • Consideration of roadway size and type
    • Locations of existing driveways
    • Access design and management

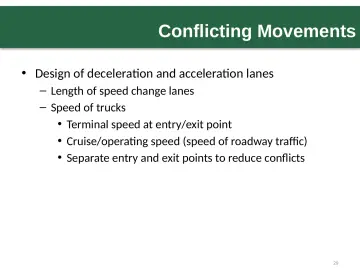

29. Slide 29

    Conflicting Movements

    • Design of deceleration and acceleration lanes
    • Length of speed change lanes
    • Speed of trucks
    • Terminal speed at entry/exit point
    • Cruise/operating speed (speed of roadway traffic)
    • Separate entry and exit points to reduce conflicts

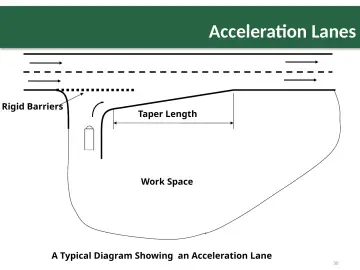

30. Slide 30

    Acceleration Lanes

    • Rigid Barriers
    • Taper Length
    • Work Space
    • A Typical Diagram Showing an Acceleration Lane

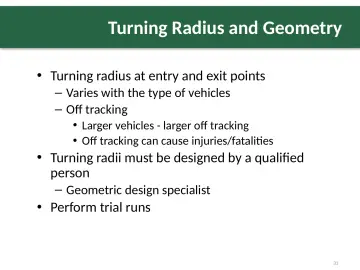

31. Slide 31

    Turning Radius and Geometry

    • Turning radius at entry and exit points
    • Varies with the type of vehicles
    • Off tracking
    • Larger vehicles - larger off tracking
    • Off tracking can cause injuries/fatalities
    • Turning radii must be designed by a qualified person
    • Geometric design specialist
    • Perform trial runs

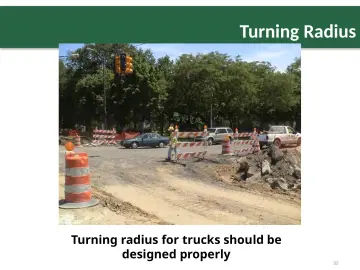

32. Slide 32

    Turning Radius

    • Turning radius for trucks should be designed properly

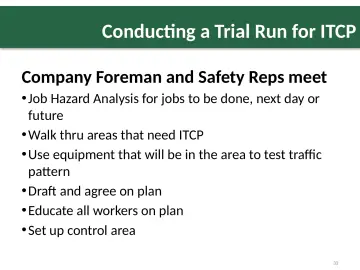

33. Slide 33

    Conducting a Trial Run for ITCP

    • Company Foreman and Safety Reps meet
    • Job Hazard Analysis for jobs to be done, next day or future
    • Walk thru areas that need ITCP
    • Use equipment that will be in the area to test traffic pattern
    • Draft and agree on plan
    • Educate all workers on plan
    • Set up control area

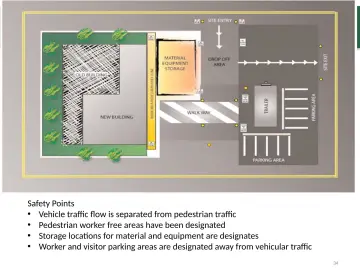

34. Slide 34

    Traffic Flow

    • Safety Points
    • Vehicle traffic flow is separated from pedestrian traffic
    • Pedestrian worker free areas have been designated
    • Storage locations for material and equipment are designates
    • Worker and visitor parking areas are designated away from vehicular traffic

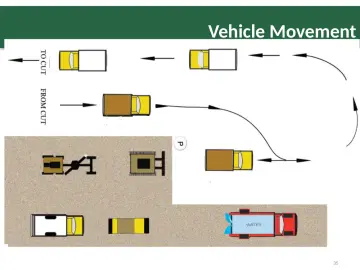

35. Slide 35

    Vehicle Movement

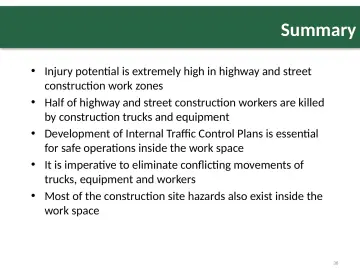

36. Slide 36

    Summary

    • Injury potential is extremely high in highway and street construction work zones
    • Half of highway and street construction workers are killed by construction trucks and equipment
    • Development of Internal Traffic Control Plans is essential for safe operations inside the work space
    • It is imperative to eliminate conflicting movements of trucks, equipment and workers
    • Most of the construction site hazards also exist inside the work space

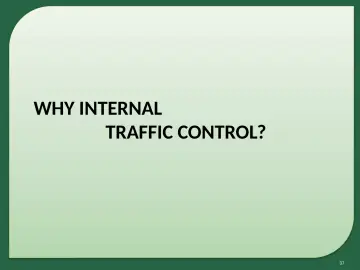

37. Slide 37

    WHY INTERNAL

    • TRAFFIC CONTROL?

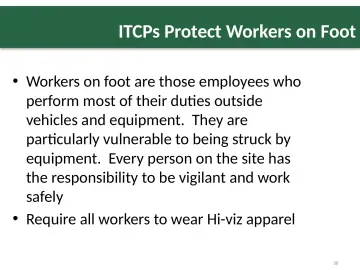

38. Slide 38

    ITCPs Protect Workers on Foot

    • Workers on foot are those employees who perform most of their duties outside vehicles and equipment. They are particularly vulnerable to being struck by equipment. Every person on the site has the responsibility to be vigilant and work safely
    • Require all workers to wear Hi-viz apparel

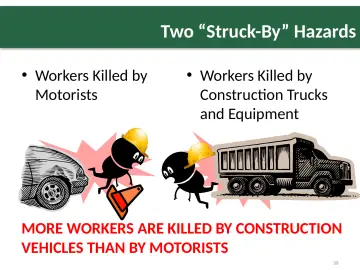

39. Slide 39

    Two “Struck-By” Hazards

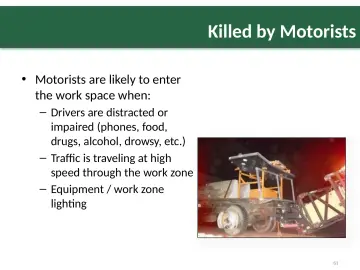

    • Workers Killed by Motorists
    • Workers Killed by Construction Trucks and Equipment
    • MORE WORKERS ARE KILLED BY CONSTRUCTION VEHICLES THAN BY MOTORISTS

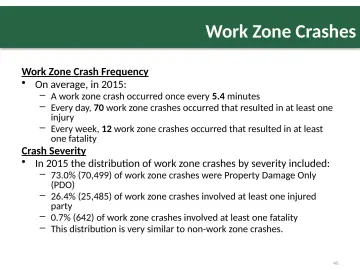

40. Slide 40

    Work Zone Crashes

    • Work Zone Crash Frequency
    • On average, in 2015:
    • A work zone crash occurred once every 5.4 minutes
    • Every day, 70 work zone crashes occurred that resulted in at least one injury
    • Every week, 12 work zone crashes occurred that resulted in at least one fatality
    • Crash Severity
    • In 2015 the distribution of work zone crashes by severity included:
    • 73.0% (70,499) of work zone crashes were Property Damage Only (PDO)
    • 26.4% (25,485) of work zone crashes involved at least one injured party
    • 0.7% (642) of work zone crashes involved at least one fatality
    • This distribution is very similar to non-work zone crashes.

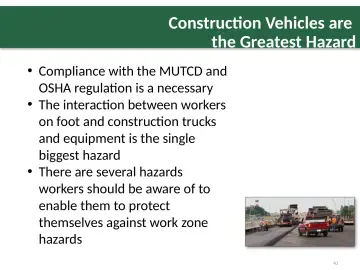

41. Slide 41

    Construction Vehicles are the Greatest Hazard

    • Compliance with the MUTCD and OSHA regulation is a necessary
    • The interaction between workers on foot and construction trucks and equipment is the single biggest hazard
    • There are several hazards workers should be aware of to enable them to protect themselves against work zone hazards
42. Slide 42

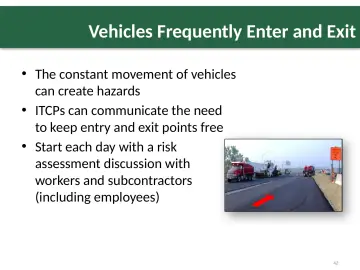

    Vehicles Frequently Enter and Exit

    • The constant movement of vehicles can create hazards
    • ITCPs can communicate the need to keep entry and exit points free
    • Start each day with a risk assessment discussion with workers and subcontractors (including employees)
43. Slide 43

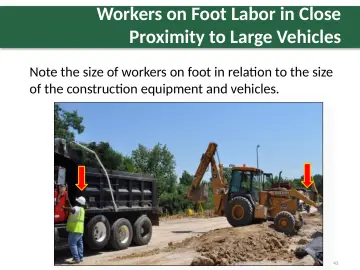

    Workers on Foot Labor in Close

    • Proximity to Large Vehicles
    • Note the size of workers on foot in relation to the size of the construction equipment and vehicles.

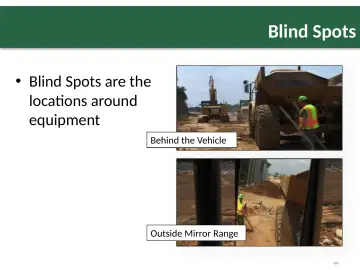

44. Slide 44

    Blind Spots

    • Blind Spots are the locations around equipment
    • Behind the Vehicle
    • Outside Mirror Range
45. Slide 45

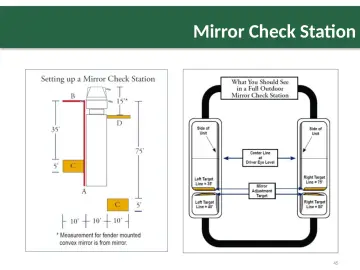

    Mirror Check Station

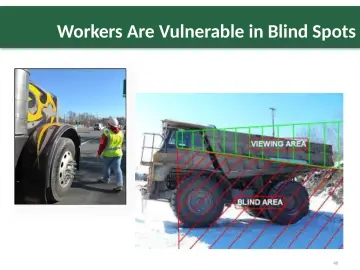

46. Slide 46

    Workers Are Vulnerable in Blind Spots

47. Slide 47

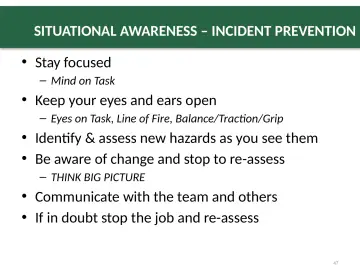

    SITUATIONAL AWARENESS – INCIDENT PREVENTION

    • Stay focused
    • Mind on Task
    • Keep your eyes and ears open
    • Eyes on Task, Line of Fire, Balance/Traction/Grip
    • Identify & assess new hazards as you see them
    • Be aware of change and stop to re-assess
    • THINK BIG PICTURE
    • Communicate with the team and others
    • If in doubt stop the job and re-assess

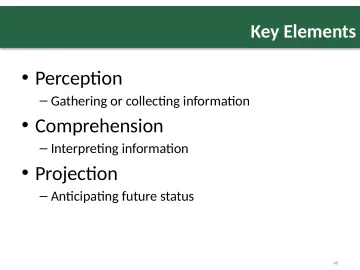

48. Slide 48

    Key Elements

    • Perception
    • Gathering or collecting information
    • Comprehension
    • Interpreting information
    • Projection
    • Anticipating future status

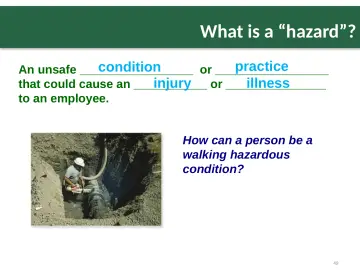

49. Slide 49

    What is a “hazard”?

    • practice
    • condition
    • An unsafe ___
    • or ___
    • injury or ___
    • illness
    • that could cause an ___
    • to an employee.
    • How can a person be a walking hazardous condition?
50. Slide 50

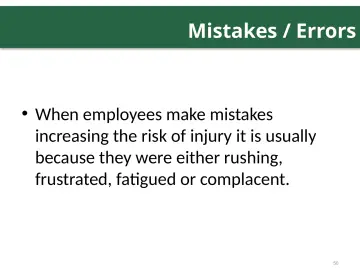

    Mistakes / Errors

    • When employees make mistakes increasing the risk of injury it is usually because they were either rushing, frustrated, fatigued or complacent.

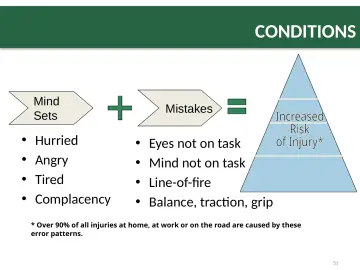

51. Slide 51

    CONDITIONS

    • Mind Sets
    • Hurried
    • Angry
    • Tired
    • Complacency
    • Mistakes
    • Eyes not on task
    • Mind not on task
    • Line-of-fire
    • Balance, traction, grip
    • Over 90% of all injuries at home, at work or on the road are caused by these error patterns.
52. Slide 52

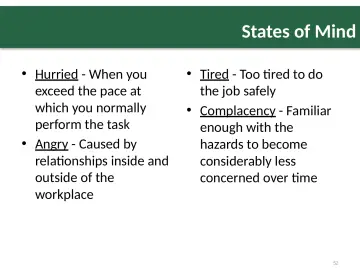

    States of Mind

    • Hurried - When you exceed the pace at which you normally perform the task
    • Angry - Caused by relationships inside and outside of the workplace
    • Tired - Too tired to do the job safely
    • Complacency - Familiar enough with the hazards to become considerably less concerned over time
53. Slide 53

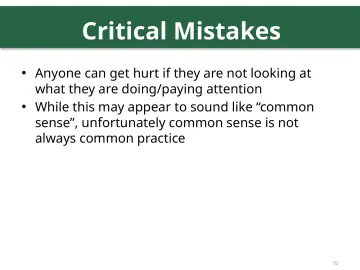

    Critical Mistakes

    • Anyone can get hurt if they are not looking at what they are doing/paying attention
    • While this may appear to sound like “common sense”, unfortunately common sense is not always common practice

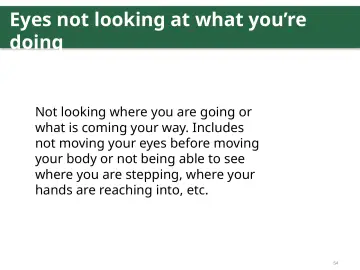

54. Slide 54

    Eyes not looking at what you’re doing

    • Not looking where you are going or what is coming your way. Includes not moving your eyes before moving your body or not being able to see where you are stepping, where your hands are reaching into, etc.

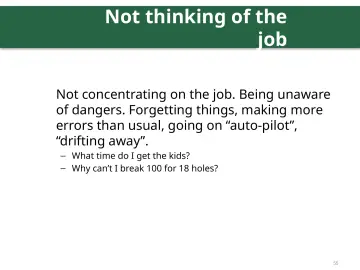

55. Slide 55

    Not thinking of the job

    • Not concentrating on the job. Being unaware of dangers. Forgetting things, making more errors than usual, going on “auto-pilot”, “drifting away”.
    • What time do I get the kids?
    • Why can’t I break 100 for 18 holes?

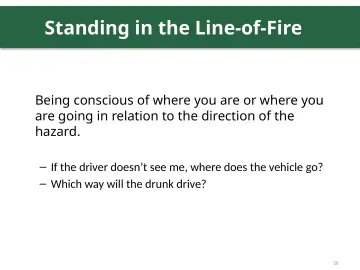

56. Slide 56

    Standing in the Line-of-Fire

    • Being conscious of where you are or where you are going in relation to the direction of the hazard.
    • If the driver doesn’t see me, where does the vehicle go?
    • Which way will the drunk drive?

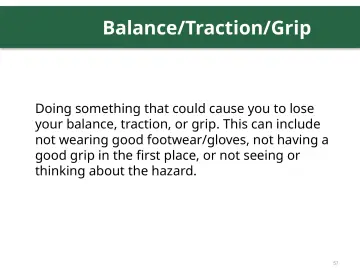

57. Slide 57

    Balance/Traction/Grip

    • Doing something that could cause you to lose your balance, traction, or grip. This can include not wearing good footwear/gloves, not having a good grip in the first place, or not seeing or thinking about the hazard.
58. Slide 58

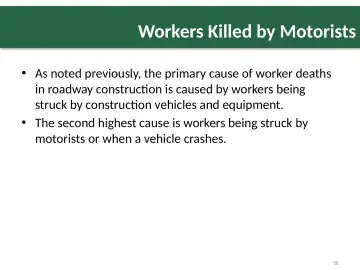

    Workers Killed by Motorists

    • As noted previously, the primary cause of worker deaths in roadway construction is caused by workers being struck by construction vehicles and equipment.
    • The second highest cause is workers being struck by motorists or when a vehicle crashes.

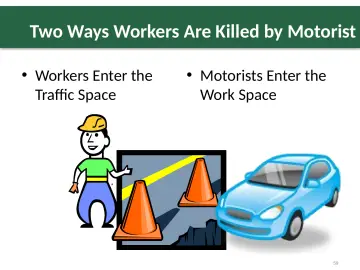

59. Slide 59

    Two Ways Workers Are Killed by Motorist

    • Workers Enter the Traffic Space
    • Motorists Enter the Work Space
60. Slide 60

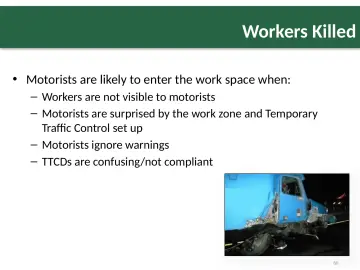

    Workers Killed

    • Motorists are likely to enter the work space when:
    • Workers are not visible to motorists
    • Motorists are surprised by the work zone and Temporary Traffic Control set up
    • Motorists ignore warnings
    • TTCDs are confusing/not compliant
61. Slide 61

    Killed by Motorists

    • Motorists are likely to enter the work space when:
    • Drivers are distracted or impaired (phones, food, drugs, alcohol, drowsy, etc.)
    • Traffic is traveling at high speed through the work zone
    • Equipment / work zone lighting

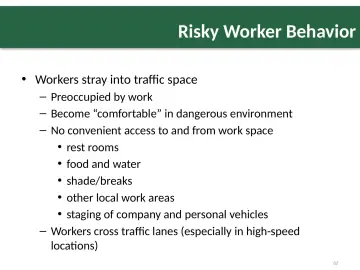

62. Slide 62

    Risky Worker Behavior

    • Workers stray into traffic space
    • Preoccupied by work
    • Become “comfortable” in dangerous environment
    • No convenient access to and from work space
    • rest rooms
    • food and water
    • shade/breaks
    • other local work areas
    • staging of company and personal vehicles
    • Workers cross traffic lanes (especially in high-speed locations)

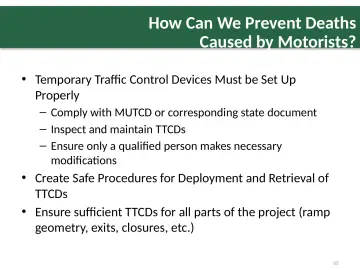

63. Slide 63

    How Can We Prevent Deaths Caused by Motorists?

    • Temporary Traffic Control Devices Must be Set Up Properly
    • Comply with MUTCD or corresponding state document
    • Inspect and maintain TTCDs
    • Ensure only a qualified person makes necessary modifications
    • Create Safe Procedures for Deployment and Retrieval of TTCDs
    • Ensure sufficient TTCDs for all parts of the project (ramp geometry, exits, closures, etc.)

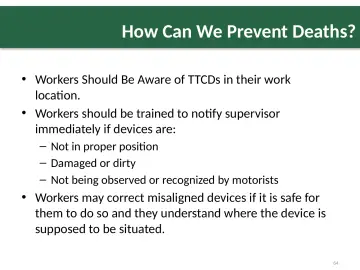

64. Slide 64

    How Can We Prevent Deaths?

    • Workers Should Be Aware of TTCDs in their work location.
    • Workers should be trained to notify supervisor immediately if devices are:
    • Not in proper position
    • Damaged or dirty
    • Not being observed or recognized by motorists
    • Workers may correct misaligned devices if it is safe for them to do so and they understand where the device is supposed to be situated.
65. Slide 65

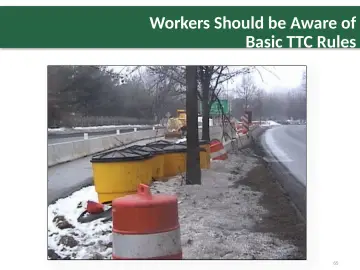

    Workers Should be Aware of Basic TTC Rules

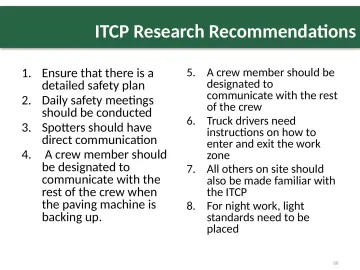

66. Slide 66

    ITCP Research Recommendations

    • 1. Ensure that there is a detailed safety plan
    • 2. Daily safety meetings should be conducted
    • 3. Spotters should have direct communication
    • 4. A crew member should be designated to communicate with the rest of the crew when the paving machine is backing up.
    • 5. A crew member should be designated to communicate with the rest of the crew
    • 6. Truck drivers need instructions on how to enter and exit the work zone
    • 7. All others on site should also be made familiar with the ITCP
    • 8. For night work, light standards need to be placed

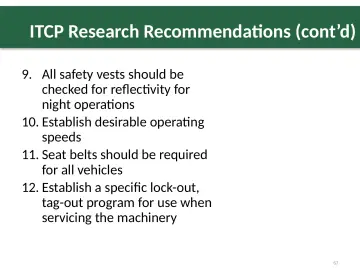

67. Slide 67

    ITCP Research Recommendations (cont’d)

    • 9. All safety vests should be checked for reflectivity for night operations
    • 10. Establish desirable operating speeds
    • 11. Seat belts should be required for all vehicles
    • 12. Establish a specific lock-out, tag-out program for use when servicing the machinery
68. Slide 68

    Thank You

    • Questions????
