Introduction to Industrial Hygiene

The words on each slide as the author wrote them, read from the file by software so they can be searched. Layout, pictures and tables are not shown here: the slides above and the download are the original.

1. Slide 1

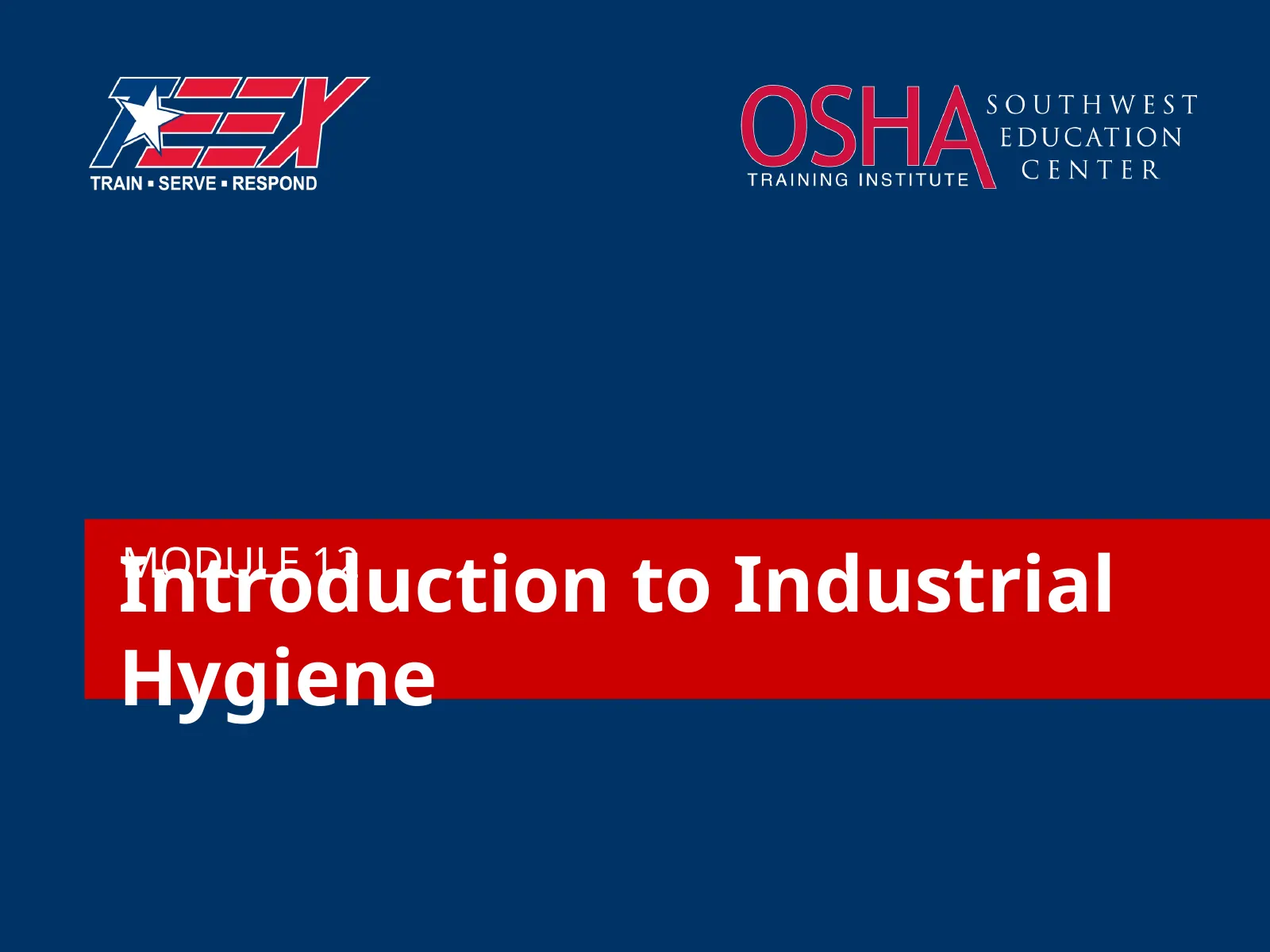

   Introduction to Industrial Hygiene

   • MODULE 12
2. Slide 2

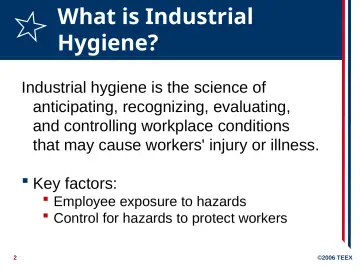

   What is Industrial Hygiene?

   • Industrial hygiene is the science of anticipating, recognizing, evaluating, and controlling workplace conditions that may cause workers' injury or illness.
   • Key factors:
   • Employee exposure to hazards
   • Control for hazards to protect workers
3. Slide 3

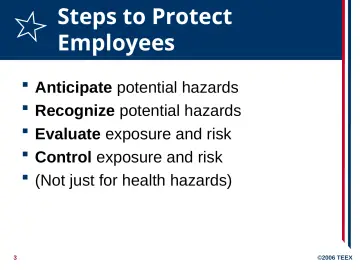

   Steps to Protect Employees

   • Anticipate potential hazards
   • Recognize potential hazards
   • Evaluate exposure and risk
   • Control exposure and risk
   • (Not just for health hazards)
4. Slide 4

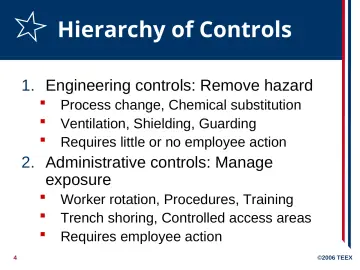

   Hierarchy of Controls

   • 1. Engineering controls: Remove hazard
   • Process change, Chemical substitution Ventilation, Shielding, Guarding Requires little or no employee action
   • 2. Administrative controls: Manage exposure
   • Worker rotation, Procedures, Training Trench shoring, Controlled access areas Requires employee action
5. Slide 5

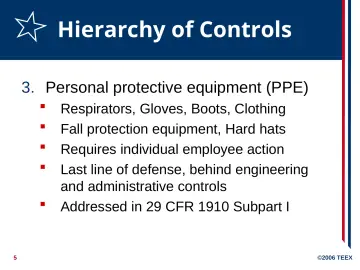

   Hierarchy of Controls

   • 3. Personal protective equipment (PPE)
   • Respirators, Gloves, Boots, Clothing Fall protection equipment, Hard hats Requires individual employee action Last line of defense, behind engineering and administrative controls
   • Addressed in 29 CFR 1910 Subpart I
6. Slide 6

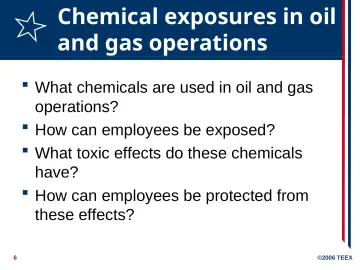

   Chemical exposures in oil and gas operations

   • What chemicals are used in oil and gas operations?
   • How can employees be exposed?
   • What toxic effects do these chemicals have?
   • How can employees be protected from these effects?
7. Slide 7

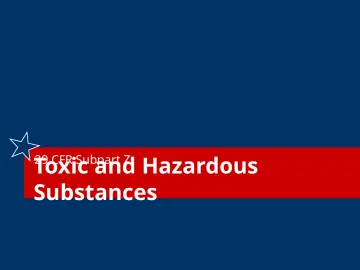

   Toxic and Hazardous Substances

   • 29 CFR Subpart Z
8. Slide 8

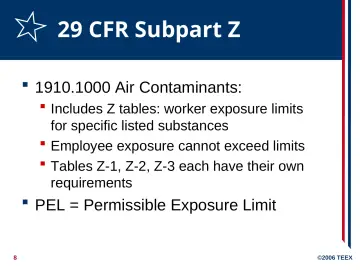

   29 CFR Subpart Z

   • 1910.1000 Air Contaminants:
   • Includes Z tables: worker exposure limits for specific listed substances
   • Employee exposure cannot exceed limits
   • Tables Z-1, Z-2, Z-3 each have their own requirements
   • PEL = Permissible Exposure Limit
9. Slide 9

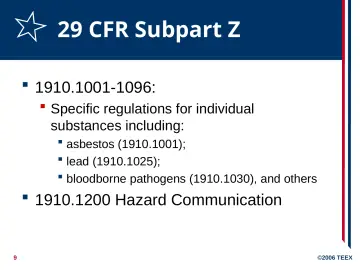

   29 CFR Subpart Z

   • 1910.1001-1096:
   • Specific regulations for individual substances including:
   • asbestos (1910.1001);
   • lead (1910.1025);
   • bloodborne pathogens (1910.1030), and others
   • 1910.1200 Hazard Communication
10. Slide 10

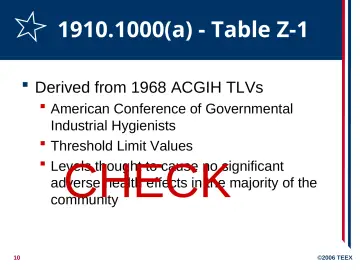

    1910.1000(a) - Table Z-1

    • Derived from 1968 ACGIH TLVs
    • American Conference of Governmental Industrial Hygienists
    • Threshold Limit Values
    • Levels thought to cause no significant adverse health effects in the majority of the community
    • CHECK
11. Slide 11

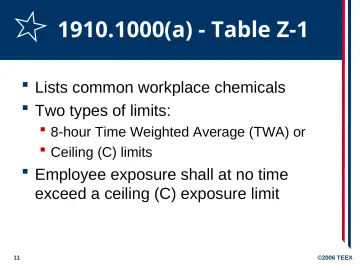

    1910.1000(a) - Table Z-1

    • Lists common workplace chemicals
    • Two types of limits:
    • 8-hour Time Weighted Average (TWA) or
    • Ceiling (C) limits
    • Employee exposure shall at no time exceed a ceiling (C) exposure limit
12. Slide 12

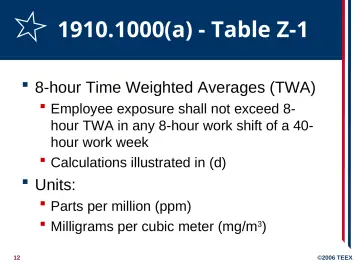

    1910.1000(a) - Table Z-1

    • 8-hour Time Weighted Averages (TWA)
    • Employee exposure shall not exceed 8-hour TWA in any 8-hour work shift of a 40-hour work week
    • Calculations illustrated in (d)
    • Units:
    • Parts per million (ppm)
    • Milligrams per cubic meter (mg/m 3 )
13. Slide 13

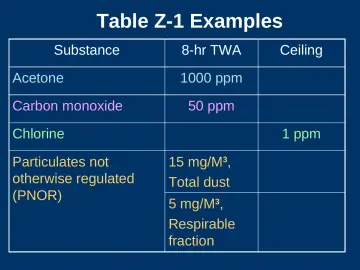

    Table Z-1 Examples

    • Substance
    • 8-hr TWA
    • Acetone
    • 1000 ppm
    • Carbon monoxide
    • 50 ppm
    • Chlorine
    • FOR EXAMPLE…
    • Particulates
    • not
    • otherwise regulated
    • (PNOR)
    • Ceiling
    • 1 ppm
    • 15 mg/M 3 , Total dust
    • Subtitles & Transitions
    • 5 mg/M 3 , Respirable fraction
14. Slide 14

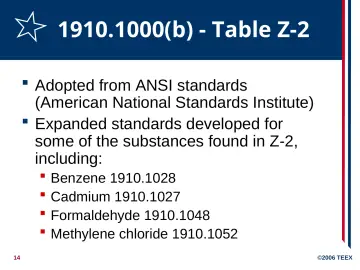

    1910.1000(b) - Table Z-2

    • Adopted from ANSI standards (American National Standards Institute)
    • Expanded standards developed for some of the substances found in Z-2, including:
    • Benzene 1910.1028
    • Cadmium 1910.1027
    • Formaldehyde 1910.1048
    • Methylene chloride 1910.1052
15. Slide 15

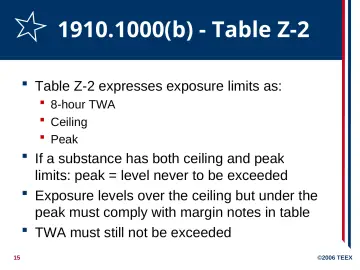

    1910.1000(b) - Table Z-2

    • Table Z-2 expresses exposure limits as:
    • 8-hour TWA
    • Ceiling
    • Peak
    • If a substance has both ceiling and peak limits: peak = level never to be exceeded
    • Exposure levels over the ceiling but under the peak must comply with margin notes in table
    • TWA must still not be exceeded
16. Slide 16

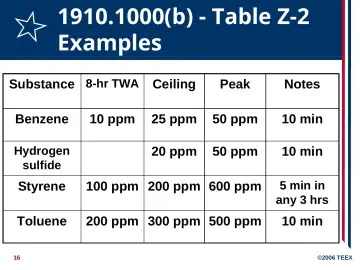

    1910.1000(b) - Table Z-2 Examples

    • Substance 8-hr TWA
    • Ceiling
    • Peak
    • Notes
    • Benzene
    • 25 ppm
    • 50 ppm
    • 10 min
    • Hydrogen sulfide
    • 20 ppm
    • 50 ppm
    • 10 min
    • Styrene
    • 100 ppm 200 ppm 600 ppm
    • 5 min in any 3 hrs
    • Toluene
    • 200 ppm 300 ppm 500 ppm
    • 10 min
    • 10 ppm
17. Slide 17

    1910.1000(c) - Table Z-3

    • 8-hour TWA limits for forms of silica
    • Adopted from ACGIH TLVs
    • SiO 2 : basic component of sand, granite
    • Quartz: 2 nd most common mineral
    • Quartz sand (crystalline silica) used to fracture rock formations in wells
    • Silica in barite, lignite, and bentonite mud additives

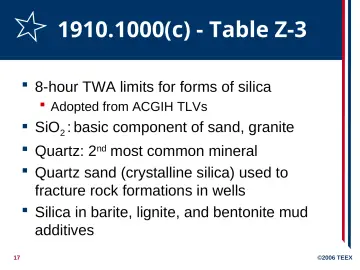

18. Slide 18

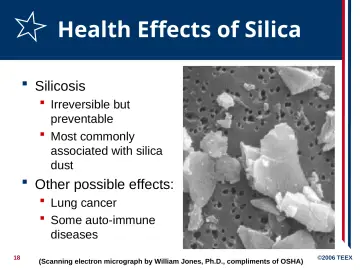

    Health Effects of Silica

    • Silicosis
    • Irreversible but preventable
    • Most commonly associated with silica dust
    • Other possible effects:
    • Lung cancer
    • Some auto-immune diseases
    • (Scanning electron micrograph by William Jones, Ph.D., compliments of OSHA)
19. Slide 19

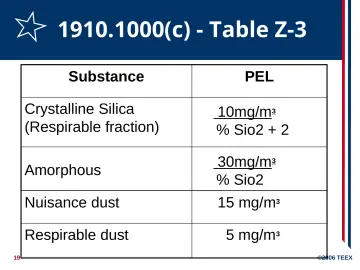

    1910.1000(c) - Table Z-3

    • Substance
    • PEL
    • Crystalline Silica
    • (Respirable fraction)
    • 10mg/m 3
    • % Sio2 + 2
    • Amorphous
    • 30mg/m 3
    • % Sio2
    • Nuisance dust
    • 15 mg/m 3
    • Respirable dust
    • 5 mg/m 3
20. Slide 20

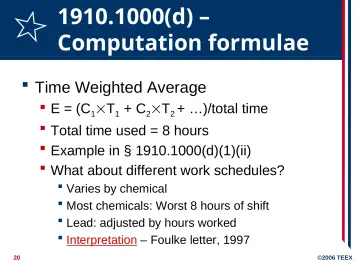

    1910.1000(d) – Computation formulae

    • Time Weighted Average
    • E = (C 1 ×T 1 + C 2 ×T 2 + …)/total time
    • Total time used = 8 hours
    • Example in § 1910.1000(d)(1)(ii)
    • What about different work schedules?
    • Varies by chemical
    • Most chemicals: Worst 8 hours of shift
    • Lead: adjusted by hours worked
    • Interpretation – Foulke letter, 1997
21. Slide 21

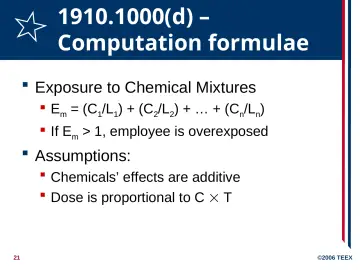

    1910.1000(d) – Computation formulae

    • Exposure to Chemical Mixtures
    • E m = (C 1 /L 1 ) + (C 2 /L 2 ) + … + (C n /L n )
    • If E m > 1, employee is overexposed
    • Assumptions:
    • Chemicals’ effects are additive
    • Dose is proportional to C × T
22. Slide 22

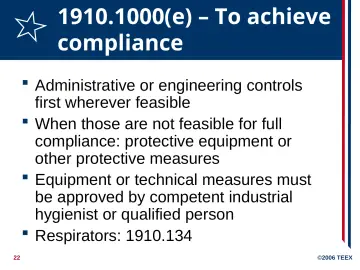

    1910.1000(e) – To achieve compliance

    • Administrative or engineering controls first wherever feasible
    • When those are not feasible for full compliance: protective equipment or other protective measures
    • Equipment or technical measures must be approved by competent industrial hygienist or qualified person
    • Respirators: 1910.134
23. Slide 23

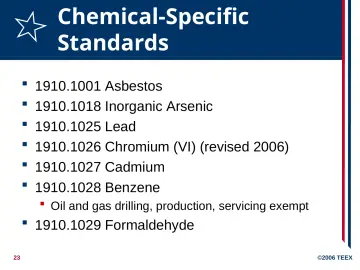

    Chemical-Specific Standards

    • 1910.1001 Asbestos
    • 1910.1018 Inorganic Arsenic
    • 1910.1025 Lead
    • 1910.1026 Chromium (VI) (revised 2006)
    • 1910.1027 Cadmium
    • 1910.1028 Benzene
    • Oil and gas drilling, production, servicing exempt
    • 1910.1029 Formaldehyde
24. Slide 24

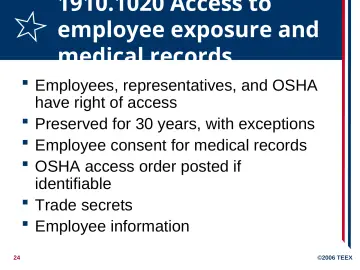

    1910.1020 Access to employee exposure and medical records

    • Employees, representatives, and OSHA have right of access
    • Preserved for 30 years, with exceptions
    • Employee consent for medical records
    • OSHA access order posted if identifiable
    • Trade secrets
    • Employee information
25. Slide 25

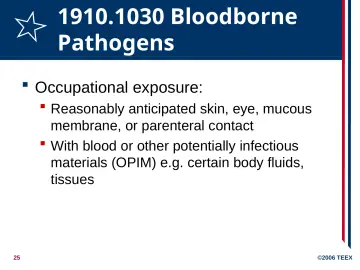

    1910.1030 Bloodborne Pathogens

    • Occupational exposure:
    • Reasonably anticipated skin, eye, mucous membrane, or parenteral contact
    • With blood or other potentially infectious materials (OPIM) e.g. certain body fluids, tissues
26. Slide 26

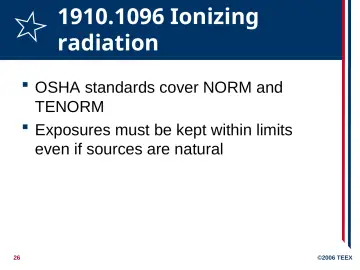

    1910.1096 Ionizing radiation

    • OSHA standards cover NORM and TENORM
    • Exposures must be kept within limits even if sources are natural
27. Slide 27

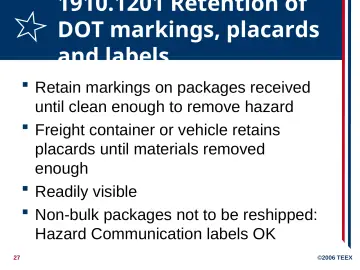

    1910.1201 Retention of DOT markings, placards and labels

    • Retain markings on packages received until clean enough to remove hazard
    • Freight container or vehicle retains placards until materials removed enough
    • Readily visible
    • Non-bulk packages not to be reshipped: Hazard Communication labels OK
28. Slide 28

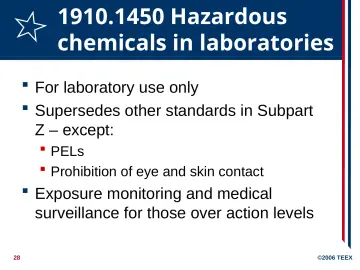

    1910.1450 Hazardous chemicals in laboratories

    • For laboratory use only
    • Supersedes other standards in Subpart Z – except:
    • PELs
    • Prohibition of eye and skin contact
    • Exposure monitoring and medical surveillance for those over action levels
29. Slide 29

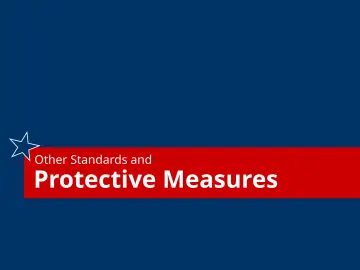

    Other Standards and

    • Protective Measures
30. Slide 30

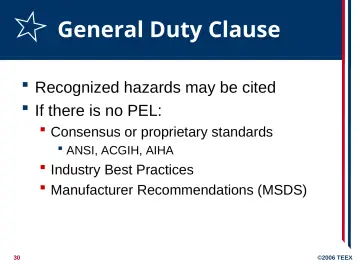

    General Duty Clause

    • Recognized hazards may be cited
    • If there is no PEL:
    • Consensus or proprietary standards
    • ANSI, ACGIH, AIHA
    • Industry Best Practices
    • Manufacturer Recommendations (MSDS)
31. Slide 31

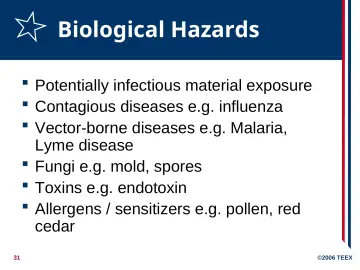

    Biological Hazards

    • Potentially infectious material exposure
    • Contagious diseases e.g. influenza
    • Vector-borne diseases e.g. Malaria, Lyme disease
    • Fungi e.g. mold, spores
    • Toxins e.g. endotoxin
    • Allergens / sensitizers e.g. pollen, red cedar
32. Slide 32

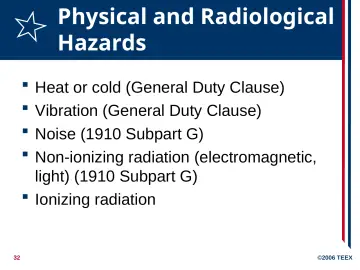

    Physical and Radiological Hazards

    • Heat or cold (General Duty Clause)
    • Vibration (General Duty Clause)
    • Noise (1910 Subpart G)
    • Non-ionizing radiation (electromagnetic, light) (1910 Subpart G)
    • Ionizing radiation
33. Slide 33

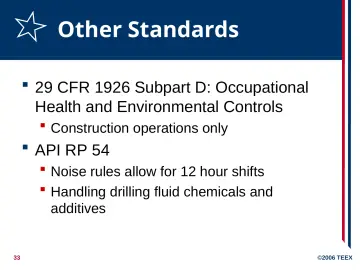

    Other Standards

    • 29 CFR 1926 Subpart D: Occupational Health and Environmental Controls
    • Construction operations only
    • API RP 54
    • Noise rules allow for 12 hour shifts
    • Handling drilling fluid chemicals and additives

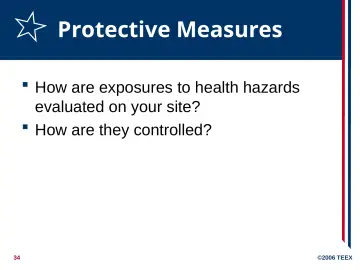

34. Slide 34

    Protective Measures

    • How are exposures to health hazards evaluated on your site?
    • How are they controlled?
