1. Slide 1

   29CFR1910.1200

   • HAZARD
   • COMMUNICATION: INCLUDING GHS
2. Slide 2

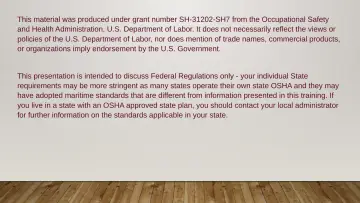

   • This material was produced under grant number SH-31202-SH7 from the Occupational Safety and Health Administration, U.S. Department of Labor. It does not necessarily reflect the views or policies of the U.S. Department of Labor, nor does mention of trade names, commercial products, or organizations imply endorsement by the U.S. Government.
   • This presentation is intended to discuss Federal Regulations only - your individual State requirements may be more stringent as many states operate their own state OSHA and they may have adopted maritime standards that are different from information presented in this training. If you live in a state with an OSHA approved state plan, you should contact your local administrator for further information on the standards applicable in your state.
3. Slide 3

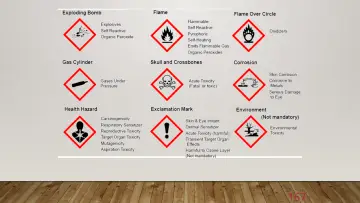

   Hazard Communications / GHS

4. Slide 4

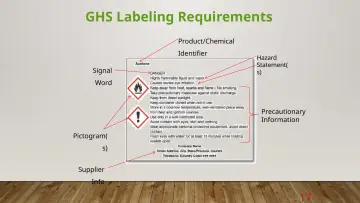

   GHS Labeling Requirements

   • Product/Chemical
   • Identifier
   • Signal
   • Hazard
   • Statement( s)
   • Word
   • Precautionary Information
   • Pictogram(
   • s)
   • Supplier
   • Info
5. Slide 6

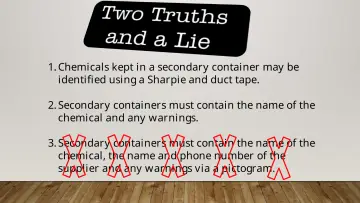

   • 1. Chemicals kept in a secondary container may be identified using a Sharpie and duct tape.
   • 2. Secondary containers must contain the name of the chemical and any warnings.
   • 3. Secondary containers must contain the name of the chemical, the name and phone number of the supplier and any warnings via a pictogram.
6. Slide 7

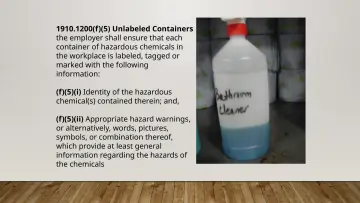

   • 1910.1200(f)(5) Unlabeled Containers the employer shall ensure that each container of hazardous chemicals in the workplace is labeled, tagged or marked with the following information:
   • (f)(5)(i) Identity of the hazardous chemical(s) contained therein; and,
   • (f)(5)(ii) Appropriate hazard warnings, or alternatively, words, pictures, symbols, or combination thereof, which provide at least general information regarding the hazards of the chemicals
7. Slide 8

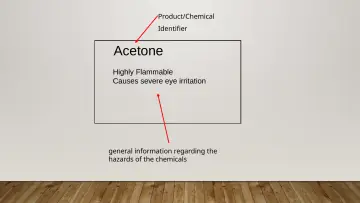

   Acetone

   • Product/Chemical
   • Identifier
   • Highly Flammable
   • Causes severe eye irritation
   • general information regarding the hazards of the chemicals

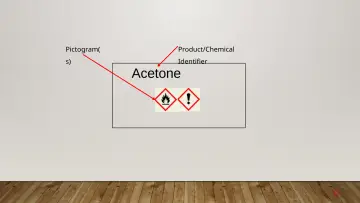

8. Slide 9

   Acetone

   • Pictogram(
   • Product/Chemical
   • s)
   • Identifier
9. Slide 10

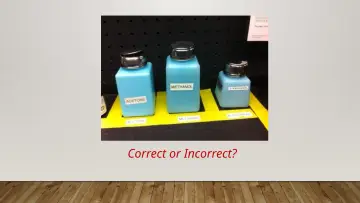

   • Correct or Incorrect?

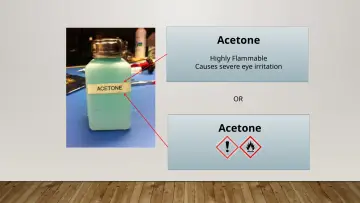

10. Slide 11

    Acetone

    • Highly Flammable
    • Causes severe eye irritation
    • OR
    • Acetone

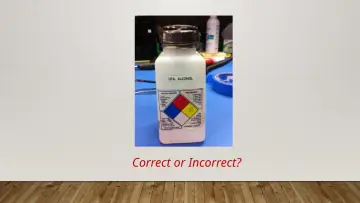

11. Slide 12
    • Correct or Incorrect?
12. Slide 13

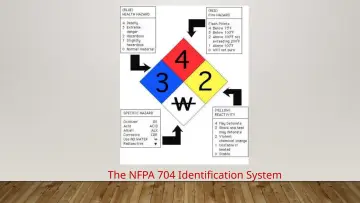

    • The NFPA 704 Identification System

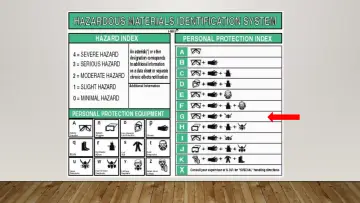

13. Slide 14

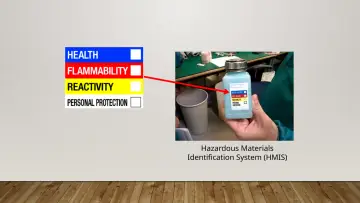

    Hazardous Materials

    • Identification System (HMIS)
14. Slide 17

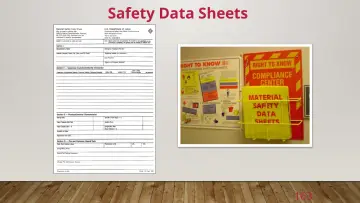

    Safety Data Sheets

15. Slide 19

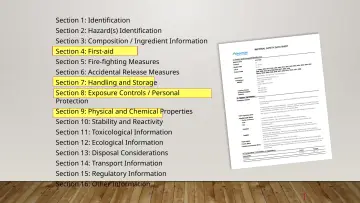

    Section 1: Identification

    • Section 2: Hazard(s) Identification
    • Section 3: Composition / Ingredient Information
    • Section 4: First-aid
    • Section 5: Fire-fighting Measures
    • Section 6: Accidental Release Measures
    • Section 7: Handling and Storage
    • Section 8: Exposure Controls / Personal
    • Protection
    • Section 9: Physical and Chemical Properties
    • Section 10: Stability and Reactivity
    • Section 11: Toxicological Information
    • Section 12: Ecological Information
    • Section 13: Disposal Considerations
    • Section 14: Transport Information
    • Section 15: Regulatory Information
    • Section 16: Other Information

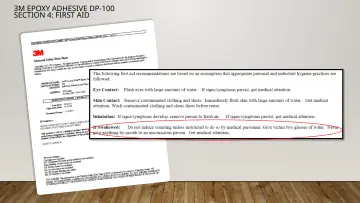

16. Slide 20

    3M EPOXY ADHESIVE DP-100

    • SECTION 4: FIRST AID

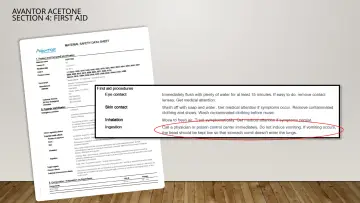

17. Slide 21

    AVANTOR ACETONE

    • SECTION 4: FIRST AID
18. Slide 22

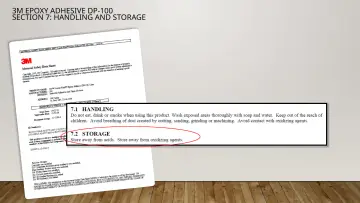

    3M EPOXY ADHESIVE DP-100

    • SECTION 7: HANDLING AND STORAGE

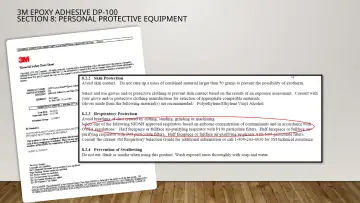

19. Slide 23

    3M EPOXY ADHESIVE DP-100

    • SECTION 8: PERSONAL PROTECTIVE EQUIPMENT
20. Slide 24
    • Questions?
