Focus Four: Fall Hazard Recognition

The words on each slide as the author wrote them, read from the file by software so they can be searched. Layout, pictures and tables are not shown here: the slides above and the download are the original.

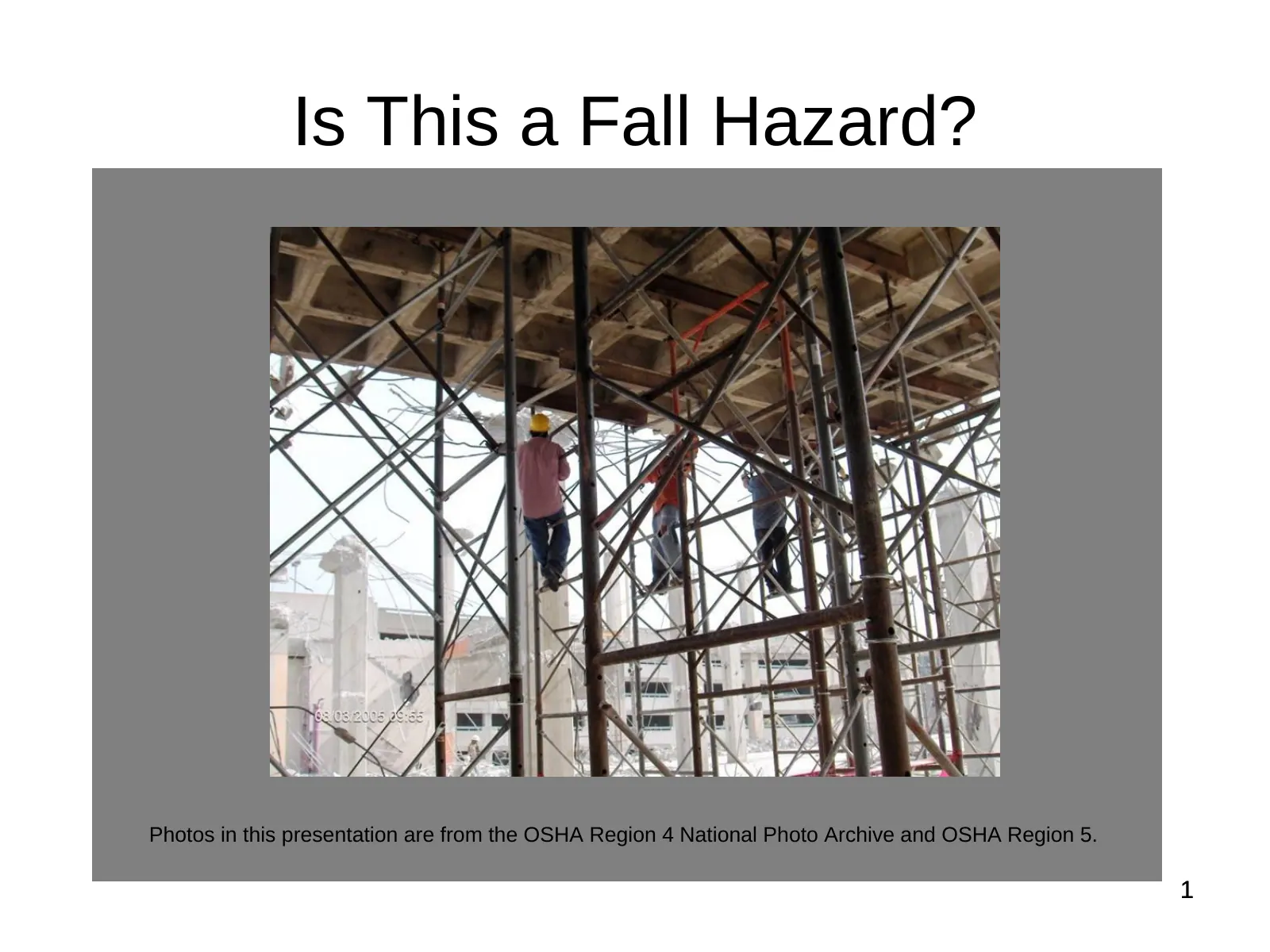

1. Slide 1

   Is This a Fall Hazard?

   • Photos in this presentation are from the OSHA Region 4 National Photo Archive and OSHA Region 5.
2. Slide 2

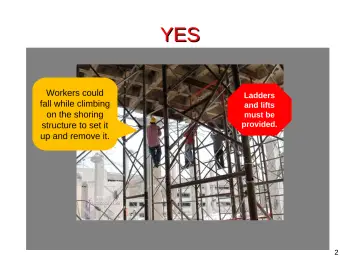

   YES

   • Workers could fall while climbing on the shoring structure to set it up and remove it.
   • Ladders and lifts must be provided.

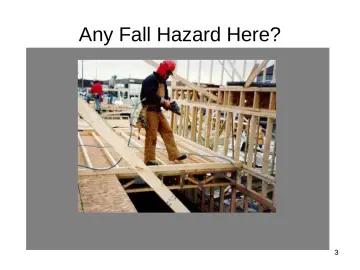

3. Slide 3

   Any Fall Hazard Here?

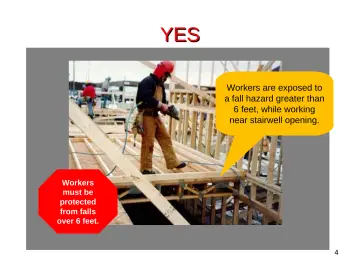

4. Slide 4

   YES

   • Workers are exposed to a fall hazard greater than
   • 6 feet, while working near stairwell opening.
   • Workers must be protected from falls over 6 feet.

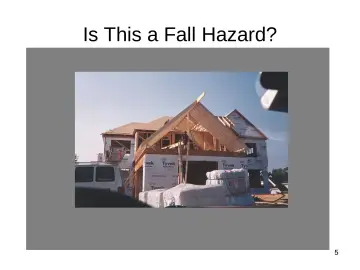

5. Slide 5

   Is This a Fall Hazard?

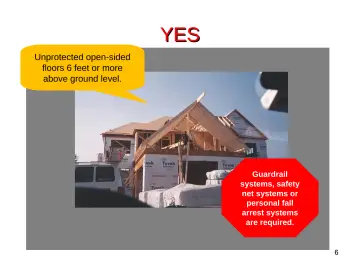

6. Slide 6

   YES

   • Unprotected open-sided floors 6 feet or more above ground level.
   • Guardrail systems, safety net systems or personal fall arrest systems are required.

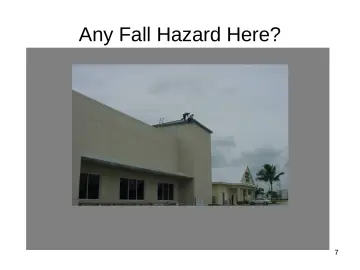

7. Slide 7

   Any Fall Hazard Here?

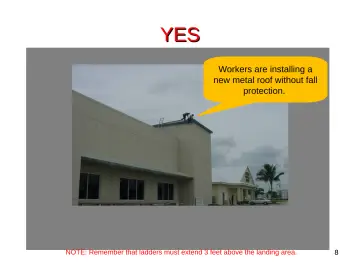

8. Slide 8

   YES

   • Workers are installing a new metal roof without fall protection.
   • NOTE: Remember that ladders must extend 3 feet above the landing area.

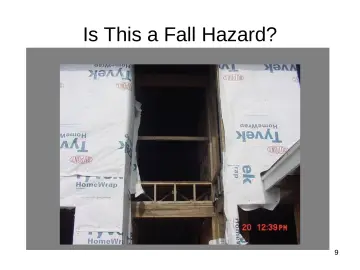

9. Slide 9

   Is This a Fall Hazard?

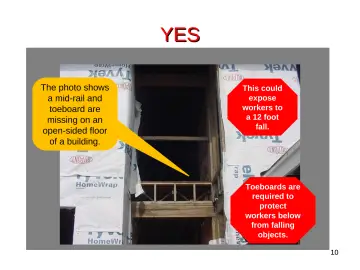

10. Slide 10

    YES

    • The photo shows a mid-rail and toeboard are missing on an open-sided floor of a building.
    • This could expose workers to a 12 foot fall.
    • Toeboards are required to protect workers below from falling objects.
11. Slide 11

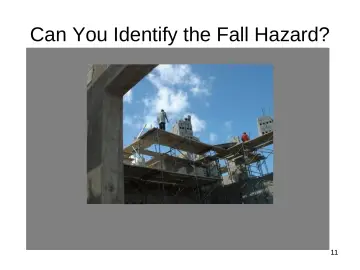

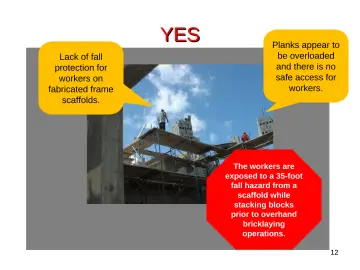

    Can You Identify the Fall Hazard?

12. Slide 12

    YES

    • Lack of fall protection for workers on fabricated frame scaffolds.
    • Planks appear to be overloaded and there is no safe access for workers.
    • The workers are exposed to a 35-foot fall hazard from a scaffold while stacking blocks prior to overhand bricklaying operations.
13. Slide 13

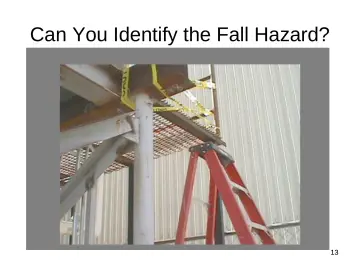

    Can You Identify the Fall Hazard?

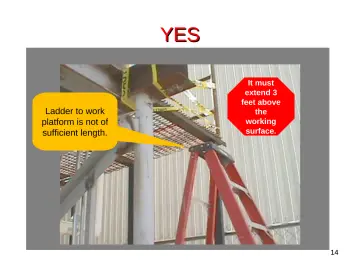

14. Slide 14

    YES

    • Ladder to work platform is not of sufficient length.
    • It must extend 3 feet above the working surface.

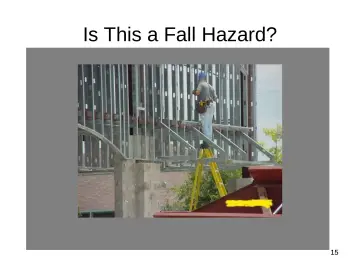

15. Slide 15

    Is This a Fall Hazard?

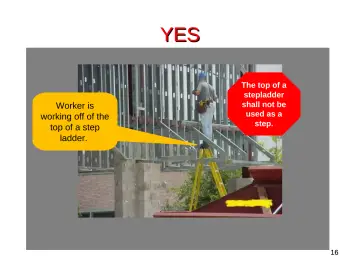

16. Slide 16

    YES

    • Worker is working off of the top of a step ladder.
    • The top of a stepladder shall not be used as a step.
17. Slide 17

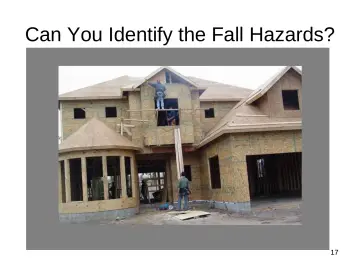

    Can You Identify the Fall Hazards?

18. Slide 18

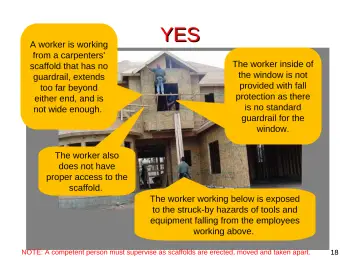

    YES

    • A worker is working from a carpenters' scaffold that has no guardrail, extends too far beyond either end, and is not wide enough.
    • The worker inside of the window is not provided with fall protection as there is no standard guardrail for the window.
    • The worker also does not have proper access to the scaffold.
    • The worker working below is exposed to the struck-by hazards of tools and equipment falling from the employees working above.
    • NOTE: A competent person must supervise as scaffolds are erected, moved and taken apart.
19. Slide 19

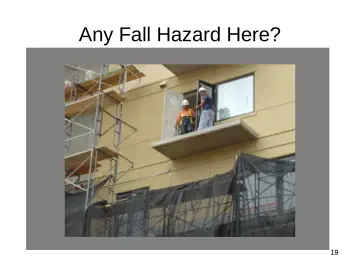

    Any Fall Hazard Here?

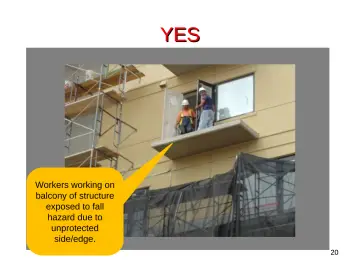

20. Slide 20

    YES

    • Workers working on balcony of structure exposed to fall hazard due to unprotected side/edge.
21. Slide 21

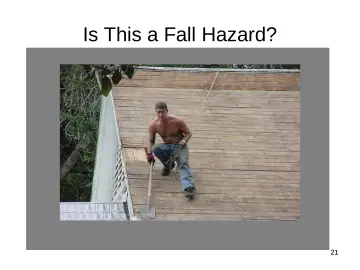

    Is This a Fall Hazard?

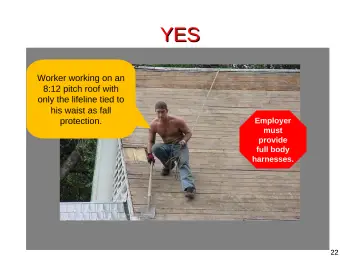

22. Slide 22

    YES

    • Worker working on an 8:12 pitch roof with only the lifeline tied to his waist as fall protection.
    • Employer must provide full body harnesses.
23. Slide 23

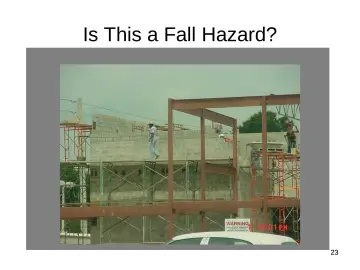

    Is This a Fall Hazard?

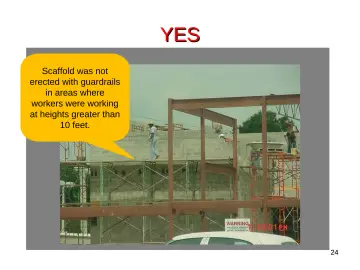

24. Slide 24

    YES

    • Scaffold was not erected with guardrails in areas where workers were working at heights greater than
    • 10 feet.
