Focus Four: Caught-In or -Between Hazard Recognition

The words on each slide as the author wrote them, read from the file by software so they can be searched. Layout, pictures and tables are not shown here: the slides above and the download are the original.

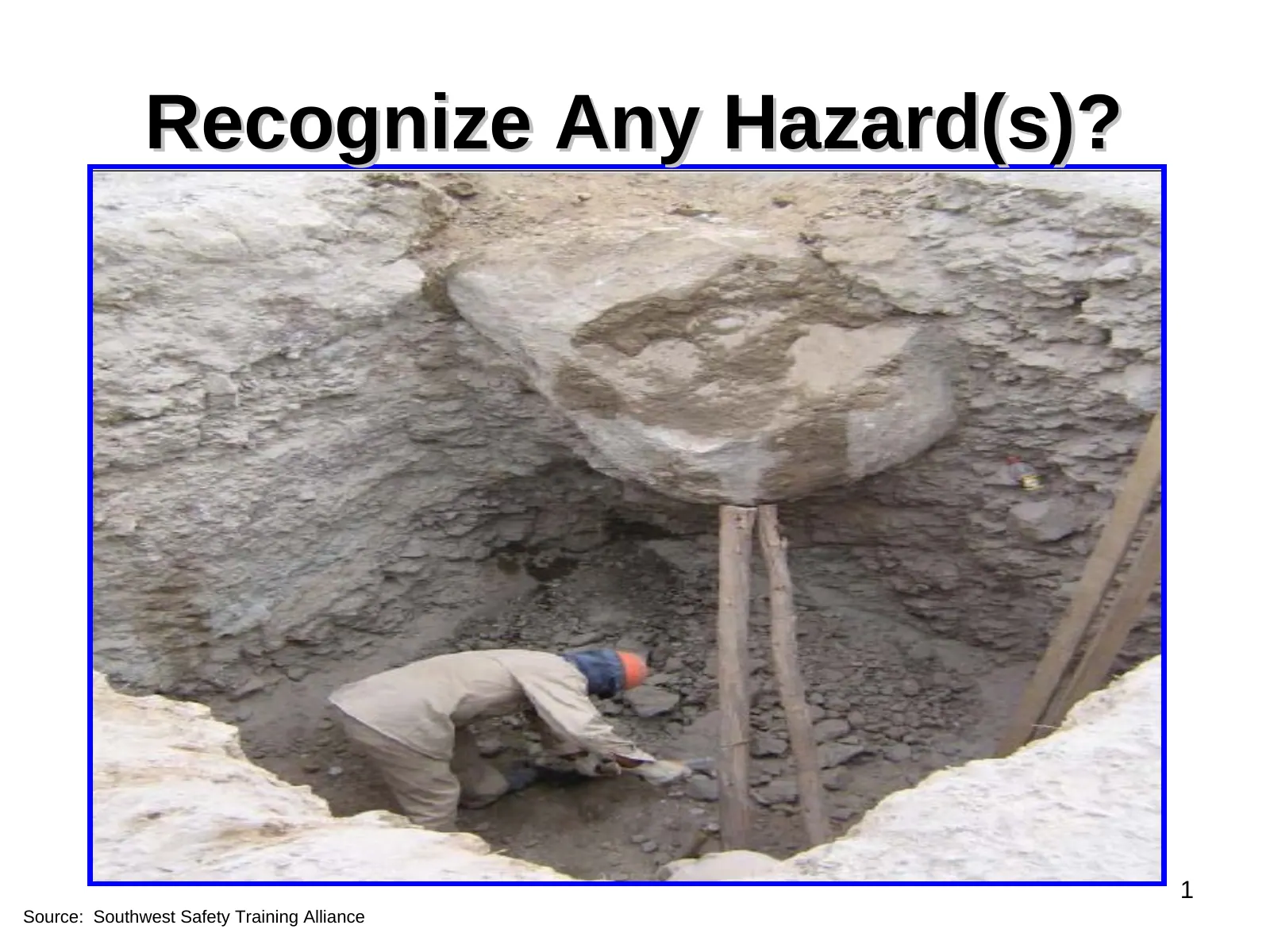

1. Slide 1

   Recognize Any Hazard(s)?

   • Source: Southwest Safety Training Alliance
2. Slide 2

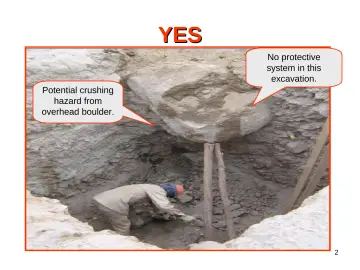

   YES

   • No protective system in this excavation.
   • Potential crushing hazard from overhead boulder.

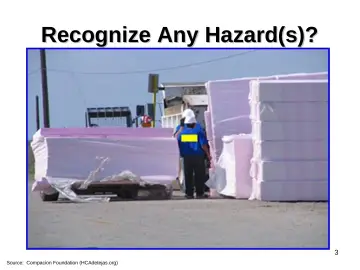

3. Slide 3

   Recognize Any Hazard(s)?

   • Source: Compacion Foundation (HCAdetejas.org)

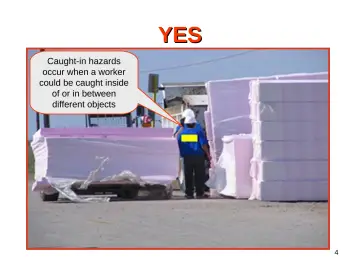

4. Slide 4

   YES

   • Caught-in hazards occur when a worker could be caught inside of or in between different objects
5. Slide 5

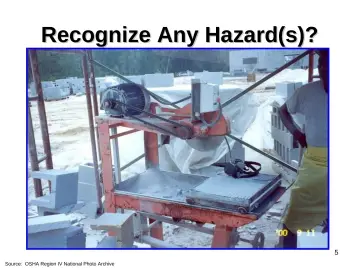

   Recognize Any Hazard(s)?

   • Source: OSHA Region IV National Photo Archive

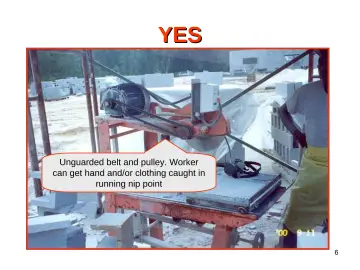

6. Slide 6

   YES

   • Unguarded belt and pulley. Worker can get hand and/or clothing caught in running nip point
7. Slide 7

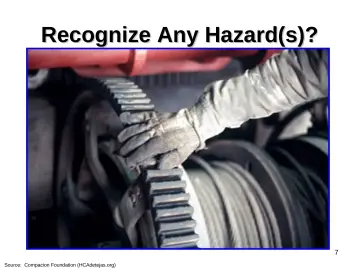

   Recognize Any Hazard(s)?

   • Source: Compacion Foundation (HCAdetejas.org)

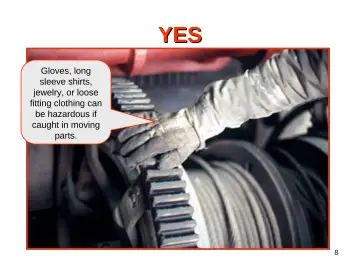

8. Slide 8

   YES

   • Gloves, long sleeve shirts, jewelry, or loose fitting clothing can be hazardous if caught in moving parts.

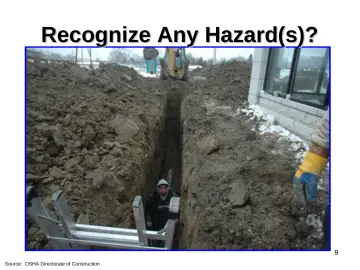

9. Slide 9

   Recognize Any Hazard(s)?

   • Source: OSHA Directorate of Construction

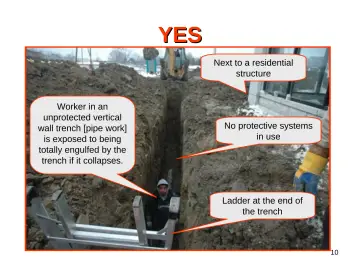

10. Slide 10

    YES

    • Next to a residential structure
    • Worker in an unprotected vertical wall trench [pipe work] is exposed to being totally engulfed by the trench if it collapses.
    • No protective systems in use
    • Ladder at the end of the trench
11. Slide 11

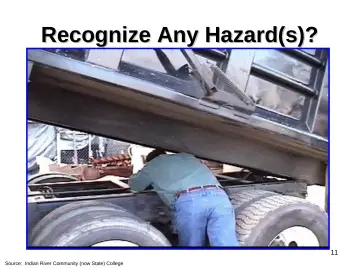

    Recognize Any Hazard(s)?

    • Source: Indian River Community (now State) College
12. Slide 12

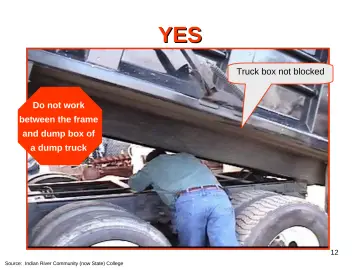

    YES

    • Truck box not blocked
    • Do not work
    • between the frame
    • and dump box of
    • a dump truck
    • Source: Indian River Community (now State) College

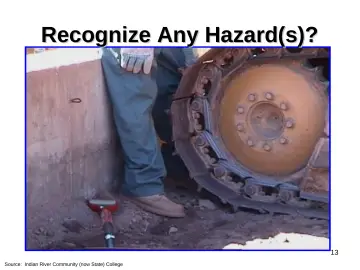

13. Slide 13

    Recognize Any Hazard(s)?

    • Source: Indian River Community (now State) College
14. Slide 14

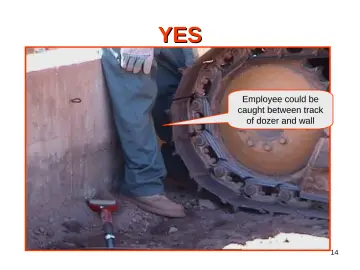

    YES

    • Employee could be caught between track of dozer and wall
15. Slide 15

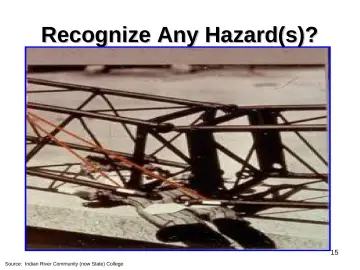

    Recognize Any Hazard(s)?

    • Source: Indian River Community (now State) College
16. Slide 16

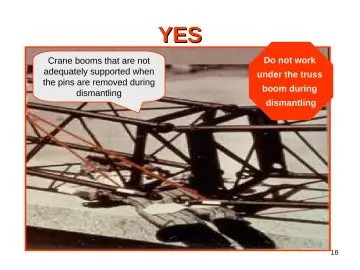

    YES

    • Crane booms that are not adequately supported when the pins are removed during dismantling
    • Do not work
    • under the truss
    • boom during
    • dismantling
17. Slide 17

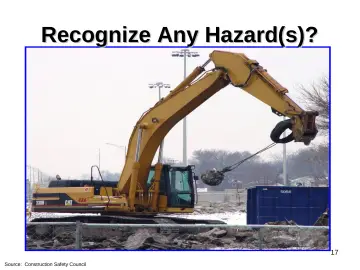

    Recognize Any Hazard(s)?

    • Source: Construction Safety Council
18. Slide 18

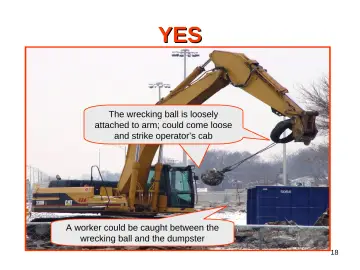

    YES

    • The wrecking ball is loosely attached to arm; could come loose and strike operator’s cab
    • A worker could be caught between the wrecking ball and the dumpster

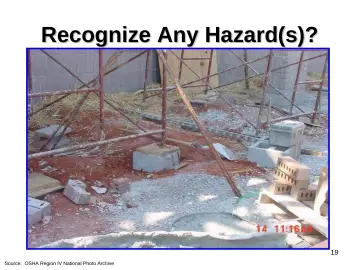

19. Slide 19

    Recognize Any Hazard(s)?

    • Source: OSHA Region IV National Photo Archive

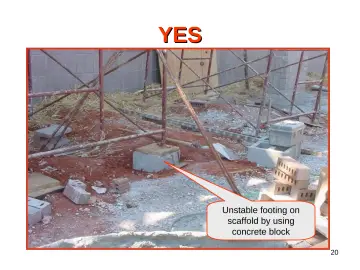

20. Slide 20

    YES

    • Unstable footing on scaffold by using concrete block
